Insignia MT5305 - 4 Chassis Layout and Overall Wiring Diagrams; Boards and Chassis Layout



- 12 -
/&'796HUYLFH0DQXDO 
16($6HUYLFH0DQXDO

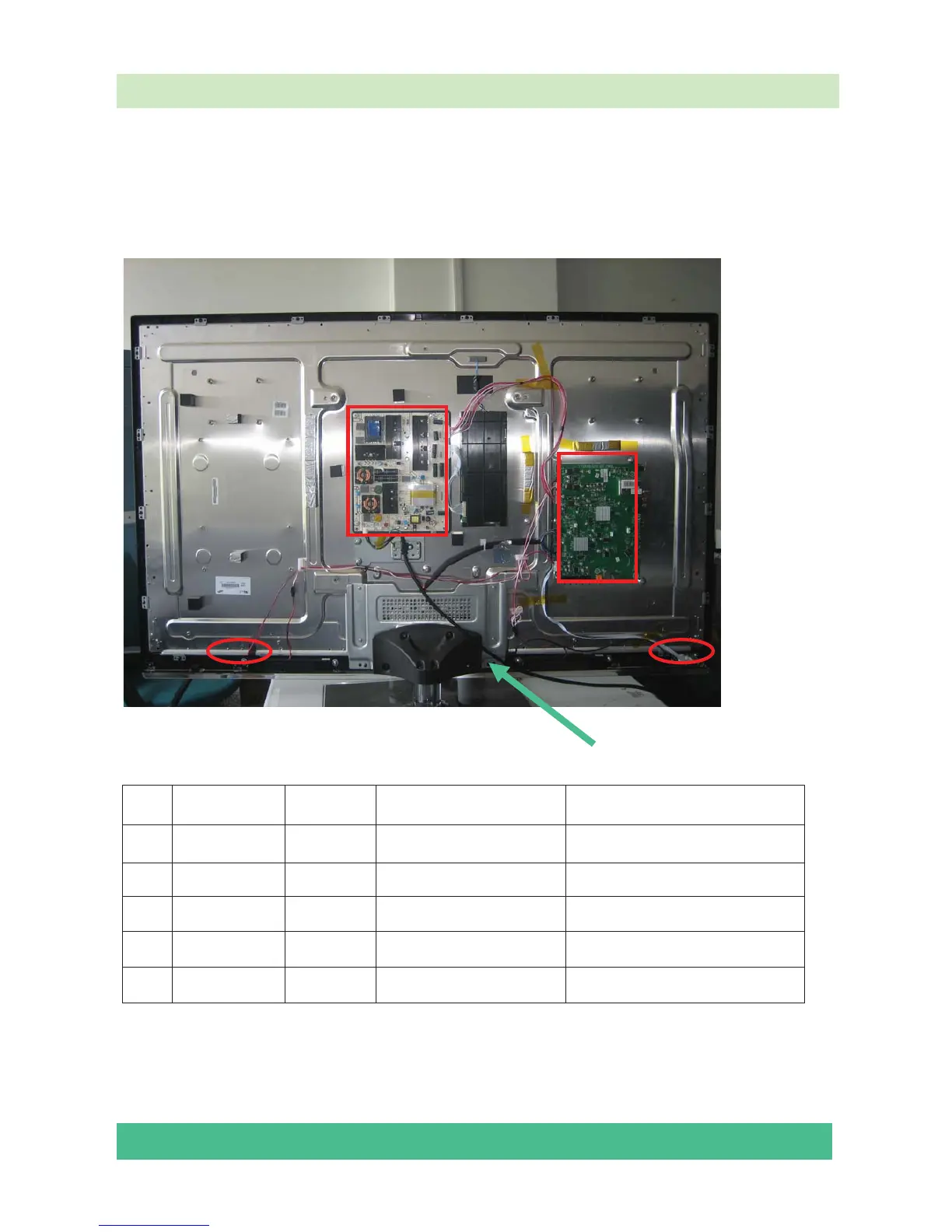

4. Chassis Layout and Overall Wiring Diagrams
Boards and Chassis Layout
16($
No Description Part No. Type/Model PCB/ Model
(1)
Main Board 123834 RSAG2.908.1794\ROH RSAG7.820.2029\VER.C\ROH
(2)
Power Board 125676 RSAG2.908.1912-1\ROH RSAG7.820.2194\VER.C\ROH
(3)
Led Board 123069 RSAG2.908.1731\ROH 40RSAG7.820.1968\VER.A\ROH
(4)
Keypad PCA 125911 RSAG2.908.1724-8\ROH 15RSAG7.820.1959\VER.B\ROH
(5)
IR Board 121225 RSAG2.908.1566-3\ROH 30RSAG7.820.1725\VER.C\ROH
(1)
(2)
(
4
)
(
5
)
(
3
)
