NS-24D420NA16/NS-24D420MX16 24" 1080p 60Hz, LED TV
www.insigniaproducts.com

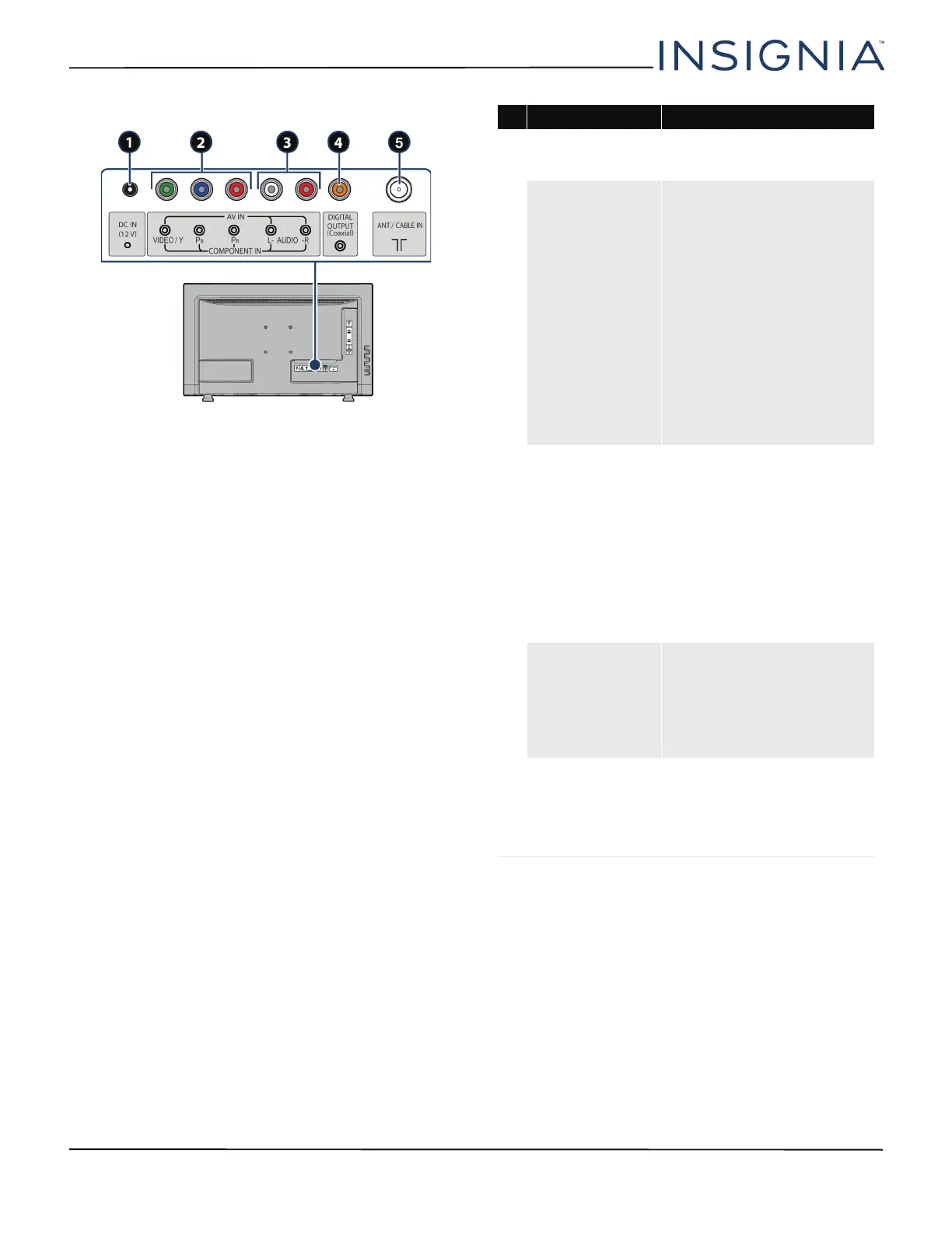

Back jacks
# Item Description
1 DC IN (12 V)
Connect the power adapter to
this jack. See Connecting power
on page 31.
2
VIDEO / Y, PB, PR
OR
VIDEO / Y
The component video and AV
jacks are shared. You can
connect only one component
video or AV device at a time.
Connect the video for a
component video device to the
VIDEO / Y, P
B, and PR jacks. For
more information, see
Component video (better) on
page 15, 20, or 23.
OR
Connect the video for an AV
device to the VIDEO / Y jack. For
more information, see AV
(composite video) (good) on
page 16, 21, or 24.
3 L and R AUDIO
Connect the audio for a
component video device to
these jacks. For more
information, see Component
video (better) on page 15, 20,
or 23.
OR
Connect the audio for an AV
device to these jacks. For more
information, see AV (composite
video) (good) on page 16, 21,
or 24.
4
DIGITAL OUTPUT
(Coaxial)
Connect a sound bar, digital
speaker system, or home
theater system to this jack to
listen to TV audio through
external speakers. For more
information, see Digital audio
on page 28.
5 ANT / CABLE IN
Connect an antenna or cable TV
to this jack. For more
information, see Coaxial (good)
on page 17 or Connecting an
antenna or cable TV (no box) on
page 18.
