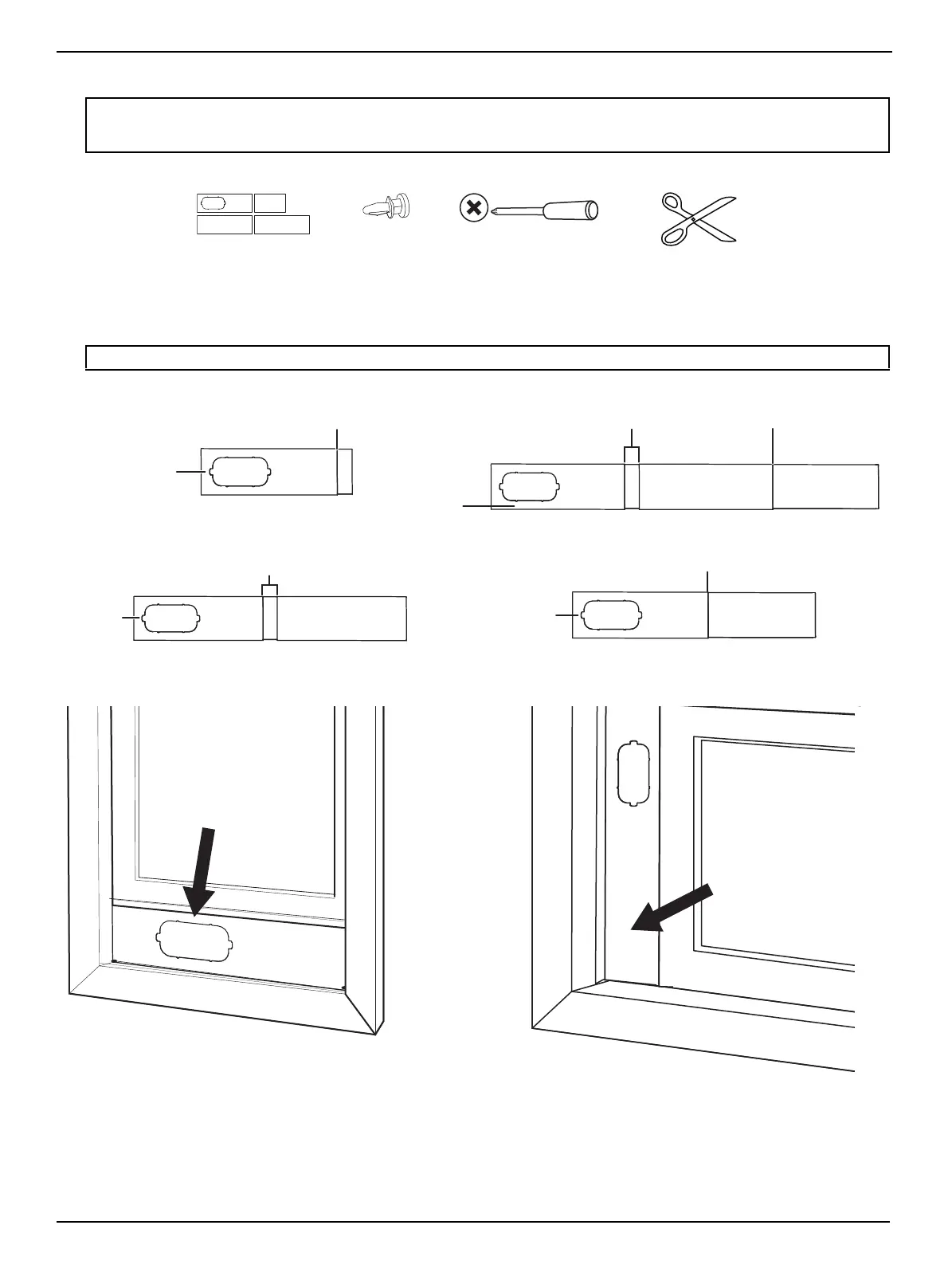

STEP 2: Assembling the adjustable window slides
You need
1 Select the window slides that fit your window. You may need to trim the slides to fit your window.
2 After you adjust the slides to the correct length, use bolts to secure them.
Note:
• Your air conditioner comes with three slides (A, B, and C). Depending on the size of the window, you may need two or more slides.
• You may need to cut a slide to fit your window. Double-check the length before you cut.
Note: You must use slide A because it has the opening for the exhaust hose.
Bolt (optional)
(3)
Phillips screwdriver
(not included)
Window slides
Scissors or knife
(not included)
Slides A and B
Slides A, B, and C Slides A and D
Slides A, B, C, and D
Bolt
Slide A
Slide A
Bolts
Slide A
Bolts Bolt
Slider A
Bolt
Slide A
Hung window Sliding window
Slide A
