16-Cycle 4.4 Cu. Ft. Front Load Electric Dryer
INSTALLATION INSTRUCTIONS
Installing side-by-side, or in an alcove, closet, or other recessed area

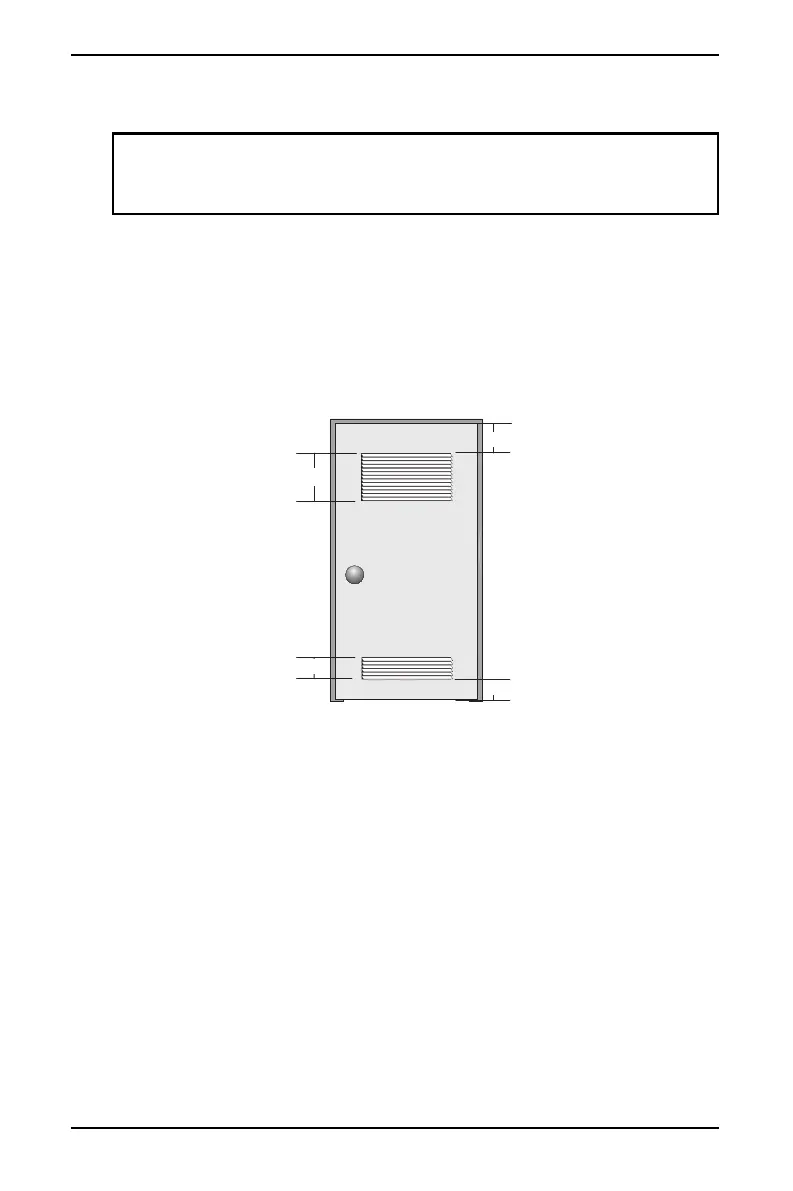

If you install your dryer in an alcove, closet, or wall insert/recessed, the front of the
closet must have two unobstructed air openings for a combined minimum total
area of 72 sq.in. (465 sq. cm) with a minimum clearance of 3 in. (7.6 cm) at the top
and bottom. A slatted door with equivalent space clearance is acceptable.
Minimum clearances between your dryer and adjacent walls or other surfaces are:
• Either side: 1 in. (2.5 cm)
• Rear: 2 in. (5.1 cm)
• Top: 2 in. (5.1 cm)
• Front: 2 in. (5.1 cm)
WARNING:
No other fuel-burning appliance should be installed in the same closet as the
dryer.
48 in.² (310 cm²)
24 in.² (155 cm²)
3 in. (7.6 cm)
3 in. (7.6 cm)
