16-Cycle 4.4 Cu. Ft. Front Load Electric Dryer
INSTALLATION INSTRUCTIONS
• If a power cord is not used and the electric dryer is to be permanently wired,
this appliance must be connected to a grounded metal, permanent wiring
system, or an equipment-grounding conductor must be run with the circuit
conductors and connected to the equipment-grounding terminal or lead on
the appliance.
Installing your dryer

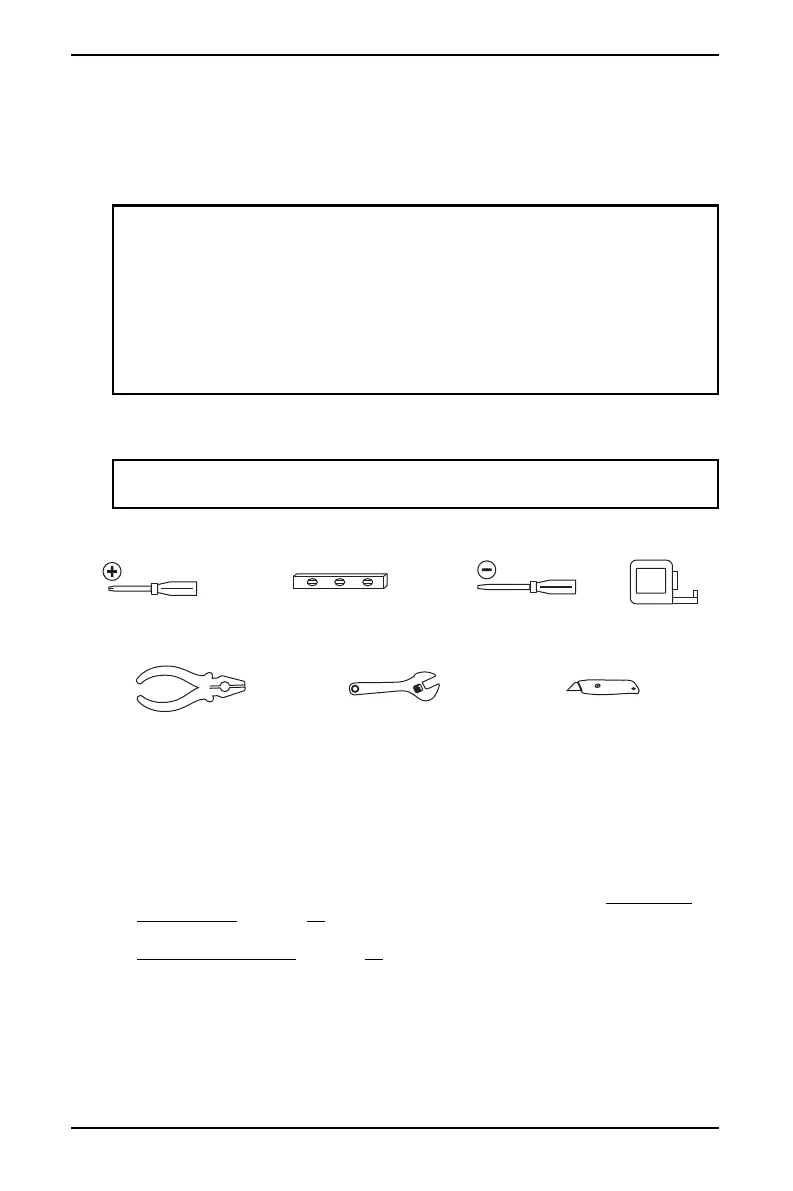

Tools you will need
Materials you will need
• 3- or 4-prong (dependent on owner’s house) electric power cord
Before you start
Before you start installing your dryer, make sure that:
• The location you selected has a grounded electrical outlet. See Grounding
requirements on page 18.
• For U.S. models, you have the correct type power cord (not included). See
Electric requirements
on page 17.
Note: For Canadian models, the power cord comes pre-installed.
WARNING:
• Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or service
representative or personnel, if you are in doubt as to whether the appliance
is properly grounded.
• Certain internal parts are intentionally not grounded and may present a risk
of electric shock only during servicing. Service Personnel - Do not contact
the following parts while the appliance is energized: main motor and
cooling fan (located on blower housing).
Important: We recommend that you use a qualified installer to install your
dryer.
Pliers
Phillips screwdriver
Level
Adjustable wrench that opens
to 1" (2.5 cm)
Cutting knife
Flat-head screwdriver
Tape measure
To Next Page
