Insignia NS-HF2005 User Manual

www.insigniaproducts.com
7
NS-HF2005

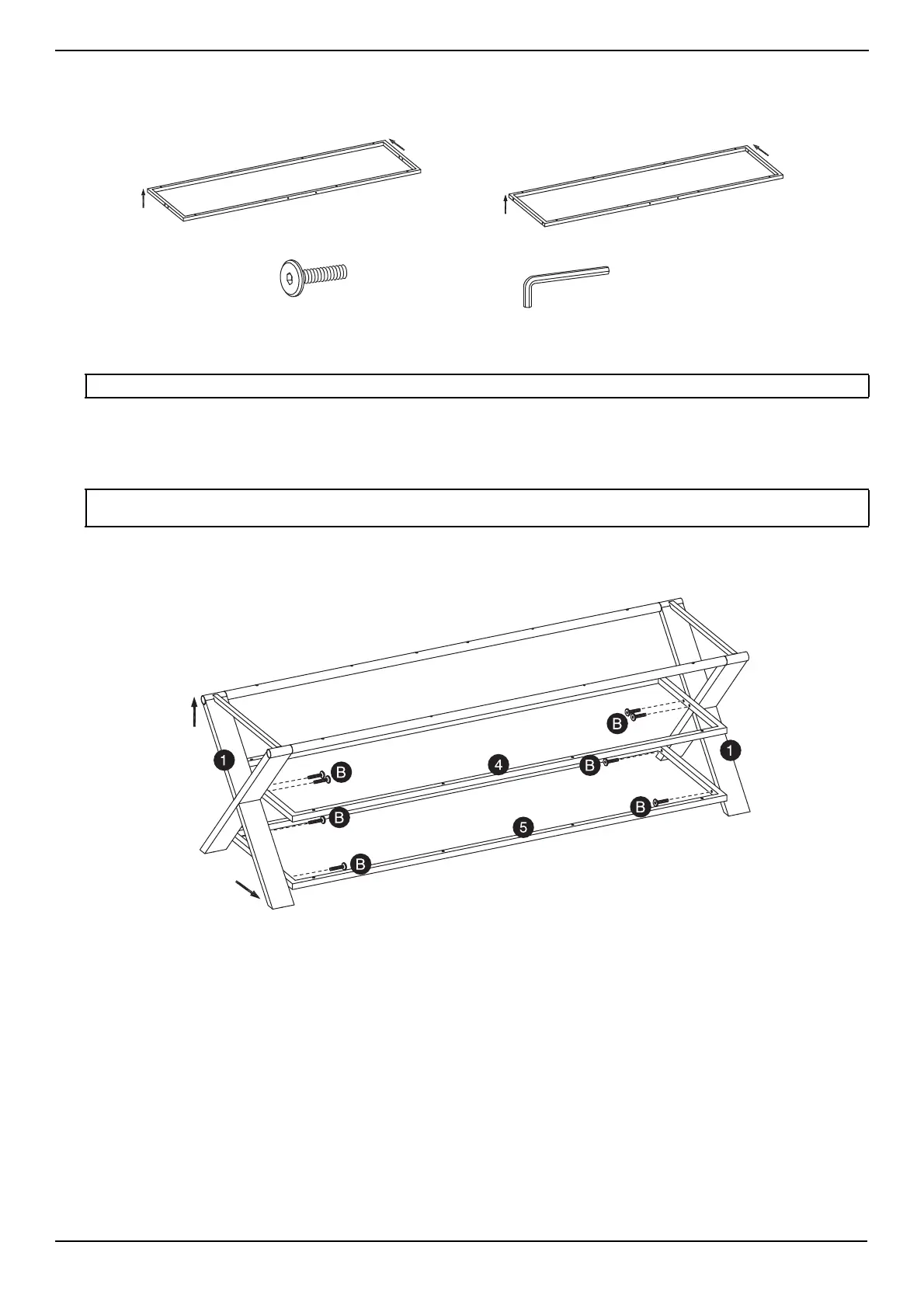

STEP 3 - Install the middle and lower shelf frames.
You’ll need
1 Make sure that the holes on the frames are facing up.
2 Align the holes in the middle frame (4) with the holes in the side frames, then insert two 6 × 28 × 16 mm Allen bolts (B)
through the holes on each end of the middle frame and into the side frames. Use the Allen wrench (E) to tighten the
bolts. Do not fully tighten the bolts.
3 Align the holes in the lower frame (5) with the holes in the side frames, then insert two 6 × 28 × 16 mm Allen bolts (B)
through the holes on each end of the lower frame and into the side frames. Use the Allen wrench (E) to tighten the
bolts. Do not fully tighten the bolts.
CAUTION: Do not fully tighten the bolts until the end of step 6.
Note: The middle frame (4) has holes near the center of the frame sides. The lower frame (5) has holes near the outer edges of the
frame.
5 Lower frame (1)
B 6 × 28 × 16 mm Allen bolt
(8)
4 Middle frame (1)
E Allen wrench (1)
Top
F
r
o
n
t
F
r
o
n
t
F
r
o
n
t
To p
To p
F
r
o
n
t
