INSTALLATION INSTRUCTIONS
2 Connect all the pipe joints and tighten with a wrench.
3 Apply a pipe joint compound or about 1.5 in. wraps of teflon tape over all
threaded connections. The pipe joint compound must be resistant to the
actions of any liquefied petroleum gas.
4 Connect the gas supply to your dryer.
5 Securely tighten the gas line fitting over the threads.
6 Turn on the gas supply.
Note: An additional fitting is required to connect the 3/4 in. (1.9 cm) female
thread end of a flexible connector to the 3/8 in. (1 cm) male threaded end on
the dryer. Use only new AGA or CSA certified gas supply line with SS flexible
connectors. The National Fuel Gas Code requires that an accessible, approved
manual gas shutoff valve be installed within 6 in. (15 cm) of your dryer.
WARNING:
All gas installations of the dryer must be equipped with Manual Shut-Off
valve.
Uncoated copper tubing will corrode when subjected to natural gas, causing
gas leaks. Use ONLY black iron, stainless steel, or plastic-coated brass piping
for gas supply.
Check all gas connections for leaks using a soap solution.
If bubbles appear, tighten the connections and recheck. DO NOT use an
open flame to check for gas leaks.

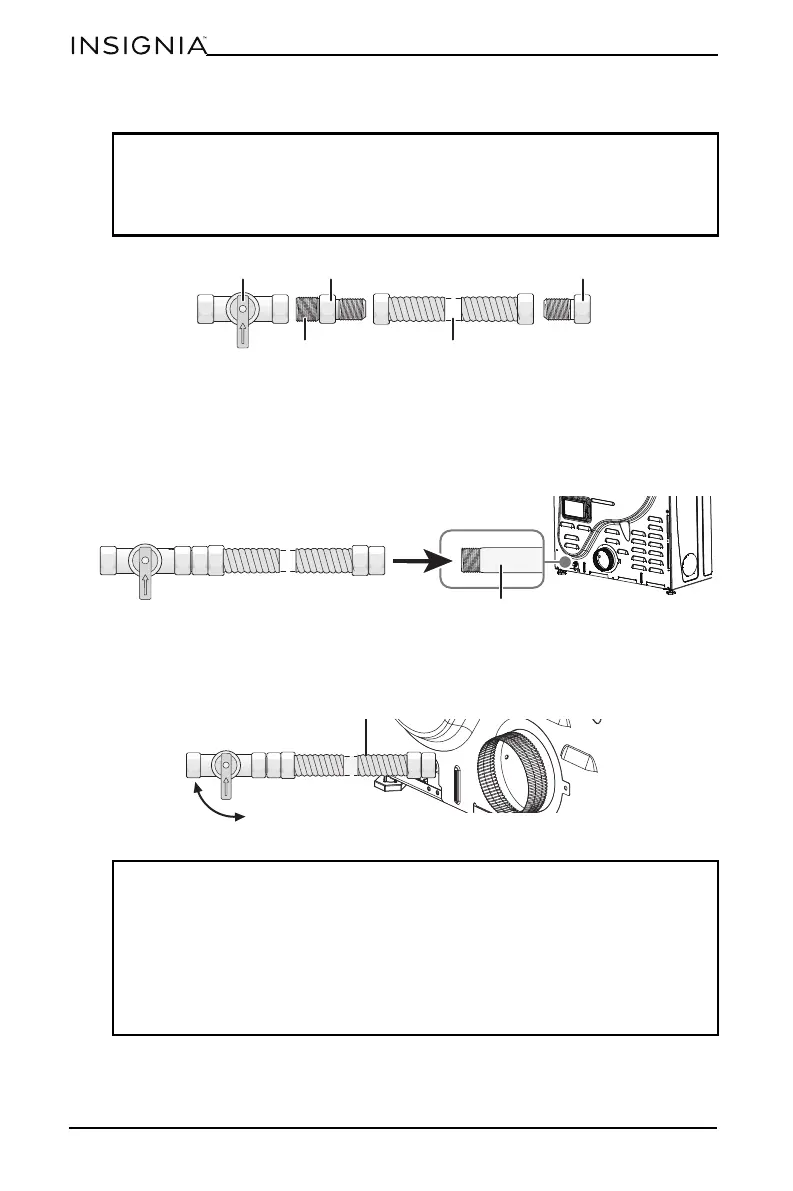

Nipple Flexible connector
Flare unionFlare unionManual shutoff valve
Inlet pipe on back of dryer
Open
