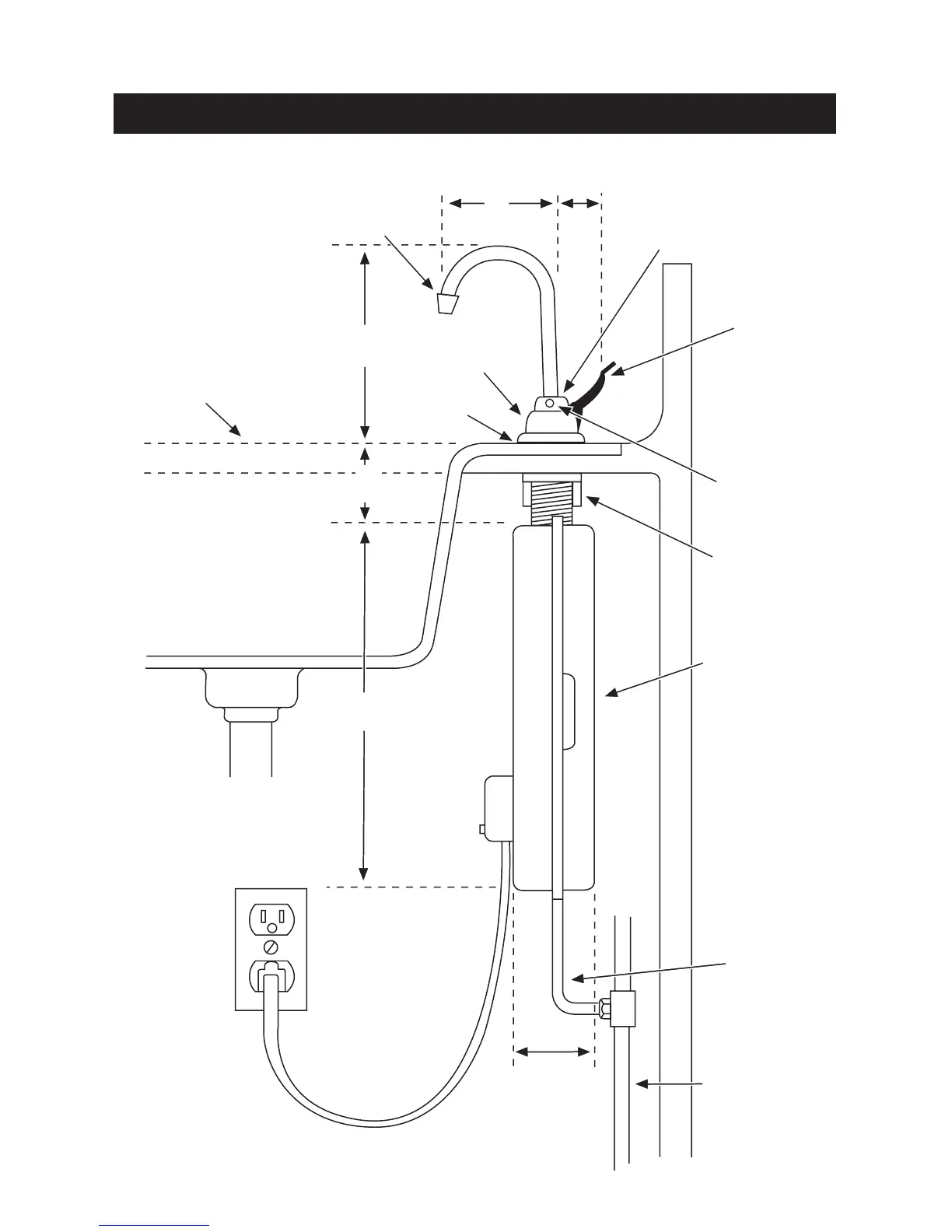

InSinkErator Model Hot1 - Page 4

Spout
Spout Holder
Maximum
Countertop
Thickness
for Mounting
3 Wire
Power Cord
30" Long
(76cm)
Slotted
Set Screw
(Opposite Side)
Valve
Lever
Rubber
Gasket
Mounting
Nut
Wing
Nut
¼" Copper Tube
16" Long
(40.6cm)
Cold Water Line
Width of
Unit 5¼"
(13.3cm)
6"
(15.2cm)
2"
(5.1cm)
3"
(7.6cm)
11¾"
(28.9cm)
4"
(10.2cm)
2½"
(6.4cm)
8
2¼ "
(6.5cm)
9
16
DIMENSIONS
4
