FINAL ADJUSTMENTS AFTER ASSEMBLY
FINAL ADJUSTMENT: (if needed)
Below the seat you will find the weight selector. Grab the weight selector handle and pull the spring
loaded pin. Slide the weight selector from position one to fifteen. The rollers should move freely. If the
weight selector rollers bind between positions 1
-8, lift the wooden platform and adjust the two Front
Rubber Bumpers up slightly. This will ease the pressure on the rollers and allow the weight selector
mechanism to slide freely.
If the Weight Selector Rollers bind between positions 8-15, thread the press arm stop completely into the
frame. This will provide slack in the cable and ease the pressure on the Weight Selector Rollers. If the
Weight Selector Rollers are still binding, loosen nut #1 in the Macro Cable Adjustment drawing above.
Next, adjust nut #2 counter clockwise until the Weight Selector Rollers move freely. Re
-tighten nut #1.
NOTE:
The cable on this gym will stretch over time. There are two places to eliminate cable slack. A large
amount of cable slack can be removed by adjusting the pulley upward on the Macro Cable Adjustment.
Start by loosening nut (#1) show
n in the Macro Cable Adjustment drawing above. Next, using a wrench,
turn nut (#2) clockwise until adequate cable slack has been removed. Finish by tightening nut #1 back
up.
To eliminate a small amount of cable slack, adjust the Press Arm Stop counter clockwise. Wrench tighten
Jam Nut.

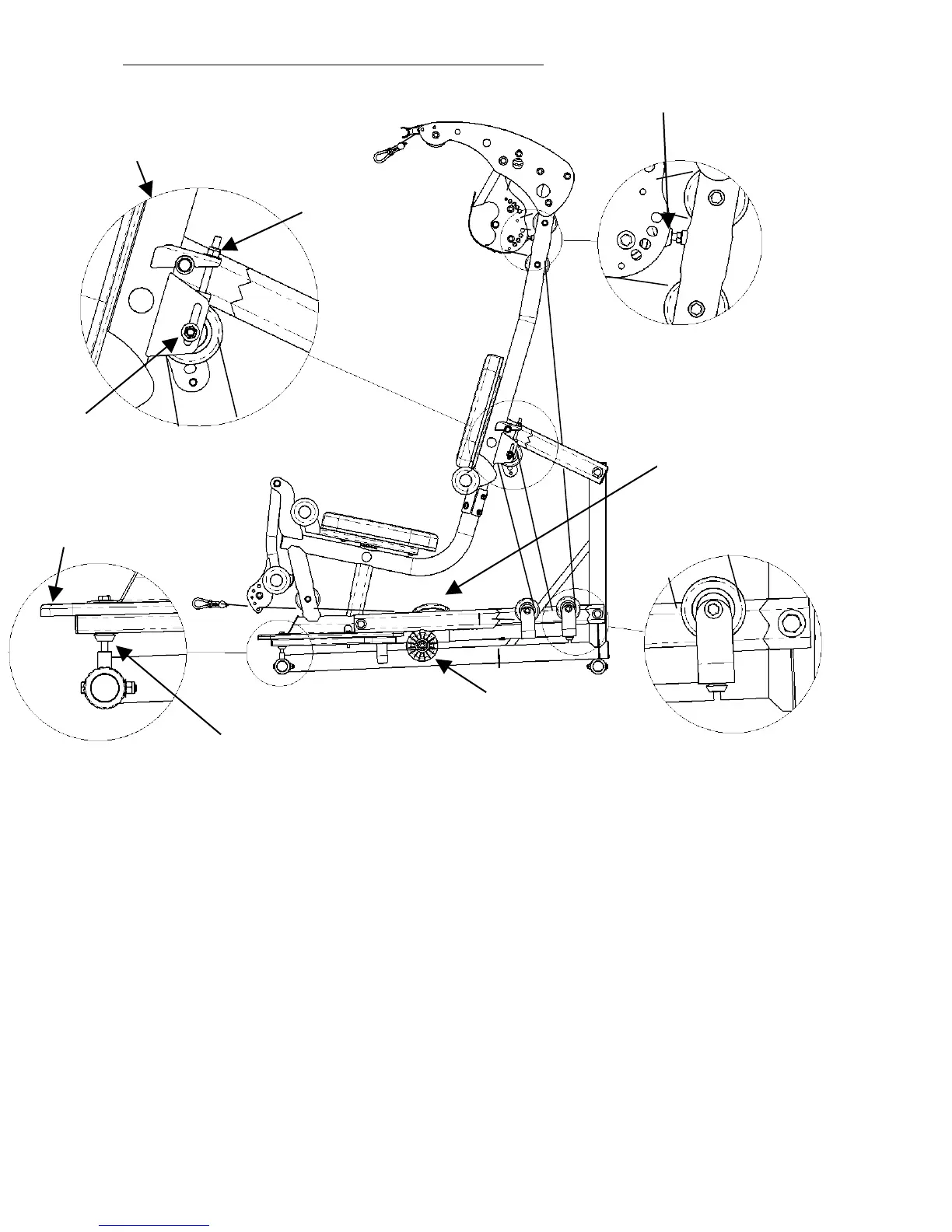

Wooden Platform
Front Rubber Bumper
Weight Selector Rollers
Press Arm Stop
Macro Cable Adjustment
Nut #1
Nut #2
Weight
Selector
Handle
081711
Page 21
