Inspire M3 User Manual

STEP 18
STEP 20
1 – Cable Adapter
Floating Pulley
Bracket Assembly
Pulley 8: 1 – 3 ½” Pulley
1 – 2” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut
Pulley 12
Pulley 9: 1 – 3 ½” Pulley
1 – 3 ¾” Hex Bolt
2 – 1” Step Spacers
1 – 3/8” Lock Nut
1 – 3 ½” Pulley
1 – 1 ¾” Hex Bolt
2 – 3/8” Flat Washers
Pulley 11 1 – 3/8” Lock Nut
Pulley 10
2 – 3 ½” Pulleys
1 – 3” Hex Bolt
Pulley 8 2 – 3/8” Flat Washers
Pulley 9 1 – 3/8” Lock Nut

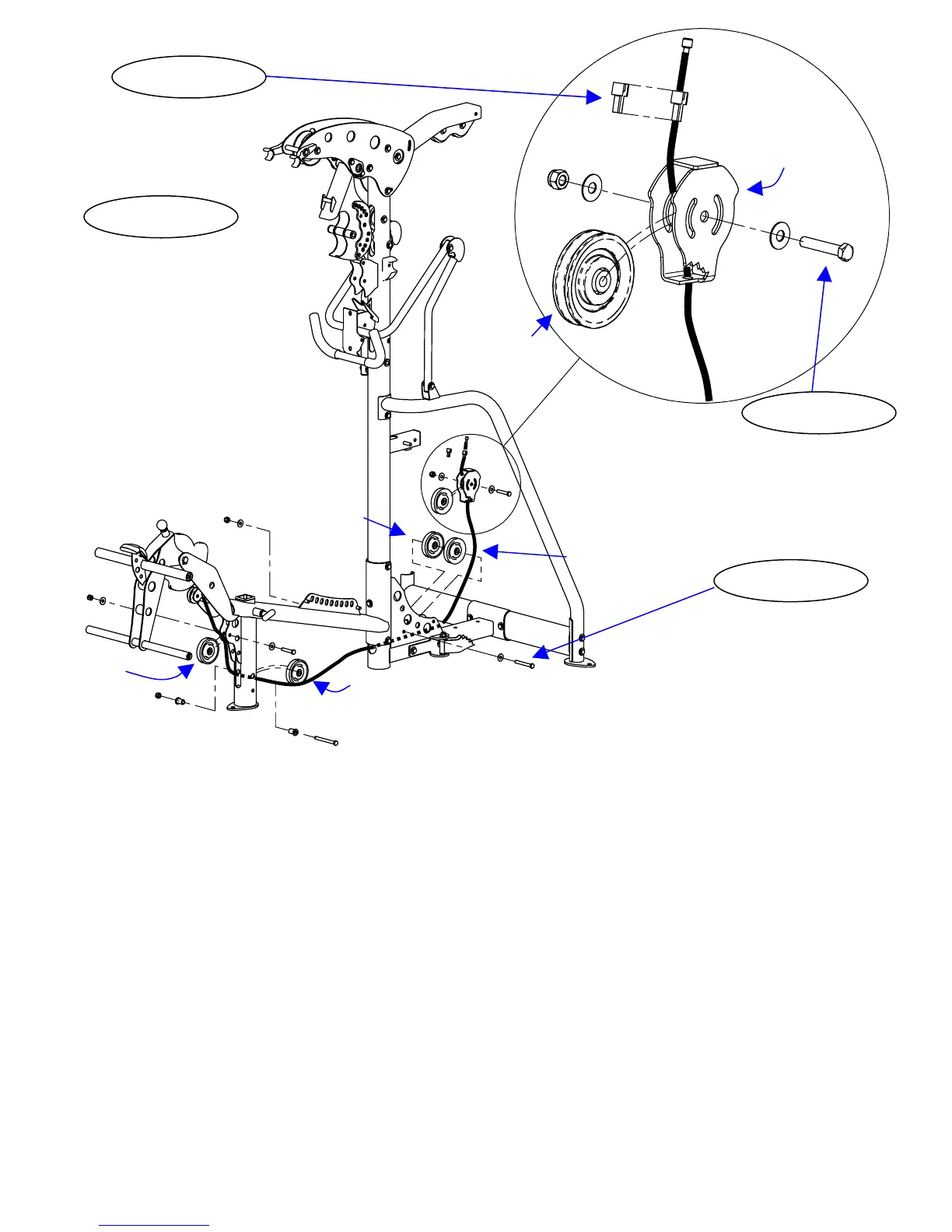

Step 17: Attach Pulley 8 and Pulley 9 to Seat Base Frame as Lower Cable is routed.
Secure Pulley 8 using: One (3 ½” Pulley) One (3/8” x 2” Hex Bolt)
Two (3/8” Flat Washers) One (3/8” Lock Nut)
Secure Pulley 9 using: One (3 ½” Pulley) One (3/8” x 3 ¾” Hex Bolt)
Two (1” Step Spacers) One (3/8” Lock Nut)
Step 18: Attach Pulleys 10 & 11 to Main upright, being sure to thread lower cable under
pulley 10 as cable is routed. Secure Pulleys 10 and 11 side by side using:
Two (3 ½” Pulley) One (3/8” x 3” Hex Bolt)
Two (3/8” Flat Washers) One (3/8” Lock Nut)
NOTE: Wrench Tighten pulleys 8 – 11 Now
Step 19: Attach Floating Pulley Bracket Assembly to Lower Cable using: One (Cable Adapter)
Step 20: Attach Pulley 12 to Floating Pulley Bracket Assembly using:
One (3 ½” Pulley) One (3/8” x 1 ¾” Hex Bolt)
Two (3/8” Flat Washers) One (3/8” Lock Nut)
NOTE: Wrench Tighten Now
NOTE: Lay Floating Pulley Bracket Assembly on the floor until step 23.
Page 17
STEP 17
STEP 19

Inspire M3 Specifications

General

Resistance Type	Weight Stack
Weight Capacity	300 lbs
Color	Black
Frame	Steel
Finish	Powder coat
Material	Steel
Included Accessories	Lat Bar
Exercises	Chest Press, Incline Press, Decline Press, Lat Pulldown, Seated Row, Leg Extension, Leg Curl, Preacher Curl, Ab Crunch
Press Arm	Adjustable
