Inspire M3 - Page 28

Press Arm Mount
1 – ¼” x 3/8” Phillips Screw Press Arm Cover Plate
1 – ¼” Flat Washer
Press Arm
1 – ½” x 6” Hex Bolt
2 – ½” Flat Washers
1 – ½” Lock Nut

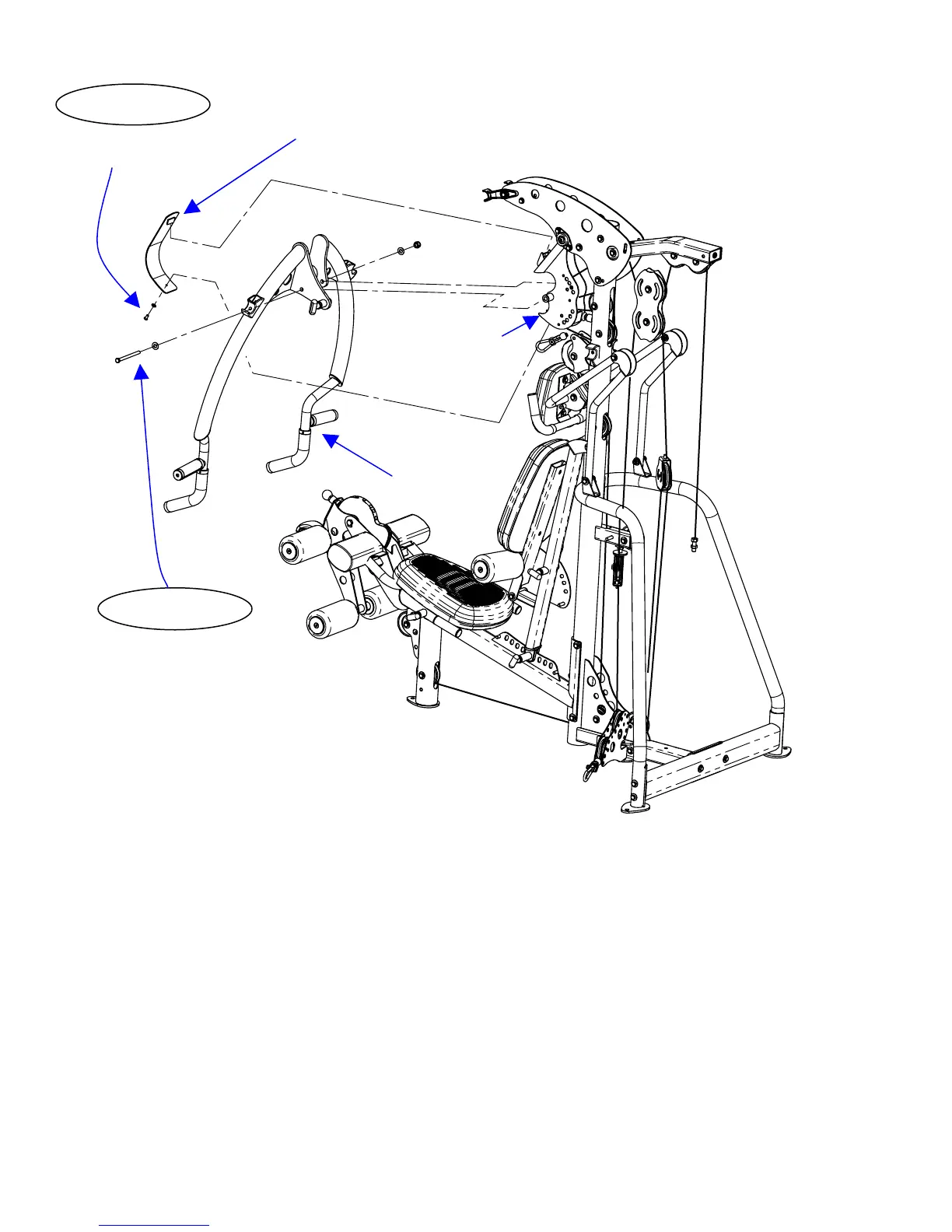

Step 41: Attach Press Arm to Press Arm Mount using: One (1/2” x 6” Hex Bolt)
Two (1/2” Flat Washers)
NOTE: Wrench Tighten Now One (1/2” Lock Nut)
Step 42: Attach Press Arm Plate to Press Arm Mount using: One (1/4” x 3/8” Phillips Screw)
One (1/4” Flat Washer)
NOTE: Tighten with Phillips Screw Driver
Page 25
STEP 41
STEP 42
