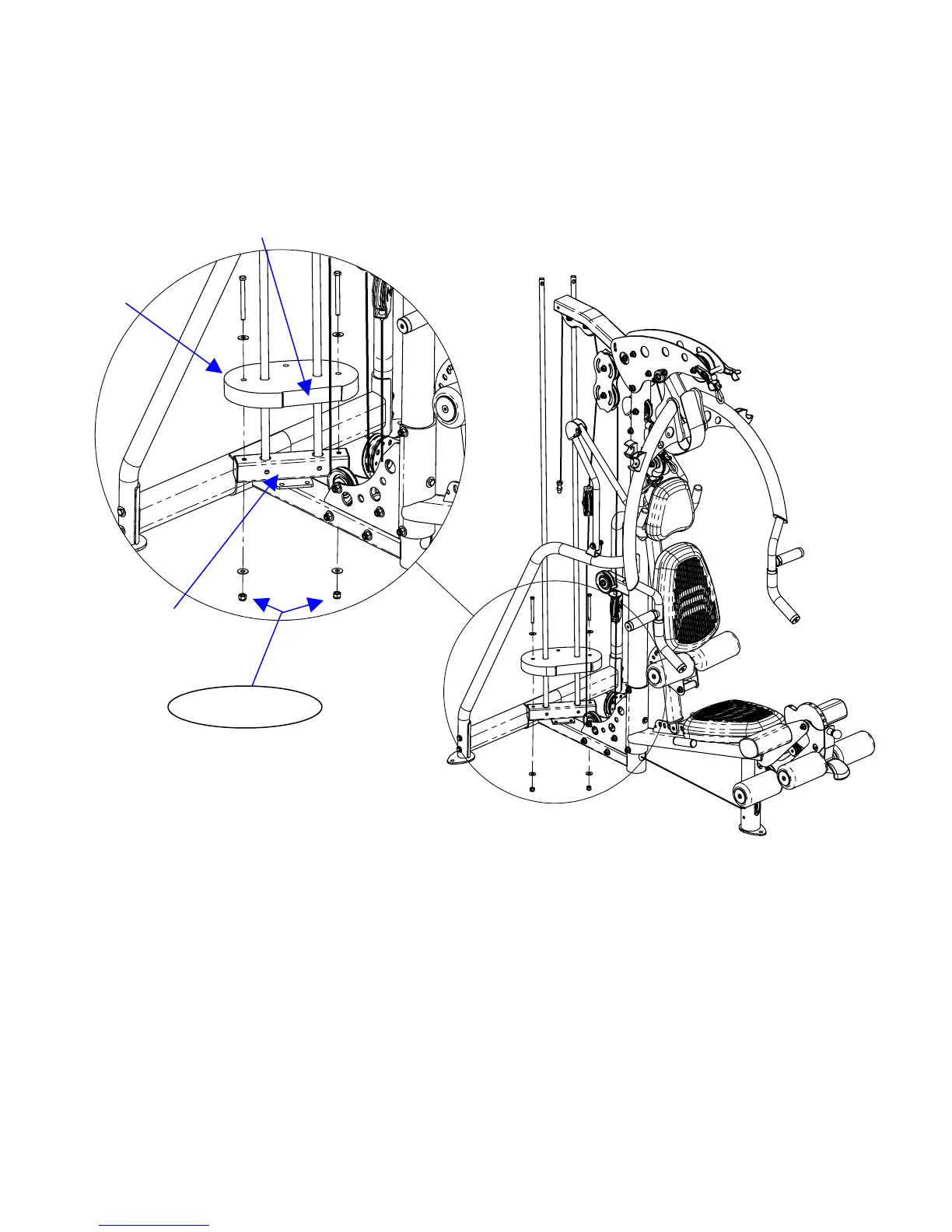

STOP! Before starting Step 45, Note that the notched area on the front
of the Shroud Plate is offset. This offset area must angle towards the
front of the gym. If it does not, flip the Shroud Plate over before
securing to Weight Stack Assembly.
Notched Area
Shroud Plate
Weight Stack Assembly
2 – 4 ¼” Hex Bolts
4 – 3/8” Flat Washers
2 – 3/8” Lock Nuts
.
Step 45: Slide Shroud Plate down Guide Rods and attach to Weight Stack Assembly using:
Two (3/8” x 4 ¼” Hex Bolts)
Note: Finger Tighten Now. Four (3/8” Flat Washers)
Two (3/8” Lock Nuts)
Page 27
STEP 45
