The inSwan INS-2 USB Document Camera is a versatile device designed for various applications, including document scanning, live presentations, and microscope integration. This user manual provides comprehensive instructions for setting up, operating, and maintaining the device, ensuring a smooth and efficient user experience.

Function Description

The INS-2 USB Document Camera serves as a multi-functional tool, primarily acting as a PC camera for capturing documents, objects, and even microscopic views. Its core function is to digitize physical content, making it viewable on a computer screen, shareable, and recordable. The camera is equipped with an LED lamp to ensure optimal illumination, especially in low-light environments, thereby enhancing image quality. It features an auto-focus mechanism to maintain clear images and brightness adjustment controls to adapt to different lighting conditions. A unique aspect of the INS-2 is its ability to connect to a microscope, transforming it into a powerful tool for examining microscopic objects on a larger display, which is particularly useful in educational or scientific settings. The device connects to a computer via a standard USB cable, making it compatible with most modern PCs.

Usage Features

The INS-2 document camera is designed for ease of use, incorporating several features that enhance its operational convenience.

Flexible Design: The camera boasts an adjustable arm and head, allowing users to position the lens precisely over the object being captured. This flexibility is crucial for accommodating various document sizes, object shapes, and microscope setups. The manual emphasizes the importance of holding the device by its base when adjusting to prevent damage.
Illumination Control: An integrated LED lamp provides supplementary lighting. Users can turn the LED lamp on or off as needed, which is particularly beneficial in dark environments to achieve better exposure and clearer images.
Auto-Focus Capability: The "Auto Focus Button" simplifies the process of achieving sharp images. A single press initiates an automatic focus adjustment, eliminating the need for manual focusing and ensuring that documents and objects are always in clear view.
Brightness Adjustment: Dedicated "Brightness Adjusting Buttons" allow users to increase or decrease the brightness level of the captured image. This feature helps in optimizing image visibility under varying ambient light conditions, preventing overexposure or underexposure.
Image Orientation Control: The device includes a function to change the image orientation. If the captured image appears upside down, users can correct it by simultaneously pressing the brightness+ and brightness- buttons, ensuring the content is always displayed correctly.
Anti-Glare Solution: To combat glare from shiny objects or glossy surfaces like magazines, the INS-2 comes with an "Anti-Glare Sheet." This transparent plastic sheet can be placed over the object to reduce light reflection, thereby improving image clarity and readability.
PC Camera Functionality: When connected to a computer, the INS-2 functions as a standard PC camera, allowing it to be used with various applications that support webcam input. This broadens its utility beyond just document scanning to include video conferencing, live streaming, and more.
Documate Software Integration: For advanced functionalities, the device is designed to work seamlessly with "Documate software." This proprietary software likely offers enhanced features for image capture, editing, annotation, and management, providing a more comprehensive solution for document handling.

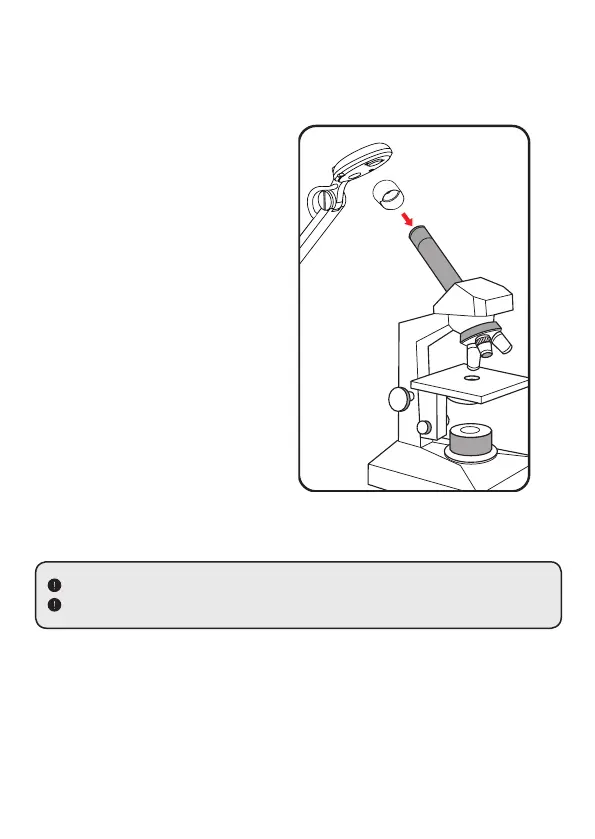

Microscope Connectivity: A significant feature is its ability to connect to microscopes using specialized adapters. The manual details the use of different sized adapters (Ø28mm, Ø31mm, Ø33mm, and Ø34mm) to fit various microscope eyepieces. This allows users to project microscopic views onto a computer screen, facilitating group viewing and detailed analysis. The process involves adjusting the microscope's focus and then fine-tuning the camera's focus using its dedicated button.

Maintenance Features

While the manual primarily focuses on operational aspects, it also includes important warnings and troubleshooting tips that contribute to the device's longevity and reliable performance.

Handling Precautions: The manual explicitly warns against looking directly at the LED light source to prevent retinal damage. It also provides clear instructions on how to carry the product—by holding the base with both hands—to avoid damaging the arm or camera head. This emphasizes proper physical handling to prevent accidental breakage.
Structural Integrity: Users are advised not to turn the arm in the opposite direction and to keep one hand on the device base when adjusting the arm and camera head. These guidelines are crucial for maintaining the mechanical integrity of the adjustable components and preventing wear or damage. The manual also suggests using two coins to tighten screws if the arm becomes loose, indicating a simple user-level maintenance step for structural stability.
Troubleshooting Guide: A dedicated "Troubleshooting" section helps users diagnose and resolve common issues. This includes problems like the device not powering on, no image output, fuzzy images, frozen images, or image noise. For each problem, a potential cause and a corresponding solution are provided. For instance, if the image is fuzzy, the solution is to press the AF button for auto-focus. If the device isn't powered on, reconnecting the USB cable or restarting the computer is suggested.
Software-Related Solutions: The troubleshooting guide also addresses software-related issues, such as the need to install bundled software or compatibility problems. For Windows 7 users experiencing high-resolution streaming issues, it recommends downloading a Codec Pack, providing a specific website for guidance.
Customer Support: The manual highlights the availability of customer service via email (service@inswan.com) and a website (http://www.inswan.com). This ensures that users have a reliable channel for support if they encounter problems that cannot be resolved using the troubleshooting guide, thereby contributing to long-term user satisfaction and device maintenance.
Environmental Responsibility: The inclusion of the crossed-out wheeled bin symbol indicates that the product should not be disposed of with municipal waste. This promotes responsible recycling of electrical and electronic equipment, aligning with environmental maintenance practices.

In summary, the inSwan INS-2 USB Document Camera is a user-friendly and versatile device, designed with features that support a wide range of applications from basic document capture to advanced microscopic viewing. Its intuitive controls, robust design guidelines, and comprehensive troubleshooting support ensure a reliable and effective experience for its users.
