Intec Force 1 - Page 36

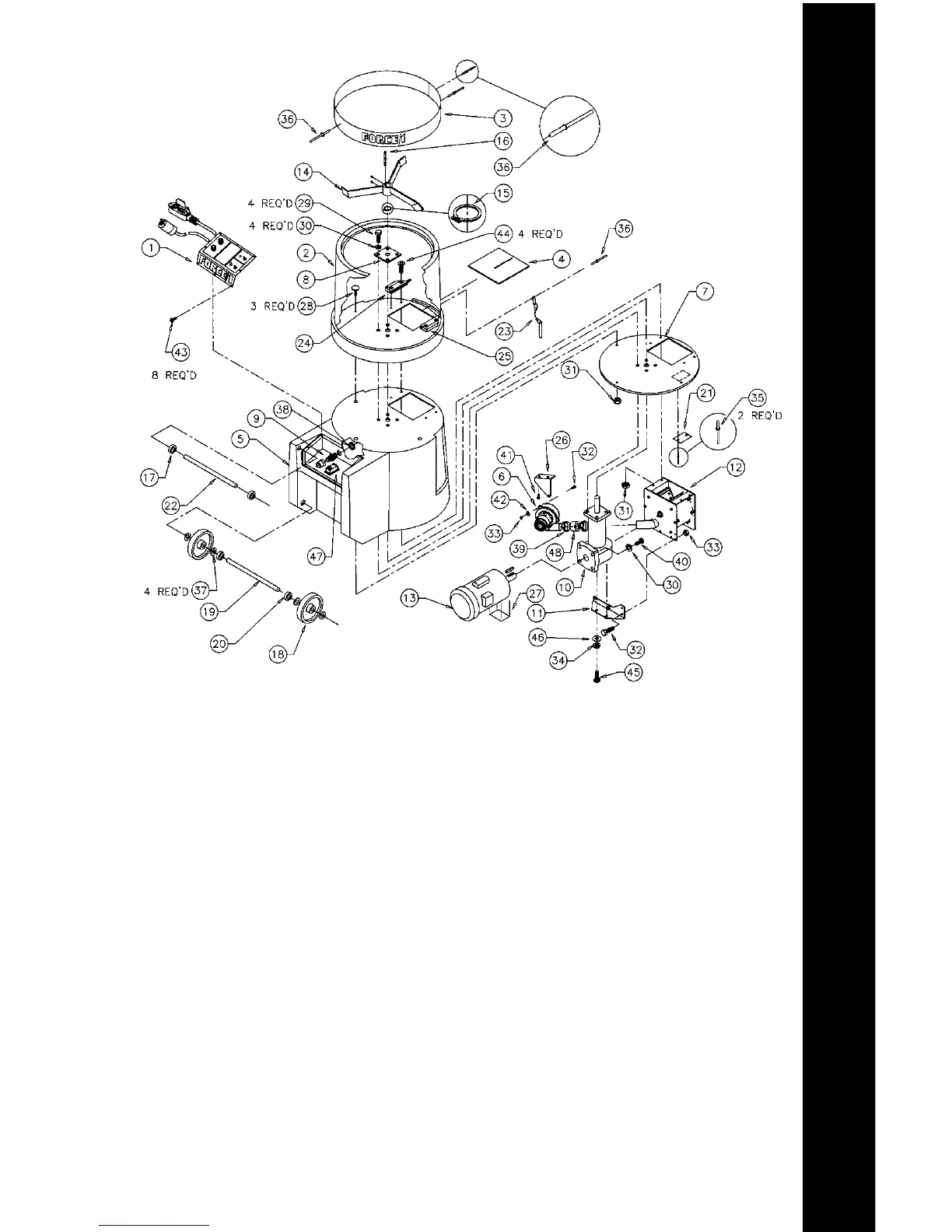

MECHANICAL DRAWINGS
35
1......11009-S ........ELECTRICAL PANEL ASSEMBLY
W/REMOTE & PC
2......12000 ..........HOPPER STD, BLUE
3......12000-02 ......HOPPER BELLY BAND, STD
4......12000-04 ......SLIDE GATE, STD F/1
5......12001-0 ........BASE STD, BLACK
6......12002 ..........BLOWER 115 V. 60 HTZ, 104 CFM
7......R2026............BASE PLATE, 3/16" x 21"
8......12005-15 ......GEARBOX SUPP. PLATE 4" x 4" x 3/4"
9......12006 ..........STRAIN RELIEF, PLASTIC, 1/2"
10....12008 ..........GEARBOX F/1, 2002
11....12007-17 ......GEARBOX STABILIZER, F/1
12....12013-S ........AIRLOCK ASSEMBLY, STD
13....12025-S ........AGITATOR MOTOR 3/4 HP, 115 V,
60 HTZ, GE, ASSM.
14....12025-09 ......AGITATOR STD W/SET SCREWS
15....12025-05 ......GEARBOX AGITATOR SHAFT
SNAP RING
16....12025-06 ......KEY 3/16" x 2"
17....12041 ..........HANDLE CLAMP, 3/4"
18....12090 ..........WHEEL, 5/8" X 6"
19....12190-01 ......WHEEL AXLE 5/8" X 15-1/2"
20....12190-02 ......WHEEL SET COLLAR 5/8"
21....12270 ..........SERIAL TAG F/1
22....12274 ..........HANDLE, SS. 3/4" x 14"
23....22000-04 ......SLIDE GATE CABLE & PIN
24....22000-06 ......SLIDE GATE GUIDE, RIGHT
25....22000-07 ......SLIDE GATE GUIDE, LEFT
26....22022 ..........BLOWER MOUNT BRACKET
27....22025-05 ......AGITATOR MOTOR ROTATION LABEL
28....F103..............3/8" * 16 x 1-1/2" ELEV. BOLT
29....F104..............3/8" * 16 x 1-3/4" HEX ZN
30....F107..............3/8" SPLIT LOCK WASHER ZN
31....F109..............3/8" * 16 NYLON LOCK NUT ZN
32....F112..............1/4" * 20 x 7/8" HEX ZN
33....F114..............1/4" * 20 NYLON LOCK NUT ZN
34....F199..............M8 SPLIT LOCK WASHER ZN
35....F129..............3/32" x 11/32" ALUM. RIVET
36....F130..............3/16" x 11/16" ALUM. RIVET
37....F131..............5/8" FLAT WASHER ZN
38....F132..............STRAIN RELIEF LOCK NUT, 1/2"
39....F142..............8 * 32 x 1/2" SELF TAPPING SCREW
40....F143..............3/8" * 16 x 1" HH ZN
41....F152..............1/4" * 20 x 1/2" ROLOCK ZN
42....F159..............1/4" SAE FLAT WASHER
43....F224..............10 * 32 x 3/8" PHIL TRUSS S/S
44....F332..............3/8" *16 x 2" SOCKET FLAT
CAP SCREW ZN
45....F198..............M8 x 1.25mm bolt
46....F363..............#14 FLAT WASHER, ZN
47....11024 ..........Relay, 115V
Manufactured from 4/03 - 9/03
