Item # PART NUMBER DESCRIPTION
1 ..........12012................AIRLOCK TUBE 10"
2 ..........12011................AIRLOCK INLET PLATE ASSM. 2"
3 ..........12022................AIRLOCK OUTLET PLATE ASSM. 2-1/2"
4 ..........12018
.
...............AIRLOCK BEARING, END PLATE
5 ..........12019-S ............AIRLOCK ROTOR ASSM. W/SEALS
6 .......... F112..................1/4*20 x 7/8 HEX, ZN.
7 .......... F115..................1/4 SPLIT LOCK WASHER, ZN.
8 ..........12024................AIRLOCK SS INSERT, 2"
9 ..........12023-0 ............AIRLOCK SS INSERT, 2-1/2"

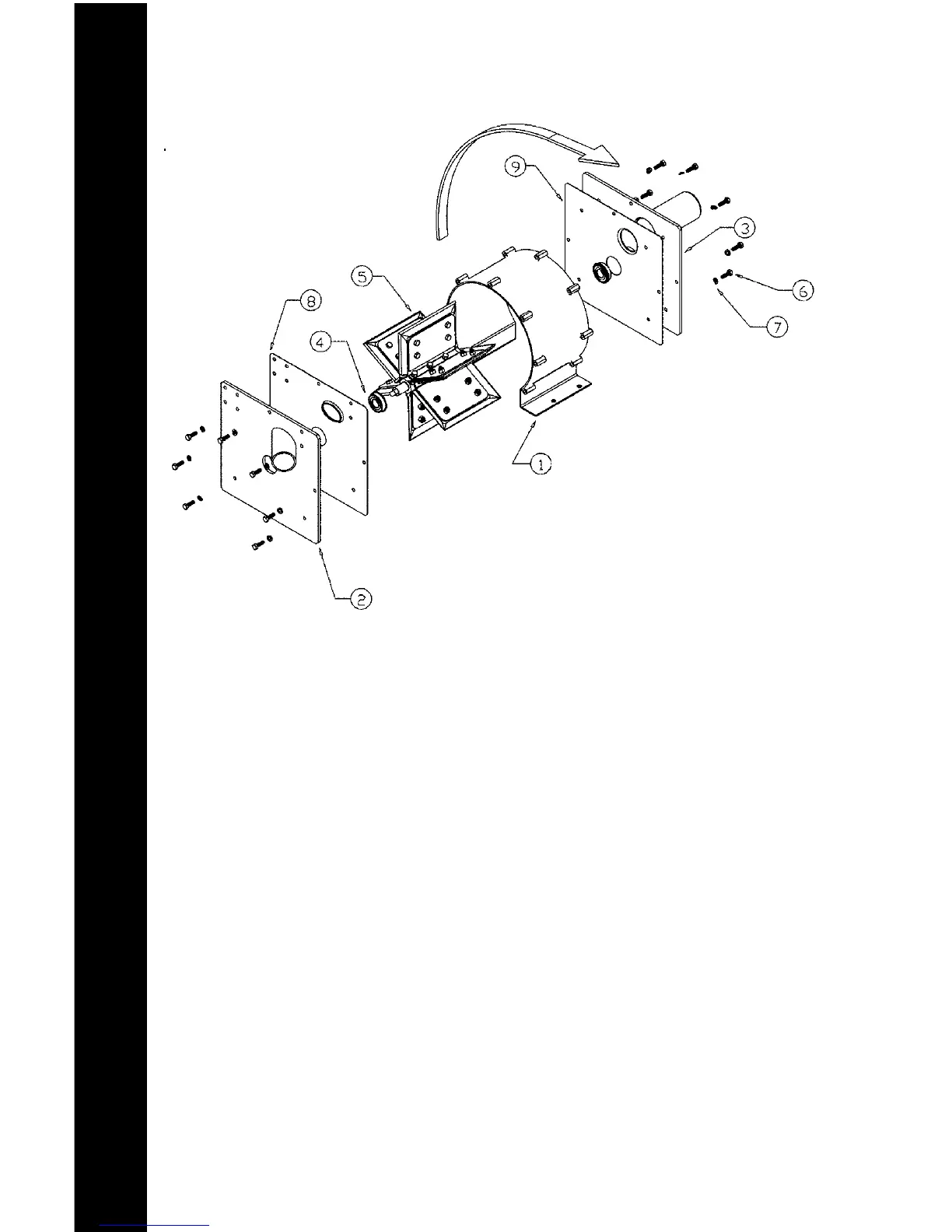

Clockwise Rotation
Mfg. from 9/03 - Present
Airlock assembly W/SS inserts
P/N 12026-01-S
MECHANICAL DRAWINGS
