MECHANICAL DRAWINGS
37
Clockwise Rotation
Mfg. from 12/02 - 9/03

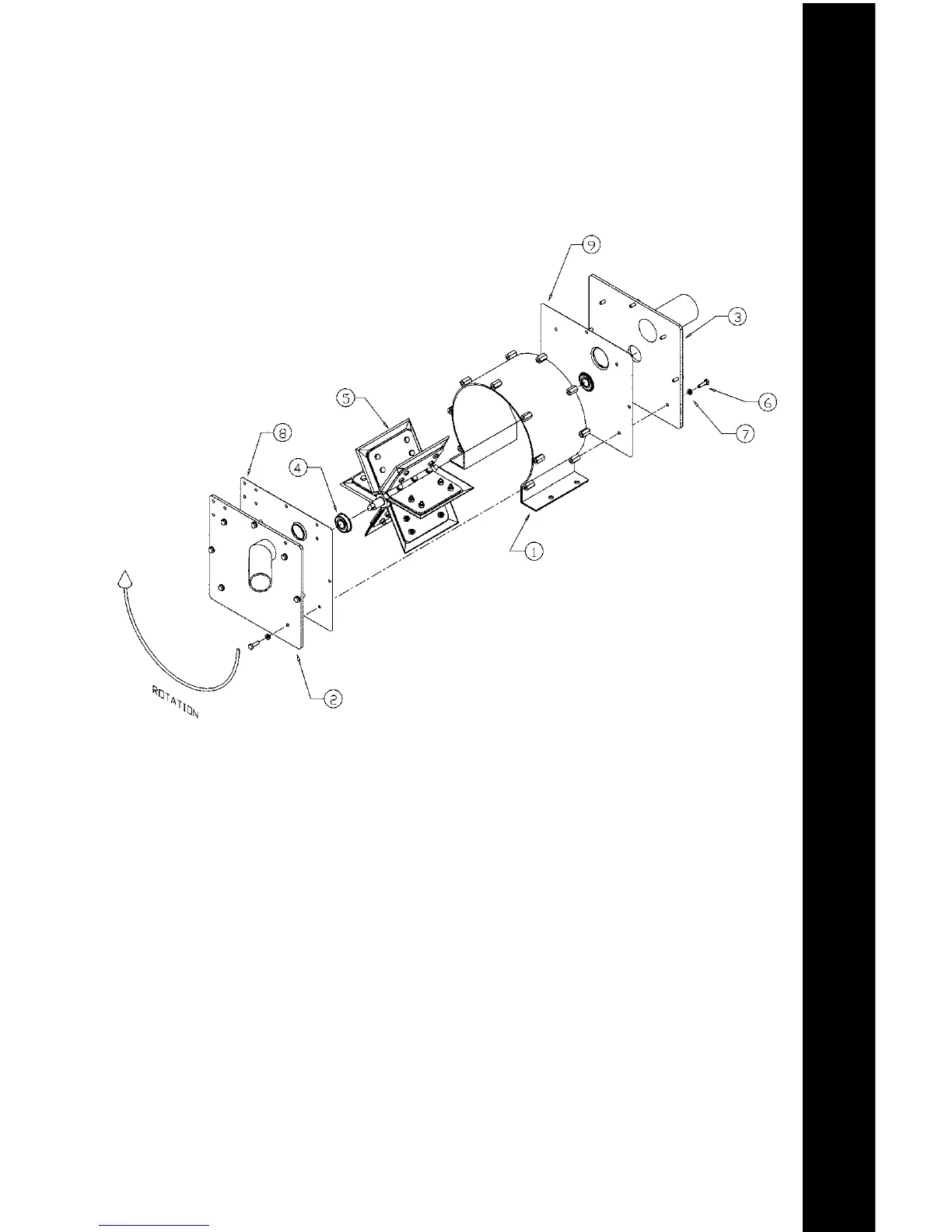

Airlock assembly W/SS inserts
P/N 12013-01-S Rev 1
Item # PART NUMBER DESCRIPTION
1 ..........1
2012................AIRLOCK TUBE 10"
2
..........12021................AIRLOCK INLET PLATE ASSM. 2"
3 ..........12022................AIRLOCK OUTLET PLATE ASSM. 2-1/2"
4 ..........12018................AIRLOCK BEARING, END PLATE
5 ..........12020-01-S........AIRLOCK ROTOR ASSM. W/SEALS
6 .......... F112..................1/4*20 x 7/8 HEX, ZN.
7 .......... F115..................1/4 SPLIT LOCK WASHER, ZN.
8 ..........12023................AIRLOCK SS INSERT, 2"
9 ..........12023-0 ............AIRLOCK SS INSERT, 2-1/2"
