MECHANICAL DRAWINGS
38

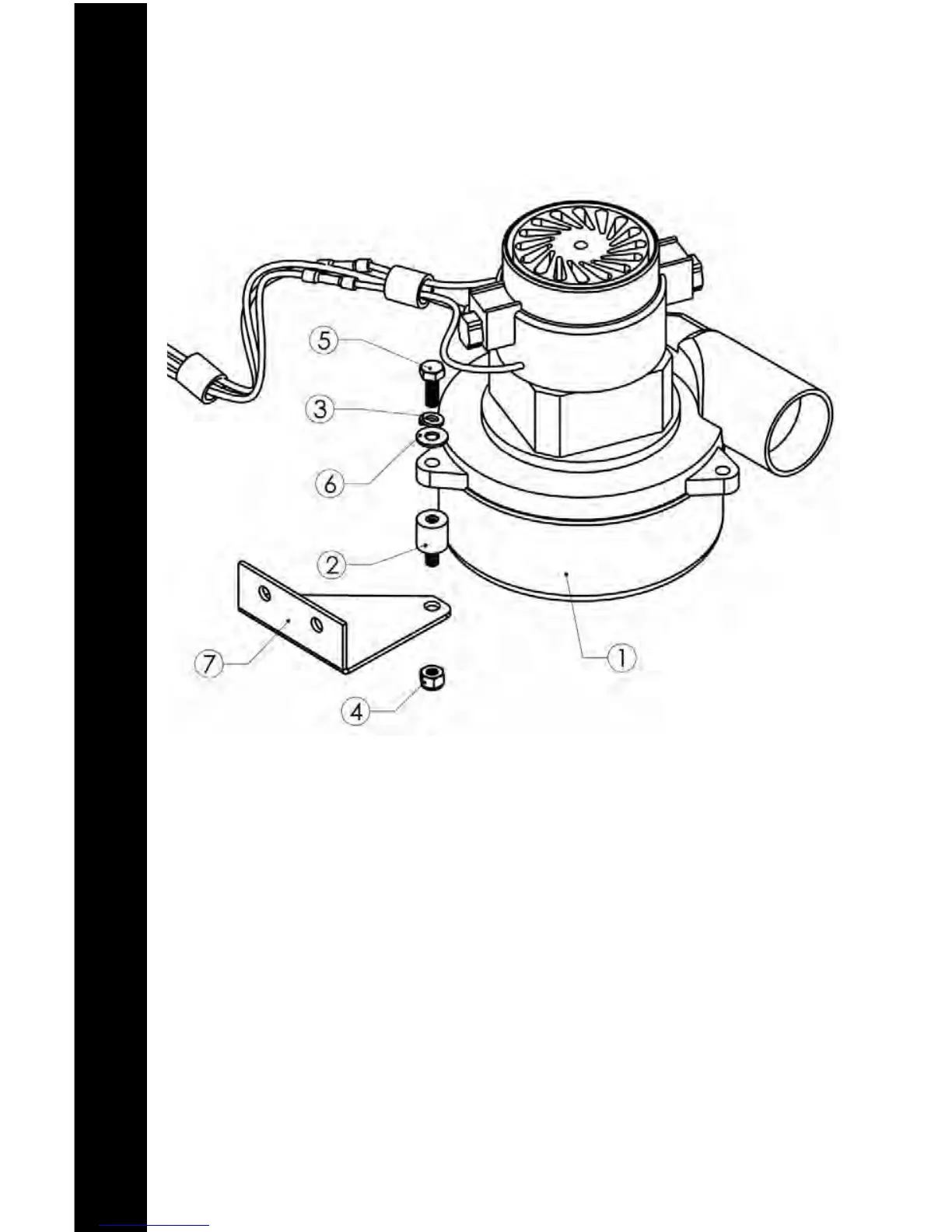

Item # PART NUMBER DESCRIPTION
1 ..........12002-01 ..........BLOWER 115V 104 CFM
2 ..........12101.
.
..............BLOWER ISOLATION MOUNT
3 .......... F115..................1/4" SPLIT LOCK WASHER
4 .......... F114..................1/4*20 NYLON LOCK NUT
5 .......... F342..................1/4*20 X 3/4" BOLT
6 .......... F159..................1/4" FLAT WASHER
7 ..........22022................BLOWER MOUNT BRACKET
Mfg from 9/03 - Present
