ELECTRICAL DRAWINGS
42
ELECTRICAL DRAWINGS

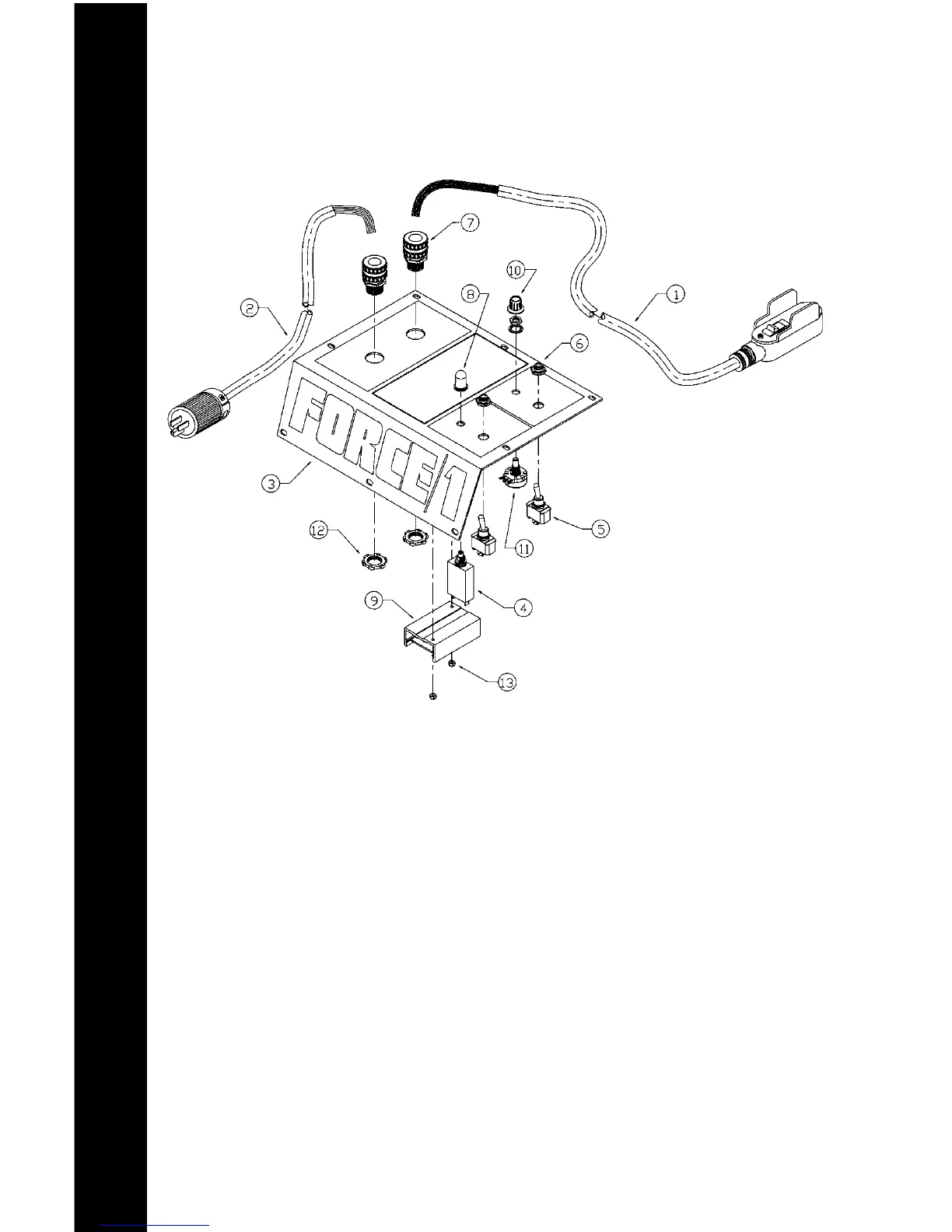

Item # PART NUMBER DESCRIPTION
1 ..........K11081-S ..........REMOTE CORD ASSM.
2
.
.........11082-S ............POWER CORD ASSM. 14/3x50'
3 ..........11065................ELEC. FACE PLATE W/SILK SCR.
4 ..........11067................CIRCUIT BREAKER 15 AMP.
5 ..........11071................TOGGLE SWITCH 20 AMP.
6 ..........11072................TOGGLE SWITCH SEAL
7 ..........21008-02 ..........STRAIN RELIEF, ALUM, 1/2"
8 ..........21045-02 ..........CIRCUIT BREAKER BUTTON SEAL
9 ..........31044................KBGE, 25 AMP, 120 VAC
10 ........21143-01 ..........VARIABLE SPEED KNOB
11 ........31042................VARIABLE SPEED POTENTIOMETR
12 ........F132 ..................STRAIN RELIEF LOCK NUT 1/2"
13 ........F127 ..................#4*40 LOCK NUT
Optional Electrical
Mfg from 7/02 - Present
