EN - ENGLISH
10
Insert the plug of the Foot Pedal into the Foot Pedal
Receptacle on the rear of the Generator. Place the Foot
Pedal in an area accessible to the user.
Twist the cable collar 1/4 turn to lock the Foot Pedal cable
in place.
Note: Verify activation of the Foot Pedal before each use.

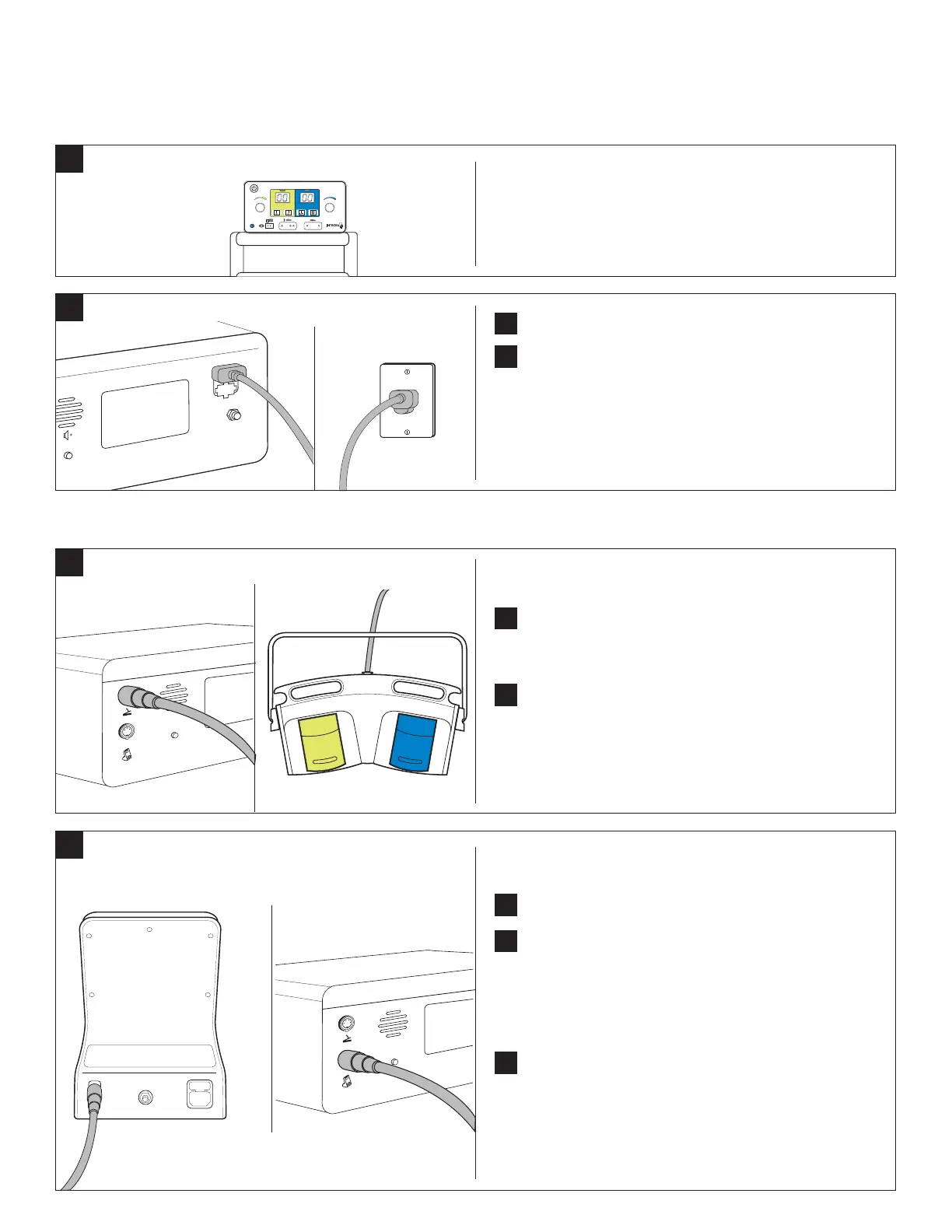

INSTRUCTIONS FOR USE
Place the Generator on a stand, shelf, or other flat surface
capable of securely supporting the device.
Plug the power cord into the rear panel of the Generator.
Plug the Generator into a grounded electrical outlet of
the appropriate voltage rating.


Place Generator
Plug In Generator
REAR PANEL
REAR PANEL
GENERATOR: REAR PANELIRRIGATOR: REAR PANEL
FOOT PEDAL
a
b
COAGCUT
Codman® Electrosurgical Generator
WW
BICOAGBICUTMONOCUT
Monopolar Bipolar
MONOCOAG
If you are using the Electrosurgical Irrigator with the
Generator:
Follow the Instructions for Use provided with the Irrigator.
Using the Electrosurgical Interconnecting Cable, connect
one end of the cable to the Generator receptacle on the
rear of the Irrigator. This cable allows you to control
irrigation while cuing or coagulating when using the
Foot Pedal to activate the system.
Connect other end of the cable to the receptacle on the
rear of the generator.


Plug In Foot Pedal
Codman Electrosurgical Irrigator Setup (Optional)
a
a
b
b
c
Generator Setup
Foot Pedal & Electrosurgical Irrigator Setup
If you are using the Foot Pedal with the Generator:
