FIRMWARE UPDATE -2
Preparation for Update (Main microprocessor)
1. Personal computer(PC) with Windows XP or 2000
2. Flashwriter jig: 0JFLASH and 0JFLASHEX for Main
3. Writing soft: "flasta_exe.zip" and Manual: "Flash Writer M16 Manual.pdf"
Download and unzip “flasta_exe.zip” to extract "FlashSta.exe" etc. in advance.
4. Program & ID: Download the latest ".mot" and ".id" files for TX-SR876/TX-SA876/DTR-8.9/DHC-9.9/PR-SC886 and
store in the same folder as “FlashSta.exe.”
1. While the target unit is powered off, connect 0JFLASH and 0JFLASHEX to RS232 port of the PC.
2. Connect the FFC of the jig to the connector slot on the rear panel of TX-SR876/TX-SA876/DTR-8.9/DHC-9.9/PR-SC886 .
3. Power on the unit.

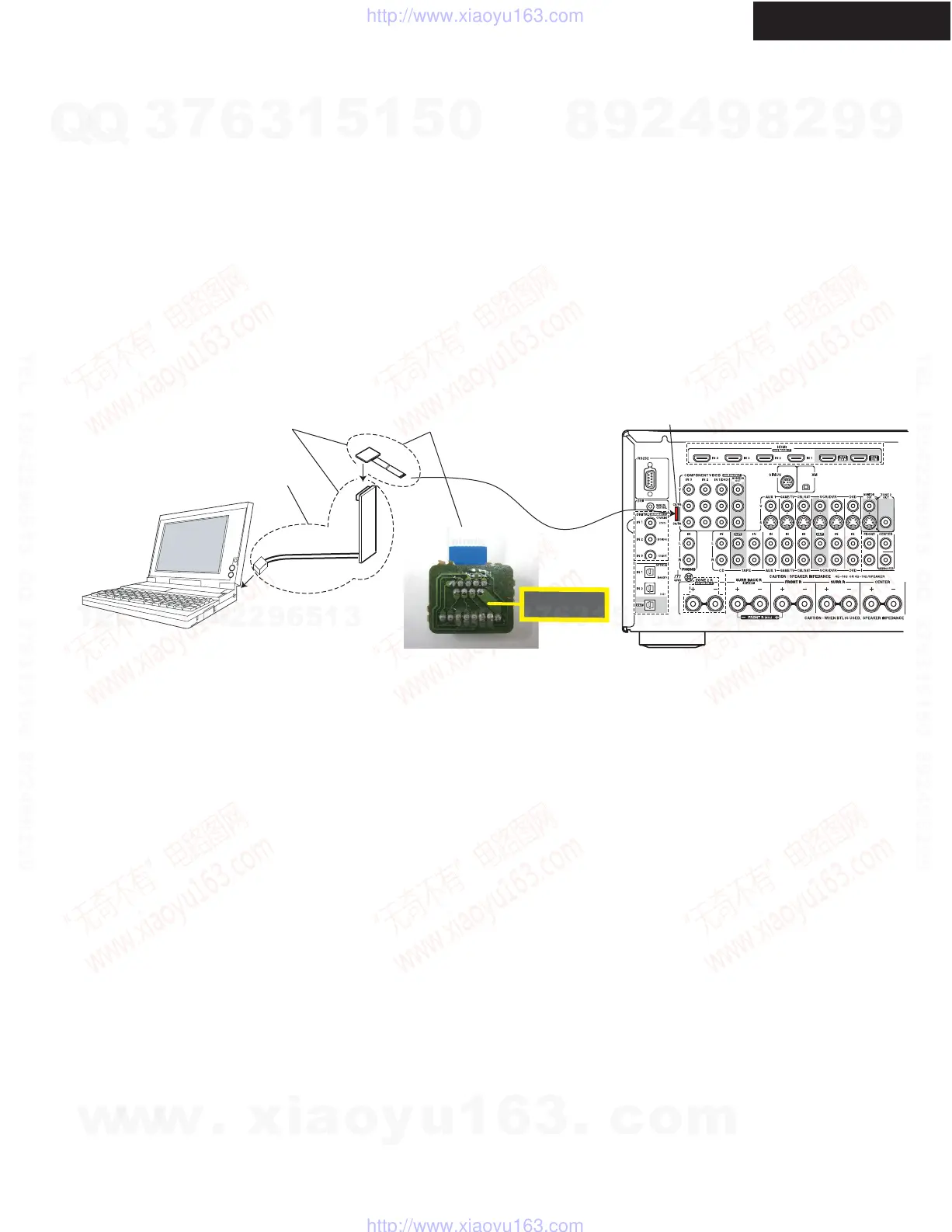

Hardware and Software
Connection and Setup
Connector slot
PC
(Personal computer)
RS232
0JFLASH
0JFLASHEX
FFC
Flashwriter Jig
Main Microprocessor Update Procedure
1. Start "FlashSta.exe" and update the unit referring to "Flash Writer M16 Manual.pdf".
MCU Type is M16C/80 M32. It takes about 15 minutes.
2. After “Program and Read Check” are finished, click "Exit" button to end "FlastSta.exe".
3. Turn off the main power switch or pull the power cord off the wall socket.
Pay attention that pushing [ON/STANDBY] button to power off is not perfect.
4. Remove the jig from the unit and power on the unit again. Confirm the new version number.
No line cut
TX-SR876 Rear Panel
TX-SR876/SA876
