FIRMWARE UPDATE -4
TX-SR876/SA876
HDMI Update Procedure
1. Double click "Update.exe" in the unzipped folder "906HDMI1.00” (Folder name depends on the version.)
The following window will appear.
2. Click "Video Update" button. The update takes about 5 minutes.
The message on FL display will change as follows.
3. After the update ends, turn off the unit's main power switch or pull the power cord off the wall socket.
4. Remove the jig from the unit and power on the unit again. Confirm the new version number.
Clear
Complete!
Write: 1..
The unit is put into the Standby mode.

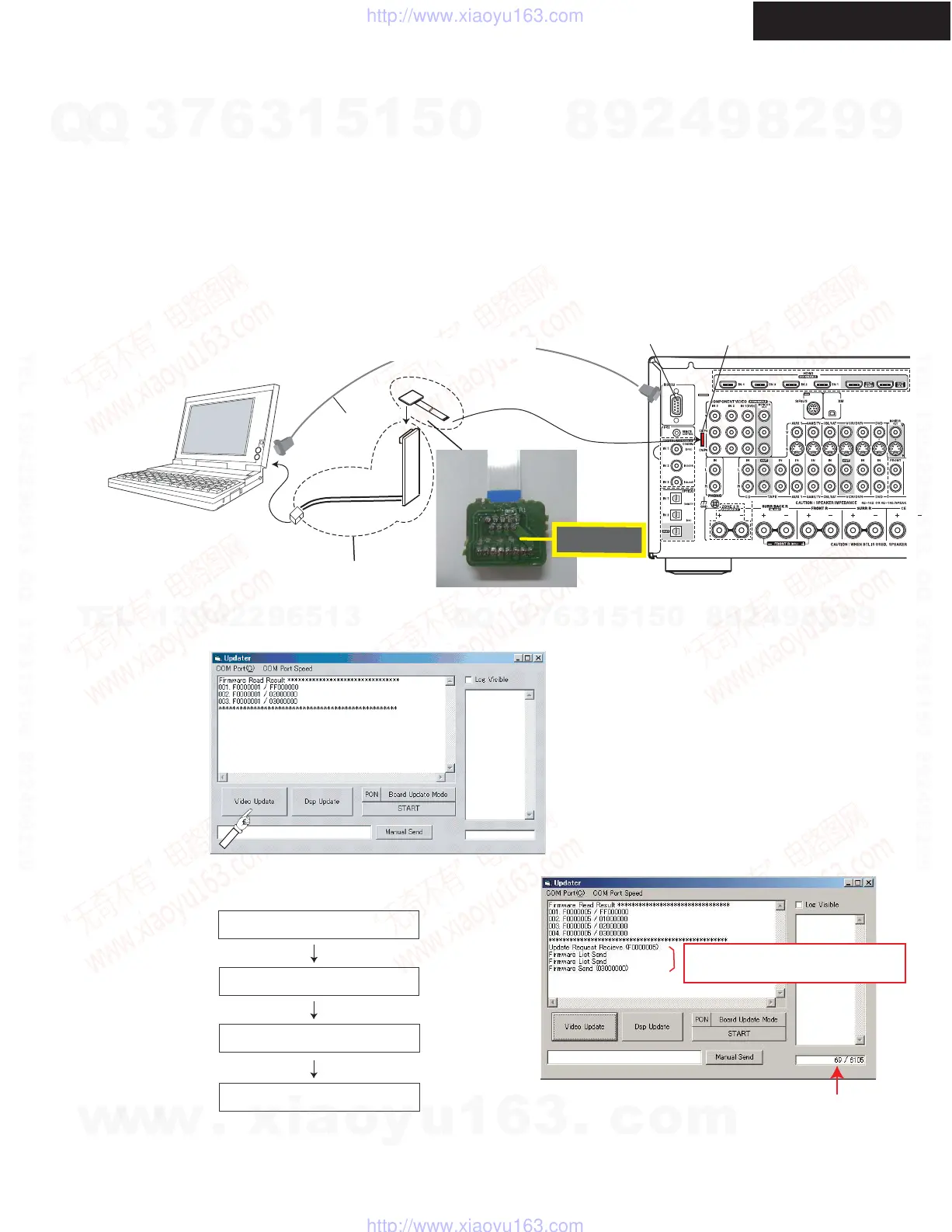

Preparation for Update (HDMI)
1. Personal computer(PC) with Windows XP or 2000
2. Cable: RS232 straight cable, or
Flashwriter jig: 0JFLASH and 0JFLASHEX for HDMI
3. Writing soft: "906HDMI1.00.zip" for HDMI microprocessor (File name depends on the version.)
Unzip "906HDMI1.00.zip” in advance.
1. While the target unit is powered off, connect the unit and PC with RS232 straight through cable.
If RS232 cable is not available, connect 0JFLASH and 0JFLASHEX to RS232 port of the PC, and then
connect the FFC of the jig to the connector slot on the rear panel of TX-SR876/TX-SA876/DTR-8.9/DHC-9.9/PR-SC886.
2. Power on the PC.
Hardware and Software
Connection and Setup
Connector slot
RS232 terminal
RS232
0JFLASH
0JFLASHEX
FFC
2.Flashwriter Jig
Only for HDMI
the 4 lines are cut.
1.RS232 straight through cable
or
PC
(Personal computer)
This information will appear when
the click of [Video Update] is accepted.
The number is going up
as writing is proceeding.
RS232 cable
TX-SR876 Rear Panel
