DPS-5.4

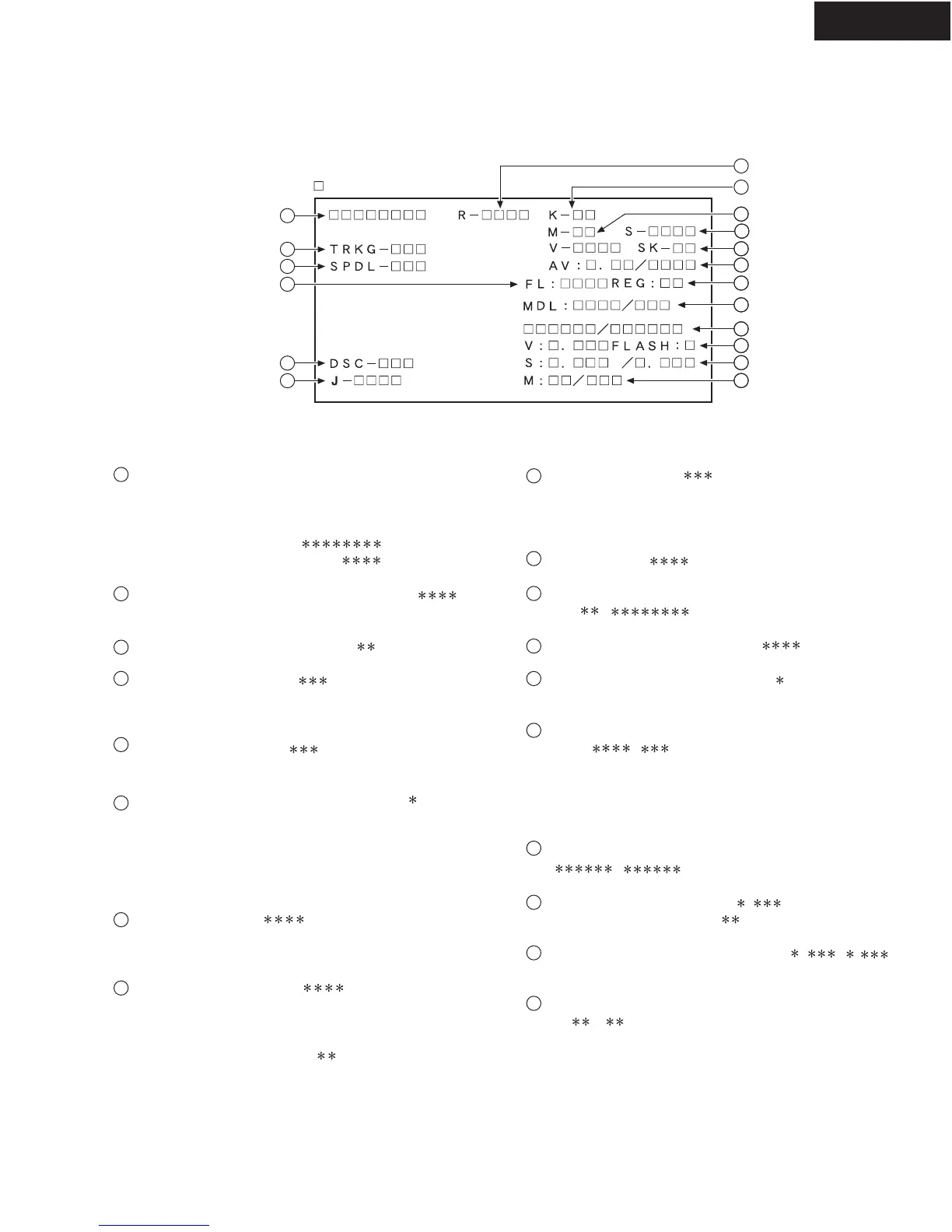

DISPLAY SPECIFICATION OF THE TEST MODE
Character in bold : Item name
: Information display
1
5
6
10
13
11
8
9
3
2
12
17
18
19
16
14
15
Address indication
The address being traced is displayed in number.
(as for the DVD, indication of decimal number is possible.)
DVD : ID indication (hexadecimal number, 8 digits)
[]
CD : A-TIME (min. sec.) [0 0 0 0 ]
Code indication of remote control unit [R - ]
In case of double code, display a 2nd code.
Main unit keycode indication [K - ]
Tracking status [TRKG - ]
Tracking on : [ON]
Tracking off : [OFF]
Spindle status [SPDL - ]
[OFF], [ACC/BRK], [CAV], [CLV]
Mechanism (loading) position value [M - ]
Unknown : [01] or [41]
Open state : [04]
Close state : [08]
During opening : [12]
During closing : [22]
Slider position [S - ]
In Side Switch ON : [01]
In Side Switch OFF : [00]
Output video system [V - ]
NTSC system : [NTSC]
PAL system : [PAL]
Automatic setting : [AUTO]
Scart terminal output [SK - ]
(Display only the WY model which can do the output setting
of scart terminal.)
VIDEO : [00]
S-VIDEO : [01]
RGB : [02]
Disc sensing [DSC - ]
The type of discs loaded is displayed.
[DVD], [CD ], [VCD], [ ]
Jitter value [J - ]
Version of the AV-1 chip / version of firmware
[AV: / ]
Version of the FL controller [FL: ]
Region setting of the player [REG: ]
Setting value : [1] to [6]
Destination setting of the FL controller
[MDL: / ]
Four characters in the front represent the type of model.
Three characters in the back represent the destination code.
J: /J, K: /KU, /KC, /KU/KC, R: /RL/RD, RAM : /RAM,
LB: /LB, WY: /WY
Part number of the flash ROM and system controller
[/ ]
Version of the flash ROM [V:
.
]
Flash ROM size [FLASH = ]
Revision of the system controller [S: . / . ]
version . revision / build number of the ST core
Revision of the DVD mechanism controller
[M: / ]
Kinds of version / firmware of the FE.
RAM or ROM
