Integra DPS-5.4 Service Manual

DPS-5.4

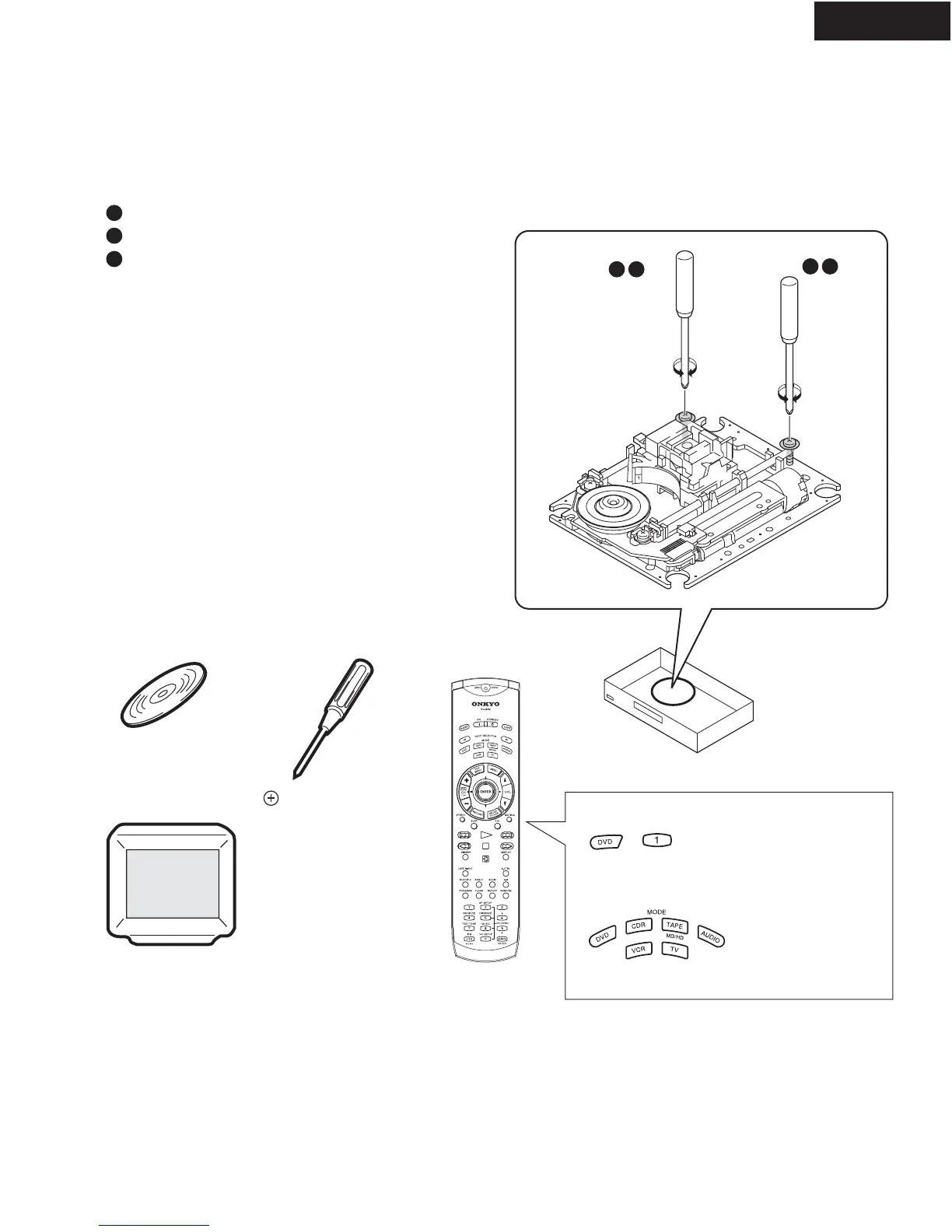

ADJUSTMENT OF MECHANISM-1
1. ADJUSTMENT ITEMS AND LOCATION
2. JIGS AND MEASURING INSTRUMENTS
1
1 2
2
3
Tangential
adjustment
screw
1 2
Radial
adjustment
screw
Adjustment Items
[Mechanism Part]
[Electrical Part]
Tangential and Radial Height Coarse Adjustment
DVD Jitter Adjustment
Initialize the Focus Sweep Setting
Electrical adjustments are not required.
Adjustment Points (Mechanism Part)
Cautions: After adjustment, adjustment screw locks with the
Screw tight.
Screwdriver (medium)
TV monitor
DVD test disc
(GGV1025)
Remote controller
RC-484M
Screw lock
Setting the special mode
+
Press "DVD" key and press "1" at same time.
Release the special mode
Press the either key of the MODE keys.
Part number: 24140484
