5. MECHANISM ADJUSTMENT
Remove the Loading Mecha. Assy.
Remove a Spacer for height adjustment
attached to the back side (shaded area)
of the Loading Mecha. Assy (Float Base)
with nippers.
Cautions:
Because there is not a Spacer for height adjustment in
adjustment after the second time, will keep it at need.
(This parts is Traverse mechanism exclusive use of a model
for 2003 years)
Put a spacer between a Tangential (or Radial) adjustment
screw and Mechanism Base and turn each screw to adjust
the height. (Refer to "6.1 ADJUSTMENT ITEMS AND
LOCATION".)
START

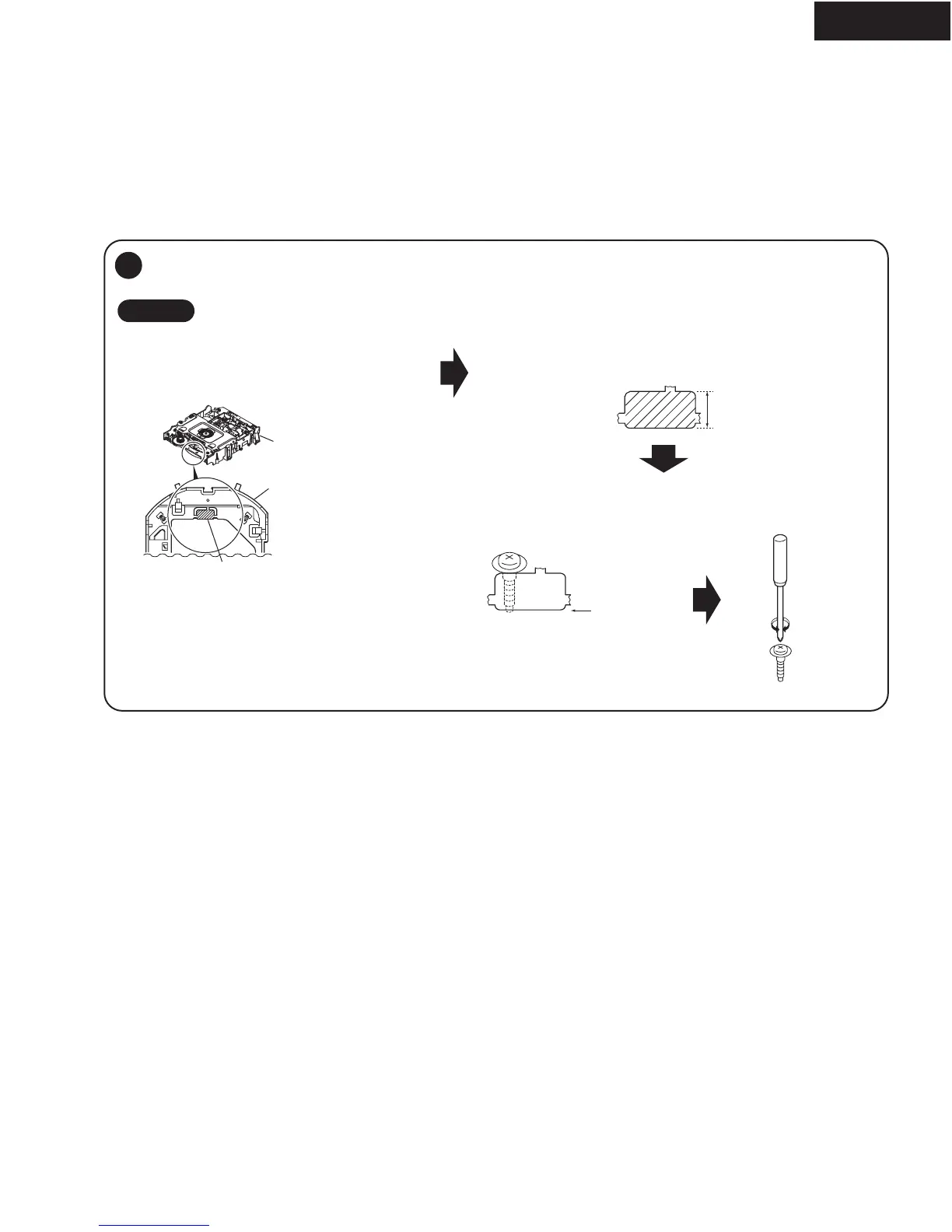

Tangential and Radial Height Coarse Adjustment
1
Loading Mecha. Assy
7.3mm
Turn a flat side
into bottom
Spacer for Height adjustment
Float Base
ADJUSTMENT OF MECHANISM-4
