Integra DPS-5.4 - Page 72

DPS-5.4
Dislodge the flexible cables from their factory
placement.
2
Remove the four hooks.
3

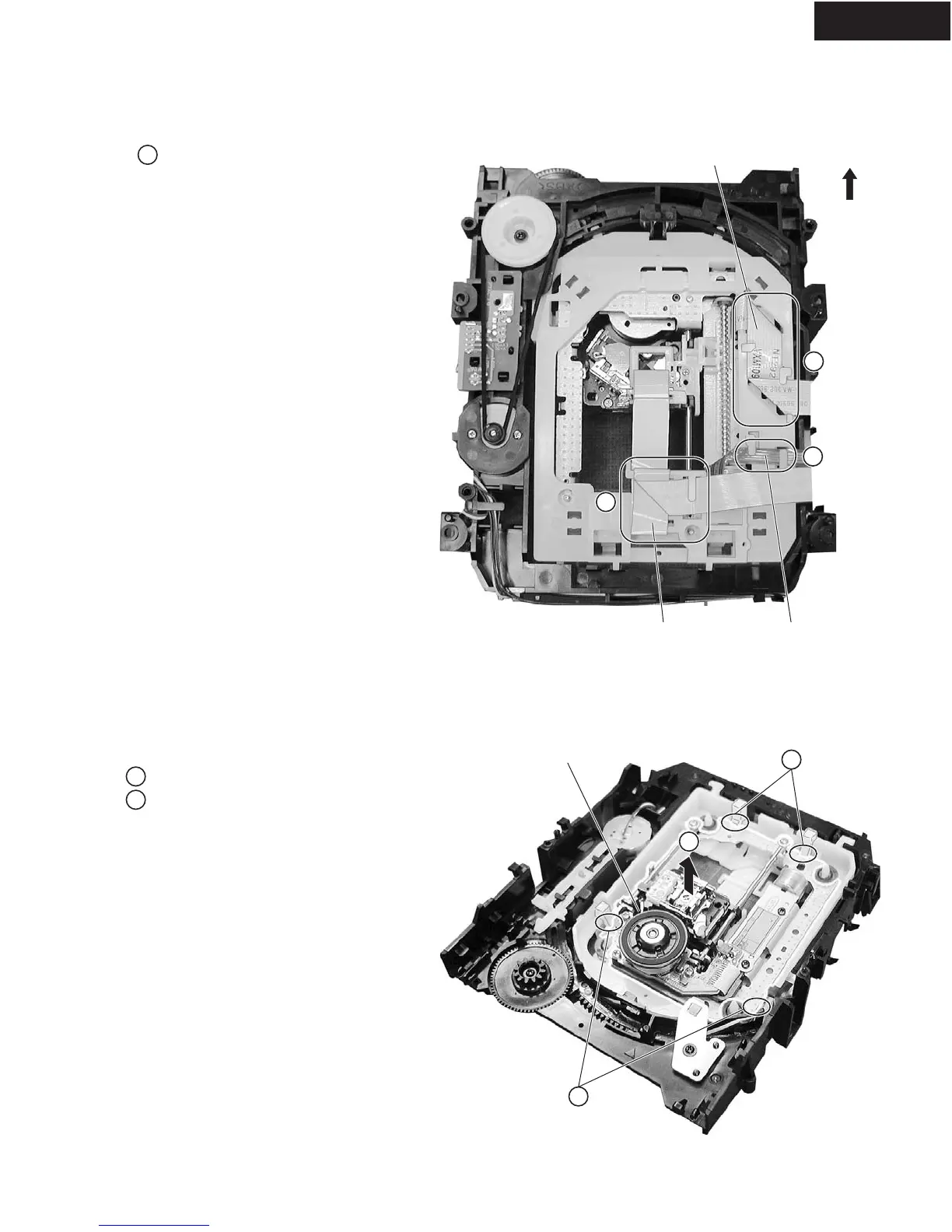

Remove the Traverse Mecha. Assy-S.
Traverse Mecha. Assy-S
Bottom View
Traverse Mecha. Assy-S
Flexible cable
for the pickup
Flexible cable
for the spindle motor
1
1
1
2
2
3
Flexible cable
for the stepping motor
Front Side
DISASSEMBLY DVD MECHANISM-2
1
