DTA-9.4
Rear panel
OUTPUT
ADJUSTMENT PROCEDURES-2

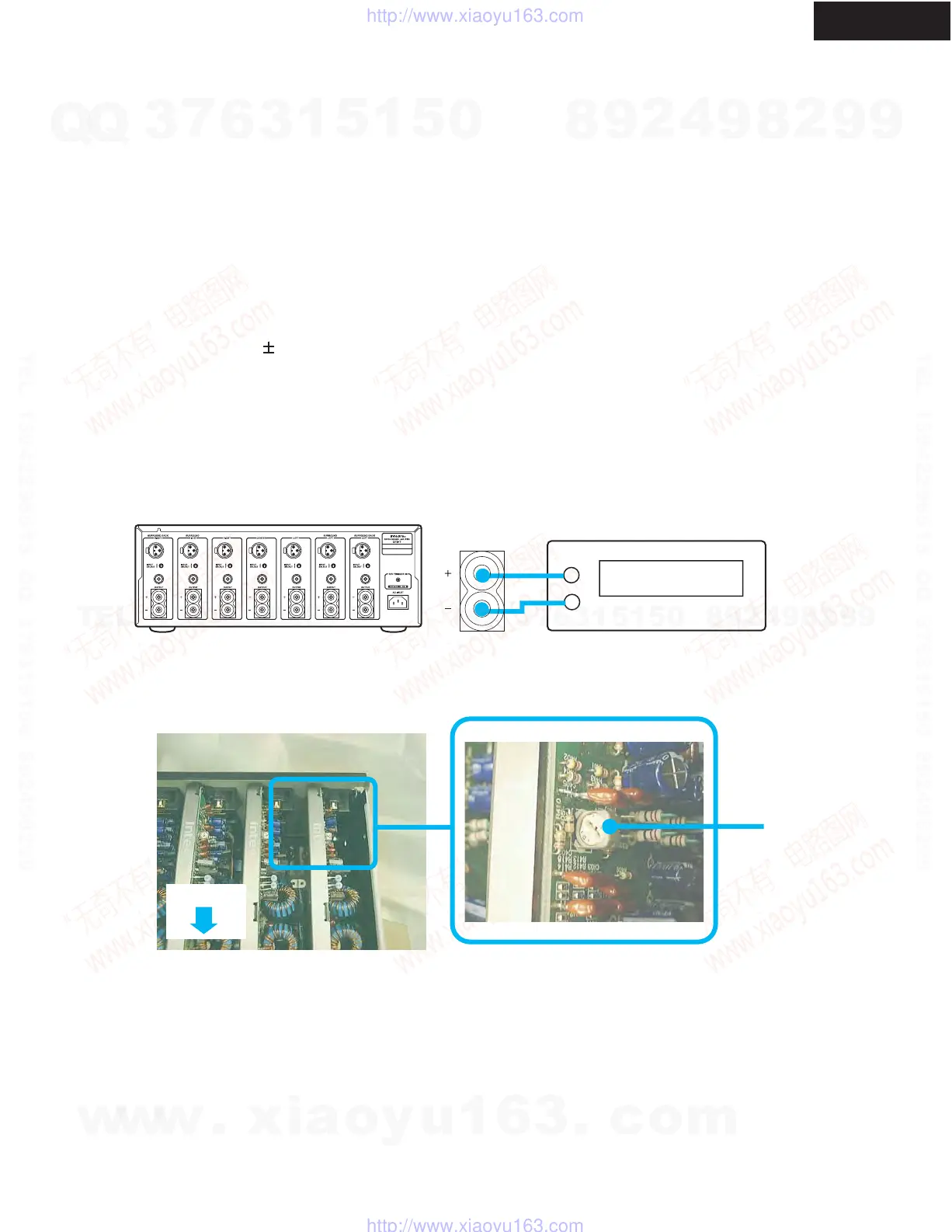

DC OFFSET ADJUSTMENT
When adjustment?
Replace the NAAF-7797 (Power amplifier PC board)
Notes
No load and No signal input.
How to adjustment?
1. Remove the top cover.
2. Connect a DC volt meter to the OUTPUT (Speaker terminal)
3. Connect the power supply card to a wall outlet.
4. Power On the unit.
5.
Adjust the R430 trimming resistor so that the reading of DC voltmeter becomes standard value.
Standard value : 0 5m V
6. Wait for five minutes.
7. Check the voltage of OUTPUT again. If reading of a voltmeter is outside a standard, will adjust again.
8. Power Off.
9. Remove a DC voltmeter.
Measuring point
Adjustment point
R430
Trimming resistor
DC voltmeter
Front side
