Connections
En-15
Connect your components to the appropriate jacks. The
default input assignments are shown below. See
“Connection Tips and Video Signal Path” for more
information (➔ page 82).
✔: Assignment can be changed (➔ page 47).
Note
*1
Do not connect the AV receiver’s USB port to a USB port on
your computer. Music on your computer cannot be played
through the AV receiver in this way.
*2
When the USB input is selected, you can input video signals
from the AUX Input Video jack. Video signals input from
AUX Input Video will be output from the MONITOR OUT
and HDMI output jacks.
*3
Connect a turntable (MM) that has a phono preamp built-in. If
your turntable (MM) doesn’t have it, you’ll need a
commercially available phono preamp.
If your turntable has a moving coil (MC) type cartridge, you’ll
need a commercially available MC head amp or MC
transformer as well as a phono preamp. See your turntable’s
manual for details.
• With connection D, you can enjoy Dolby Digital and
DTS. (To listen in Zone 2 as well, use D and H.)
• With connection H, you can enjoy audio from external
components while you are in Zone 2.
• With connection H, if your Blu-ray Disc/DVD player
has both the main stereo and multichannel outputs, be
sure to connect the main stereo.

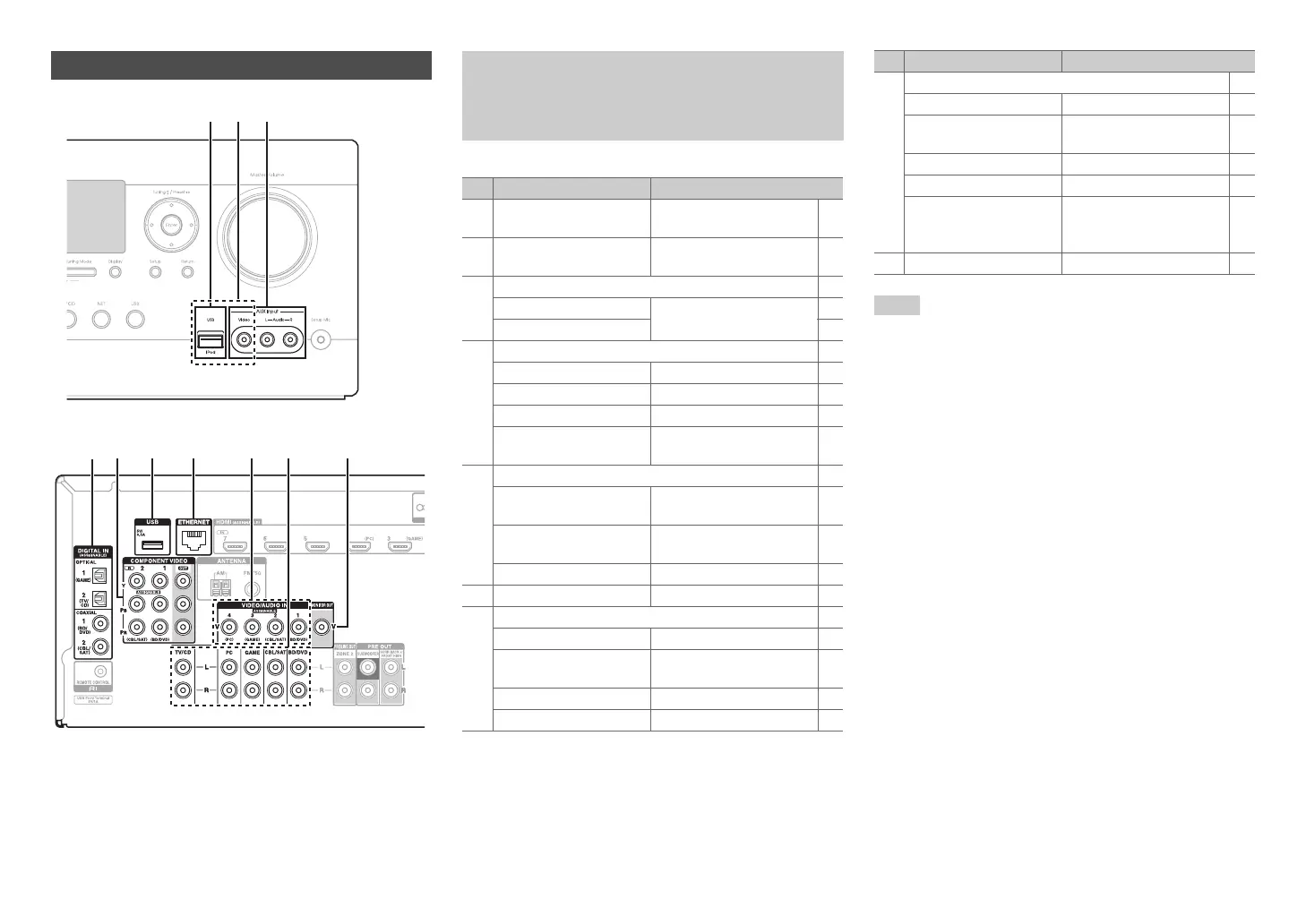

Connecting Your Components
B CA
DGHIEFA
The on-screen menus appear only on a TV that is
connected to HDMI OUT. If your TV is connected to
other video outputs, use the AV receiver’s display
when changing settings.
No. Jack/Port Components
A
USB
*1
iPod/iPhone, MP3 player,
USB flash drive
B
USB, AUX Input Video
*2
iPod/iPhone (video
playback)
C
AUX Input
Video Camcorder, etc.
Audio L/R
D
DIGITAL IN
OPTICAL 1 (GAME) Game consoles ✔
OPTICAL 2 (TV/CD) TV, CD player ✔
COAXIAL 1 (BD/DVD) Blu-ray Disc/DVD player ✔
COAXIAL 2 (CBL/SAT) Satellite/cable set-top box,
RI dock, etc.
✔
E
COMPONENT VIDEO
IN 1 (BD/DVD) Blu-ray Disc/DVD player,
RI dock
✔
IN 2 (CBL/SAT) Satellite/cable set-top box,
RI dock, etc.
✔
OUT TV, projector, etc.
F
ETHERNET Router
G
VIDEO IN
IN 1 (BD/DVD) Blu-ray Disc/DVD player ✔
IN 2 (CBL/SAT) Satellite/cable set-top box,
etc.
✔
IN 3 (GAME) Game console, RI dock ✔
IN 4 (PC) Personal computer ✔
H
AUDIO IN
BD/DVD IN Blu-ray Disc/DVD player
CBL/SAT IN Satellite/cable set-top box,
etc.
GAME IN Game console, RI dock
PC IN Personal computer
TV/CD IN TV, CD player, cassette
tape deck, MD, CD-R,
Turntable
*3
, RI dock
I
MONITOR OUT TV, projector, etc.
No. Jack/Port Components
To Next Page
