Front & Rear Panels
For detailed information, see the pages in parentheses.
a 8On/Standby button (18)
b Hybrid Standby indicator (45)
c Tone and Tone Level buttons (42)
d Remote control sensor (4)
e Display (8)
f Listening Mode buttons (33)
g Dimmer button (North American models) (39)
h Memory button (28)
i Tuning Mode button (27)
j Display button (39)
k Setup button (44)
l Tuning q/w (27), Preset e/r (28), cursor and
Enter buttons
m Return button
n Master Volume control (21)
o Zone 2, Off buttons (62)
p Zone 2 Level q/w buttons (62)
q Phones jack (40)
r Input selector buttons (21)
s USB port (15)
t AUX Input Video/Audio jack (15)
u Setup Mic jack (31)
v RT/PTY/TP button (Australian models) (28)

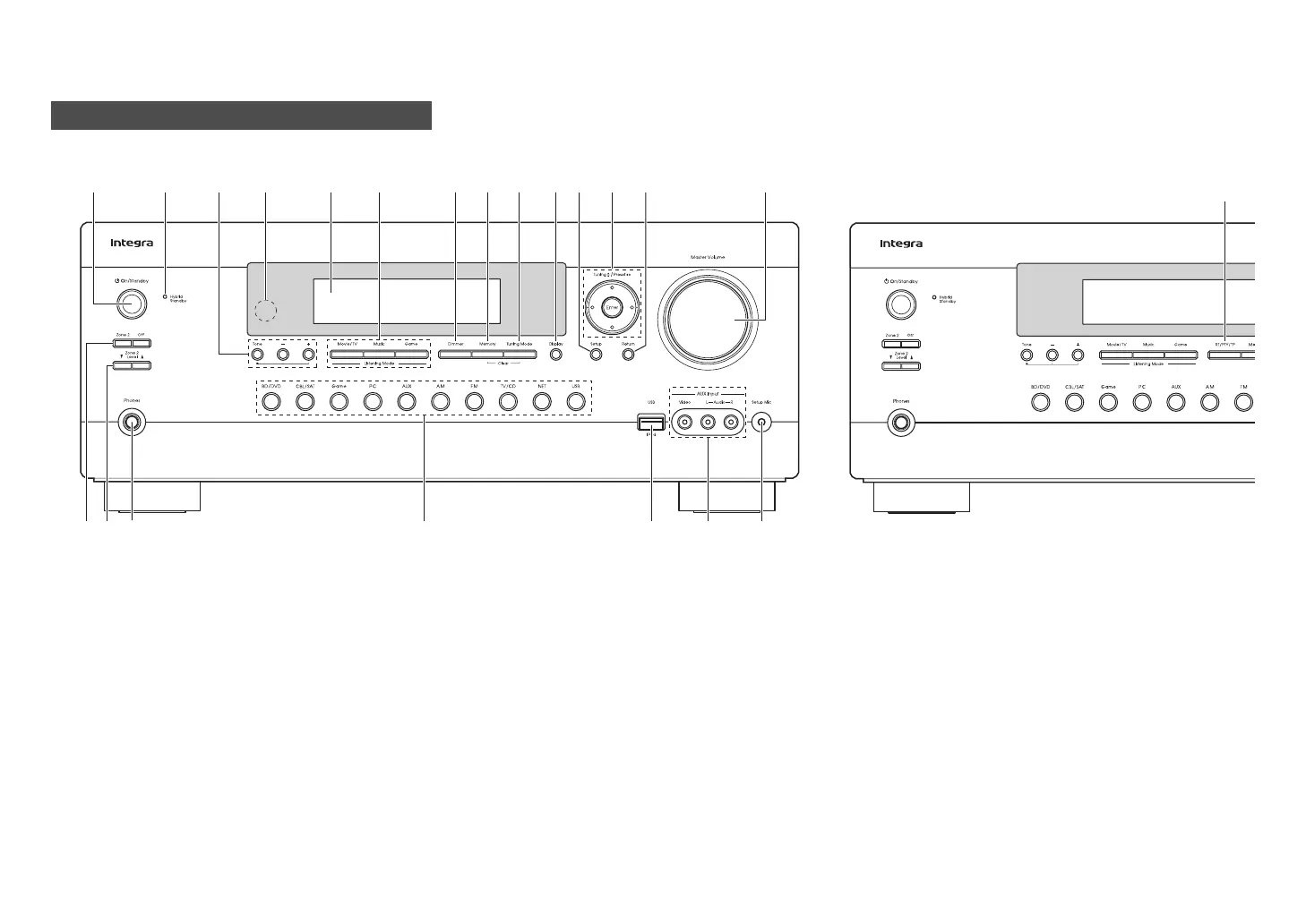

Front Panel
(North American models) (Australian models)
a c
b
e
df
ghi
j
kl
m
n
t
q
p
o
s
r
u
v
