Safety Information and Introduction
En-9
a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c USB port
d ETHERNET port
e FM ANTENNA jack and AM ANTENNA terminal
f HDMI IN and OUT jacks
g RS232 jack
Terminal for control.
h IR IN and OUT jacks
i 12V TRIGGER OUT jacks
j AC INLET
k uREMOTE CONTROL jack
l Composite video and analog audio jacks
(BD/DVD IN, CBL/SAT IN, GAME IN, PC IN,
TV/CD IN)
m MONITOR OUT V jack
n ZONE 2 PRE/LINE OUT jacks
o PRE OUT jacks
(SURR BACK or FRONT HIGH, SUBWOOFER)
p SPEAKERS terminals
(CENTER, FRONT, SURROUND)

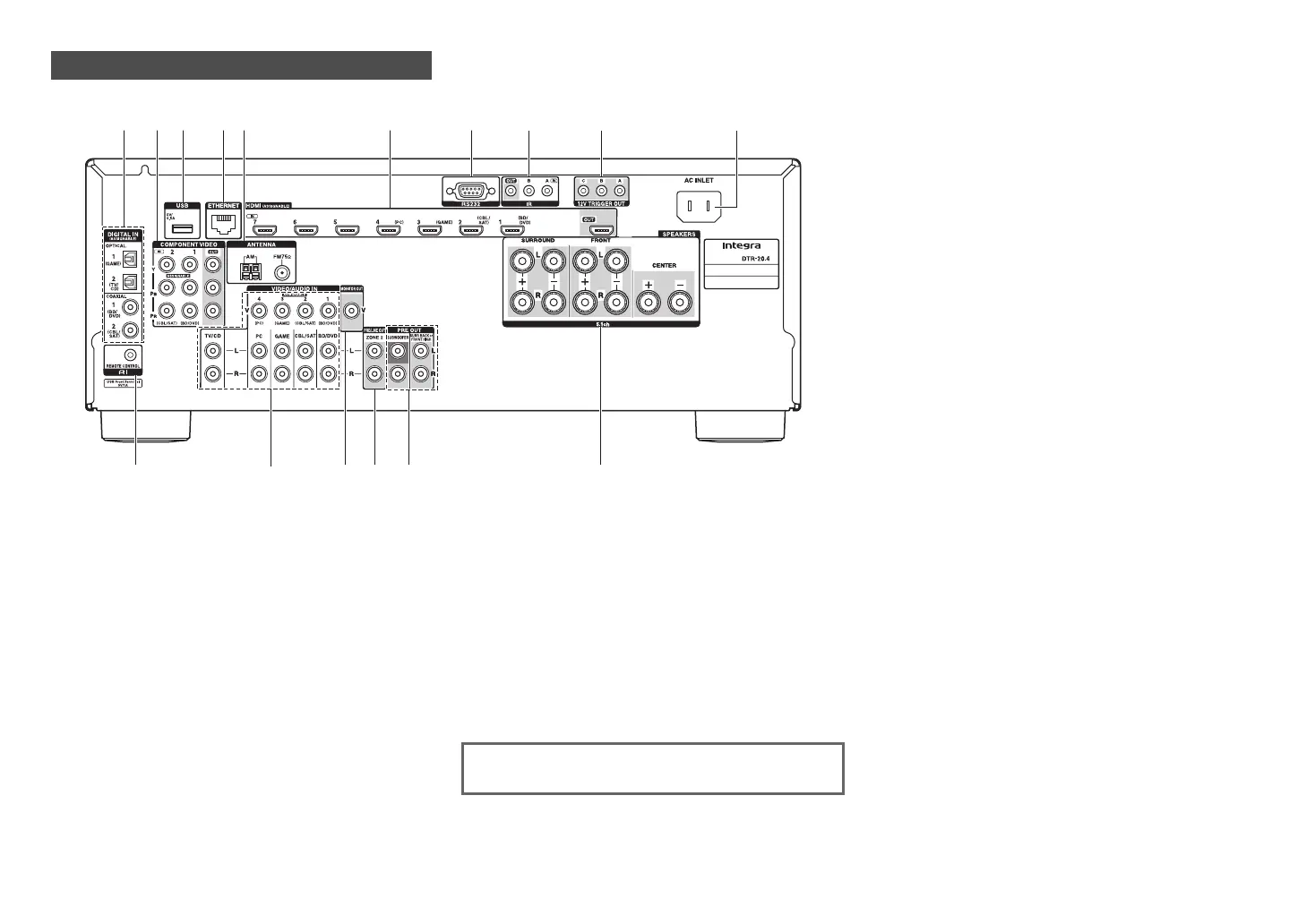

Rear Panel
a eb dc f g
h i
j
k
l
mn
o p
See “Connecting the AV Receiver” for connection
(➔ pages 11 to 17).
