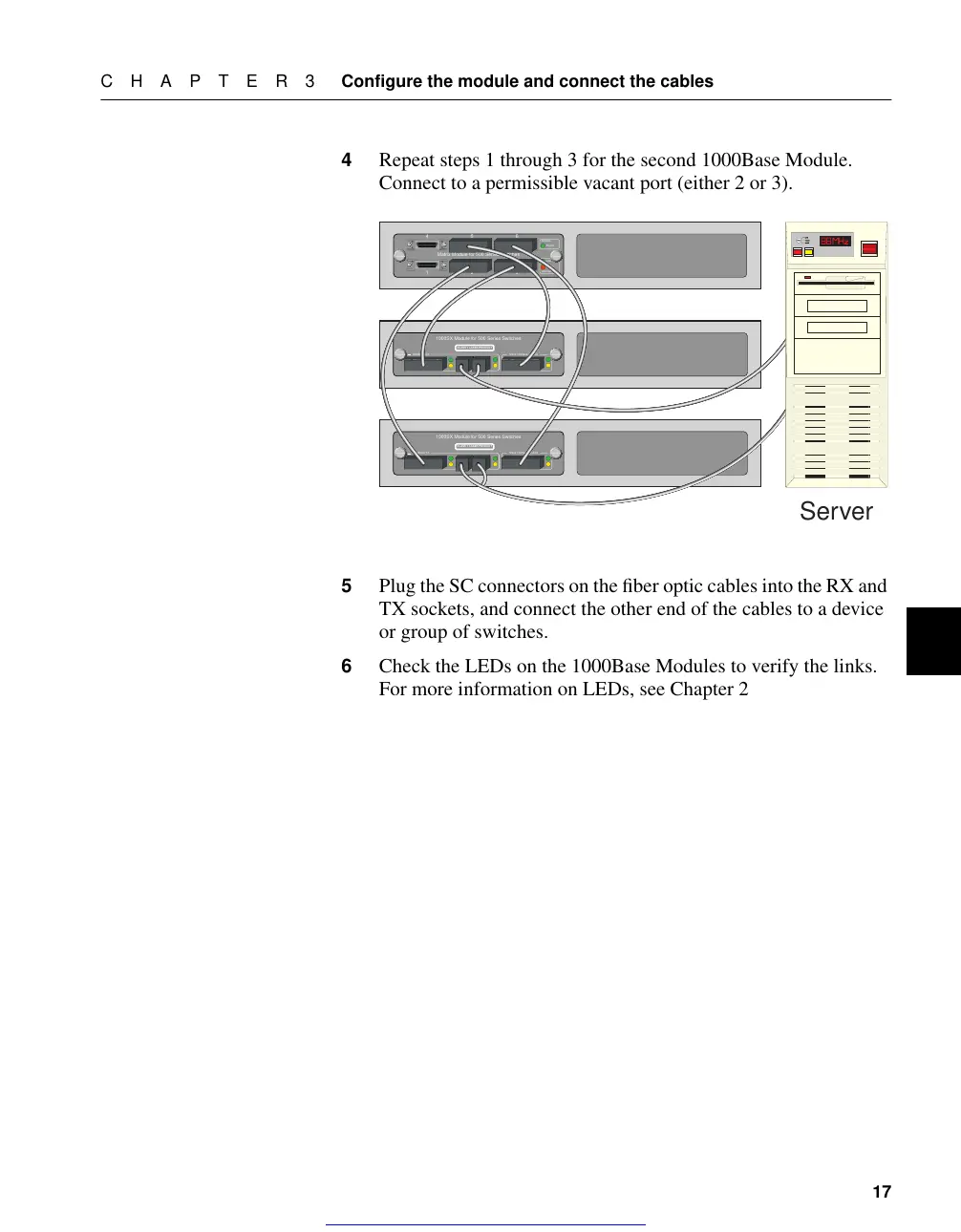

C H A P T E R 3 Configure the module and connect the cables
4 Repeat steps 1 through 3 for the second 1000Base Module.
Connect to a permissible vacant port (either 2 or 3).
5 Plug the SC connectors on the fiber optic cables into the RX and
TX sockets, and connect the other end of the cables to a device
or group of switches.
6 Check the LEDs on the 1000Base Modules to verify the links.
For more information on LEDs, see Chapter 2
1000SX Module for 500 Series Switches
1000Base-SX
Stack Interface Module
CLASS 1 LASER PRODUCT
1000SX Module for 500 Series Switches
1000Base-SX
Stack Interface Module
CLASS 1 LASER PRODUCT
Matrix Module for 500 Series Switches
4
1
5
2
6
3
Module
Status
Link
Status
Internal Port
Server
