Intel 760p series User Manual

Intel® Optane™ Solid State Drive 760p and Pro 7600p Series
January 2018 Installation Guide
337025-001US 7
3 UEFI Configuration and Setup
Enabling the Compatibility Support
This is an example of how to configure the BIOS for CSM support in addition to configuring the boot options to
enable UEFI.
Consult your specific motherboard vendor’s User Guide or support site for the proper settings
Example
ASUS* Prime Z270-A BIOS Configuration
Specifications
Motherboard
ASUS Prime Z270-A*
Chipset
Intel® Z270 Chipset
BIOS Revision
0906 (3/24/2017)
Compatibility Notes
UEFI is a requirement across all windows installations and CSM needs to be enabled for the Windows 7 operating
system.
Windows 8.1/10*
Boot options must be configured to UEFI.
Windows 7*
1. Open CSM (Compatibility Support Module) under the Boot tab
2. Verify that Launch CSM is Enabled
3. Set Boot from Storage Devices and Boot from PCI-E/PCI Expansion Devices to UEFI driverfirst

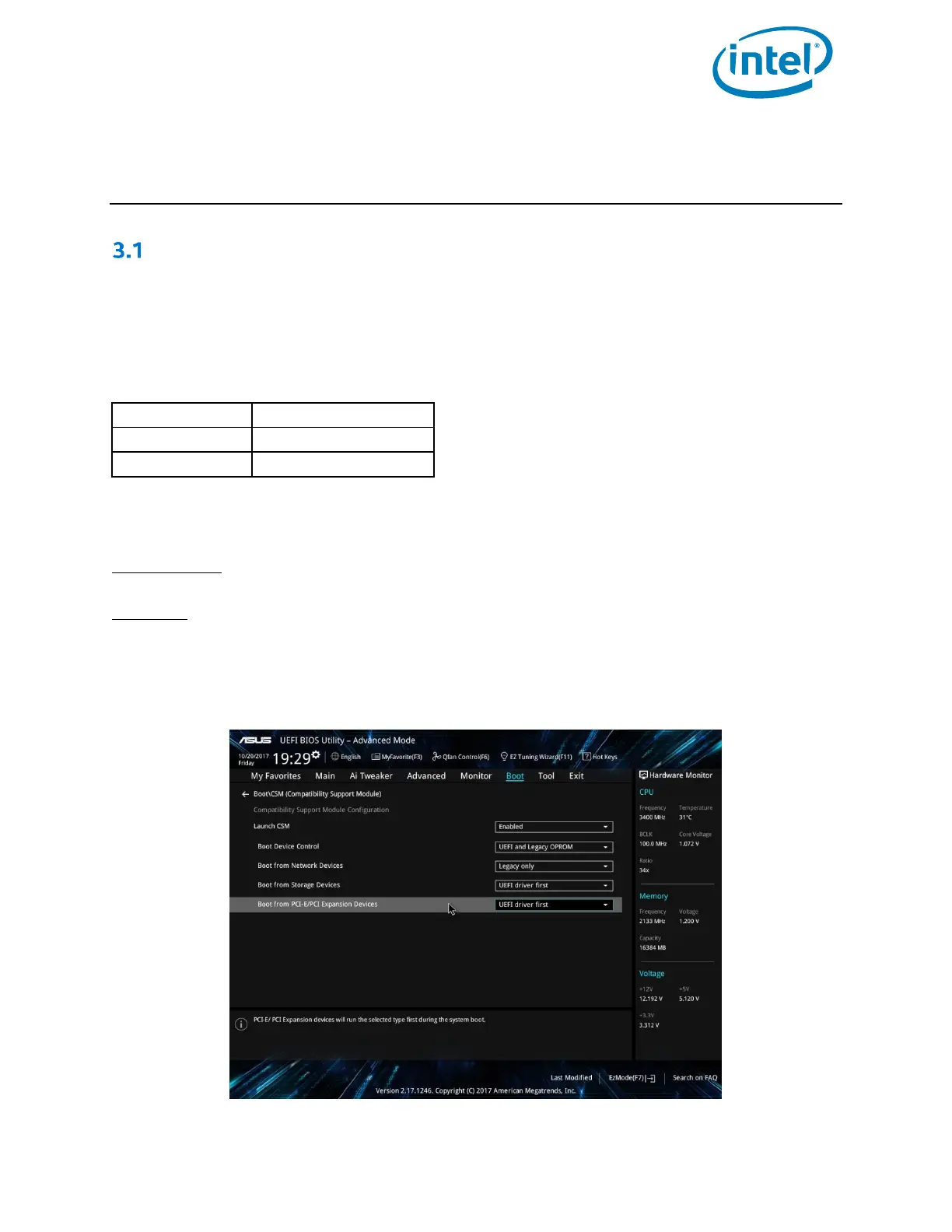

Figure 1: Required Configuration for Windows 7 Boot Support
§

Intel 760p series Specifications

General

Form Factor	M.2 2280
Capacities	128GB, 256GB, 512GB, 1TB, 2TB
Sequential Read	Up to 3230 MB/s
Sequential Write	Up to 1625 MB/s
Random Read IOPS	Up to 340, 000 IOPS
Random Write IOPS	Up to 275, 000 IOPS
Controller	Silicon Motion SM2262
Endurance (TBW) 256GB	144 TBW
Endurance (TBW) 512GB	288 TBW
Endurance (TBW) 1TB	576 TBW
Endurance (TBW) 2TB	1152 TBW
Endurance (TBW) 128GB	72 TBW
Operating Temperature	0°C to 70°C
MTBF	1.6 million hours
Storage Temperature	-40°C to 85°C
Warranty	5 years
Interface	PCIe 3.0 x4, NVMe
NAND Type	3D NAND
Vibration Resistance	2.17 GRMS (Operating)
Shock Resistance	1, 500 G/0.5 ms
