THE

80286

INSTRUCTION SET

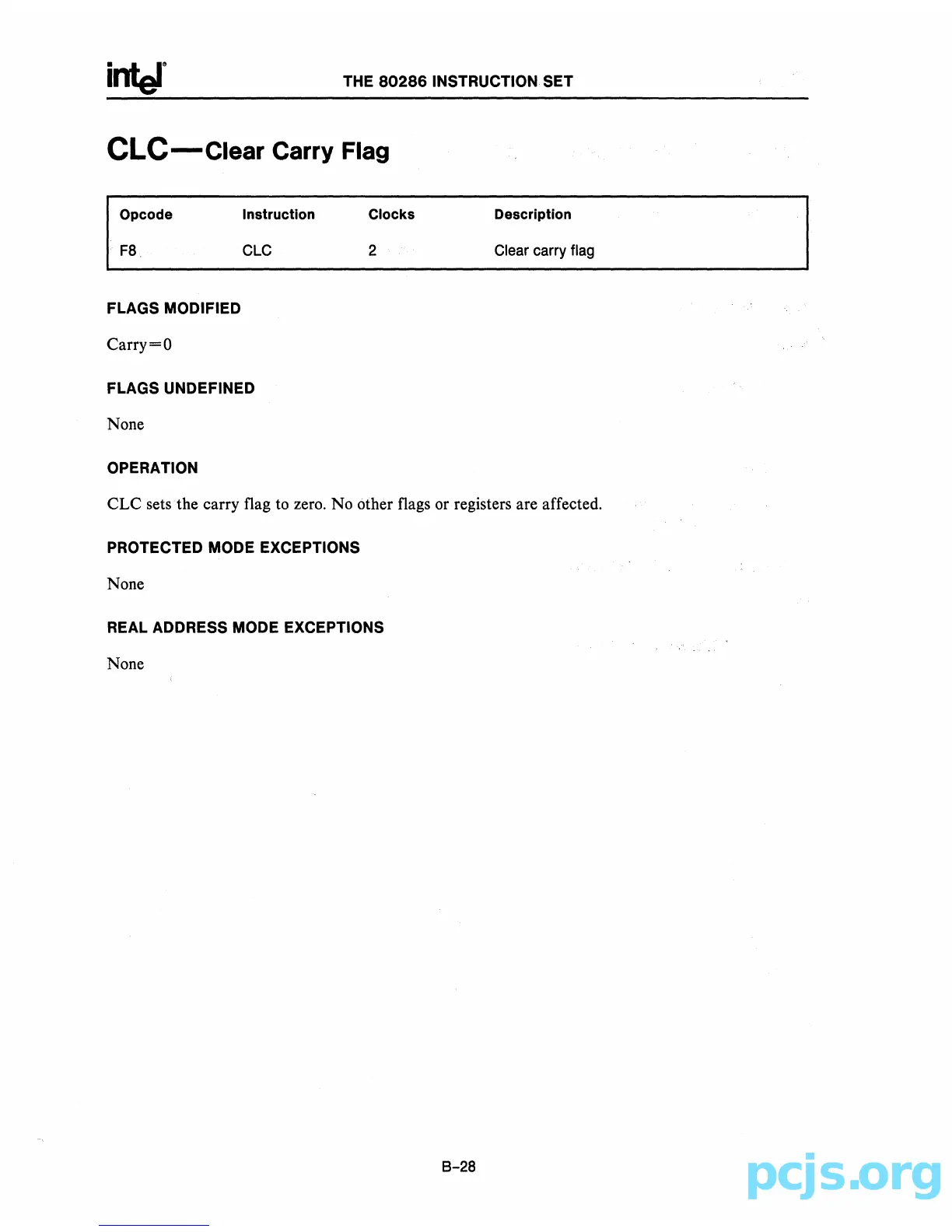

CLC-Clear

Carry

Flag

Opcode

FLAGS MODIFIED

Carry=O

Instruction

CLC

FLAGS UNDEFINED

None

OPERATION

Clocks

Description

Clear carry flag

CLC sets the carry flag

zero. No other flags or registers are affected.

PROTECTED MODE EXCEPTIONS

None

REAL ADDRESS MODE EXCEPTIONS

None

8-28
