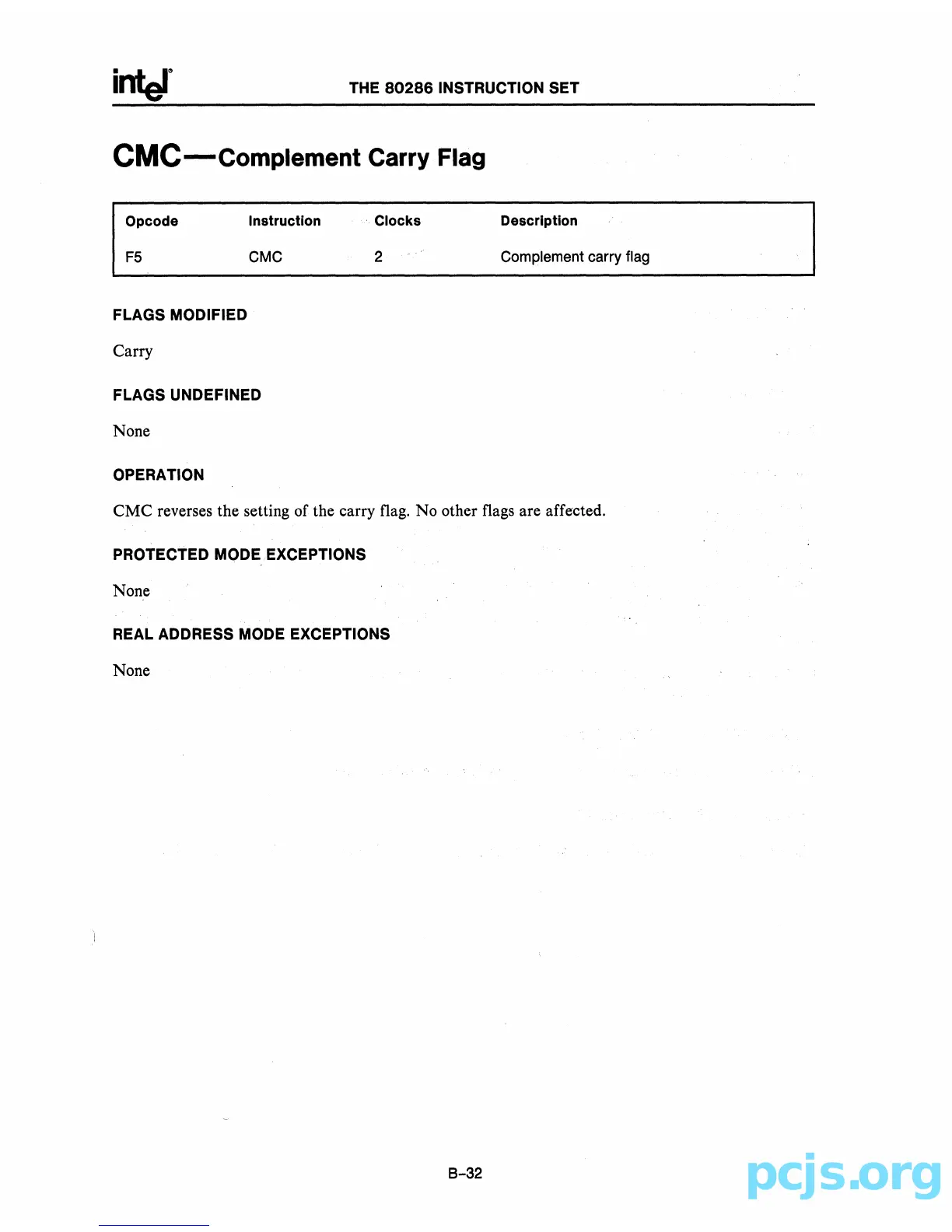

THE

80286

INSTRUCTION SET

CMC-Complement

Carry

Flag

Opcode

FLAGS MODIFIED

Carry

Instruction

CMC

FLAGS UNDEFINED

None

OPERATION

. Clocks

Description

Complement

carry flag

CMC reverses the setting of the carry flag. No other flags are affected.

PROTECTED MODE. EXCEPTIONS

None

REAL ADDRESS MODE EXCEPTIONS

None
