9

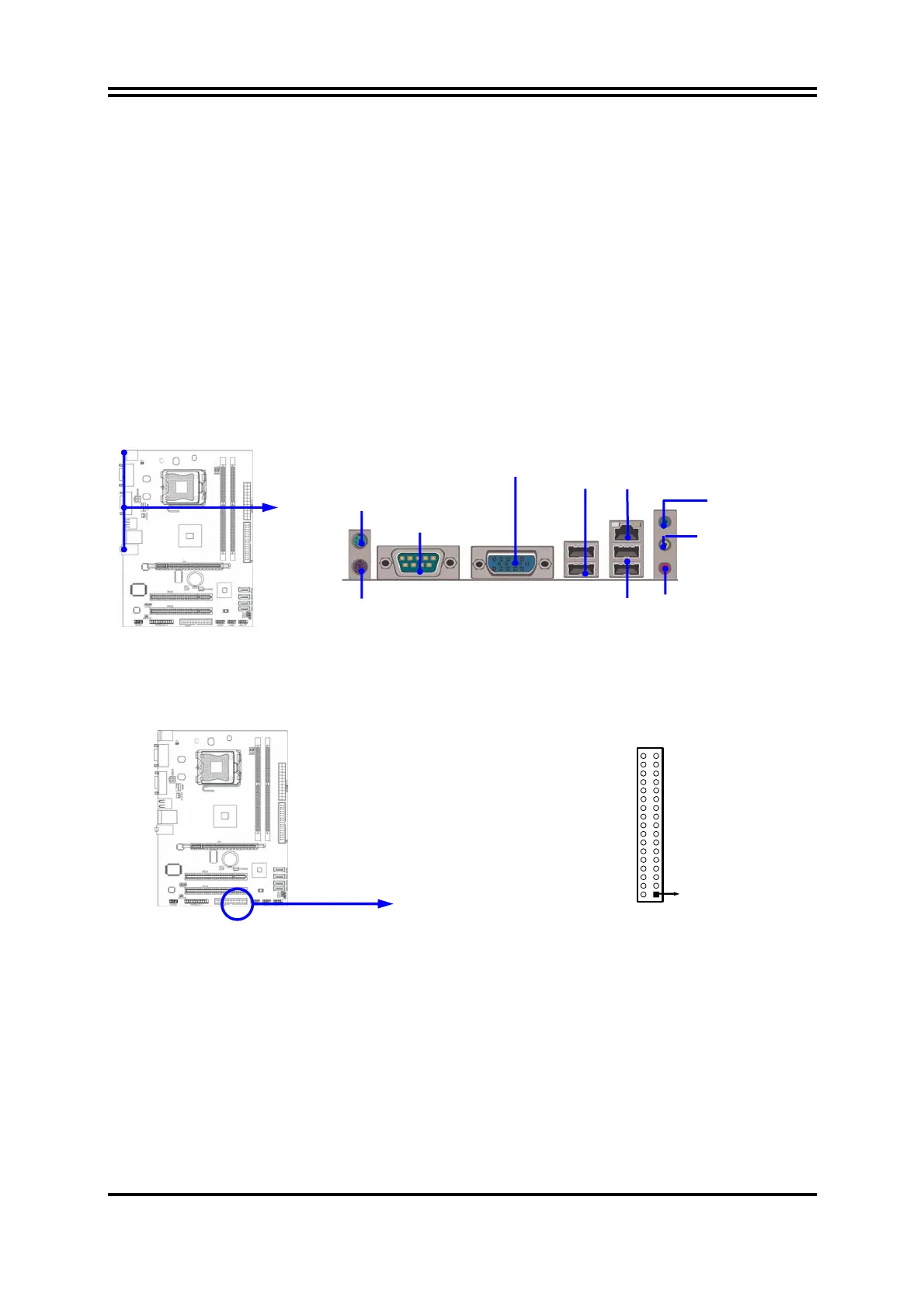

(3) PS/2 Mouse & PS/2 Keyboard Connector: KB1
The connectors are for PS/2 keyboard and PS/2 Mouse.
(4) USB Port connector: USB1, UL1
The connectors are 4-pin connectors that connect USB devices to the system board.
(5) LAN Port connector: UL1
This connector is standard RJ45 connector for Network
The USBLAN1 support 10M/100M bps or 10M/100M bps data transfer rate
。
(6) Audio Line-In, Lin-Out, MIC: AUDIO1
This Connector are 6 phone Jack for LINE-OUT, LINE-IN, MIC.
Line-out : (GREEN)
Audio output to speaker
Line-in : (BLUE)
Audio input to sound chip
MIC : (PINK)
Microphone Connector
(7) Floppy drive Connector (34-pin block): Floppy
This connector supports the provided floppy drive ribbon cable. After connecting the
single plug end to motherboard, connect the two plugs at other end to the floppy drives.
(8) Primary IDE Connector (40-pin block): IDE
This connector connects to the next set of Master and Slave hard disks. Follow the
same procedure described for the primary IDE connector. You may also configure two
hard disks to be both Masters using one ribbon cable on the primary IDE connector and
another ribbon cable on the secondary IDE connector.
Floppy Drive Connector
Pin 1
FDD
UL2
PS/2
Mouse
USB1
PS/2
Keyboard
Line-IN
Line-OUT
MIC-IN
VGA
COM
