NOTE!
When you install DIMM module fully into the DIMM socket the eject tab
should be locked into the DIMM module very firmly and fit into its
indention on both sides.
2-3 Expansion Cards
The 946GZ motherboard series offer one PCI-Express x16 graphics slot of 4Gbyte/sec data
transfer rate at each relative direction which gets 3.5 times of bandwidth more than AGP 8X
and it’s up to a peak concurrent bandwidth of 8Gbyte/sec at full speed to guarantee the
ultimate GPU computing performance. Two 32-bit PCI slots guarantee the rich connectivity
for the I/O of peripherals. The motherboards are designed of tackling the profuse multimedia
requirements nowadays..

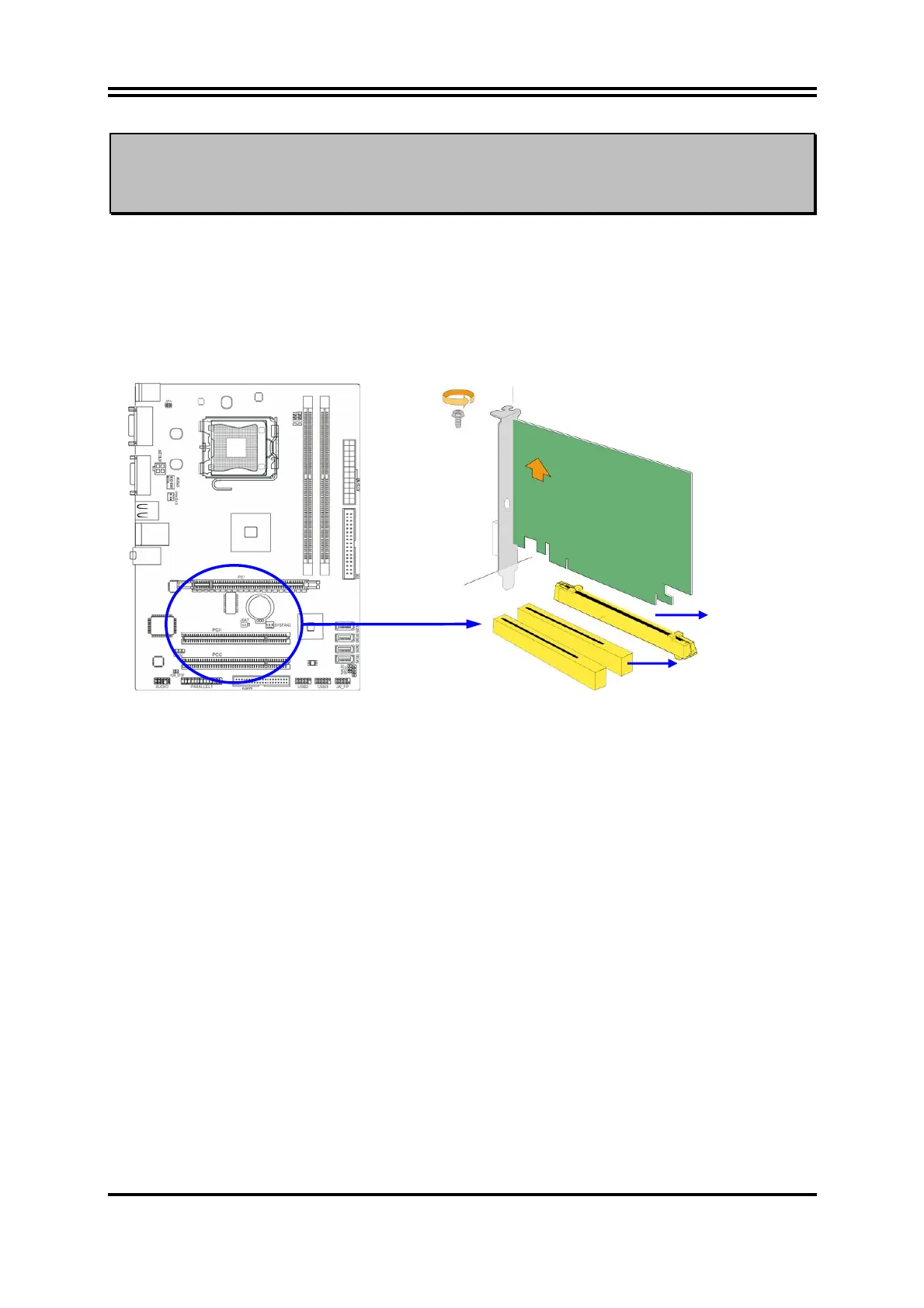

PE1 / PCI-E x16 Slot
32-bit PCI Slot

Intel 946GZ Specifications

General

Chipset	Intel 946GZ
Socket	LGA 775
Memory Type	DDR2
Max Memory	4 GB
PCI Express Revision	1.0a
PCI Express Configurations	1x16
Graphics Base Frequency	400 MHz
Southbridge	Intel ICH7
USB Revision	2.0
Max USB Ports	8
SATA Ports	4
IDE Support	Yes
Audio Technology	Intel High Definition Audio
LAN Speed	10/100 Mbps
FSB Support	800/533 MHz
Supported CPU	Intel Pentium 4
Front Side Bus	800/533 MHz
Memory Channels	Single
Graphics	Intel Graphics Media Accelerator 3000
