Intel Desktop Board DH67CL Technical Product Specification
42
2.2.1 Back Panel Connectors

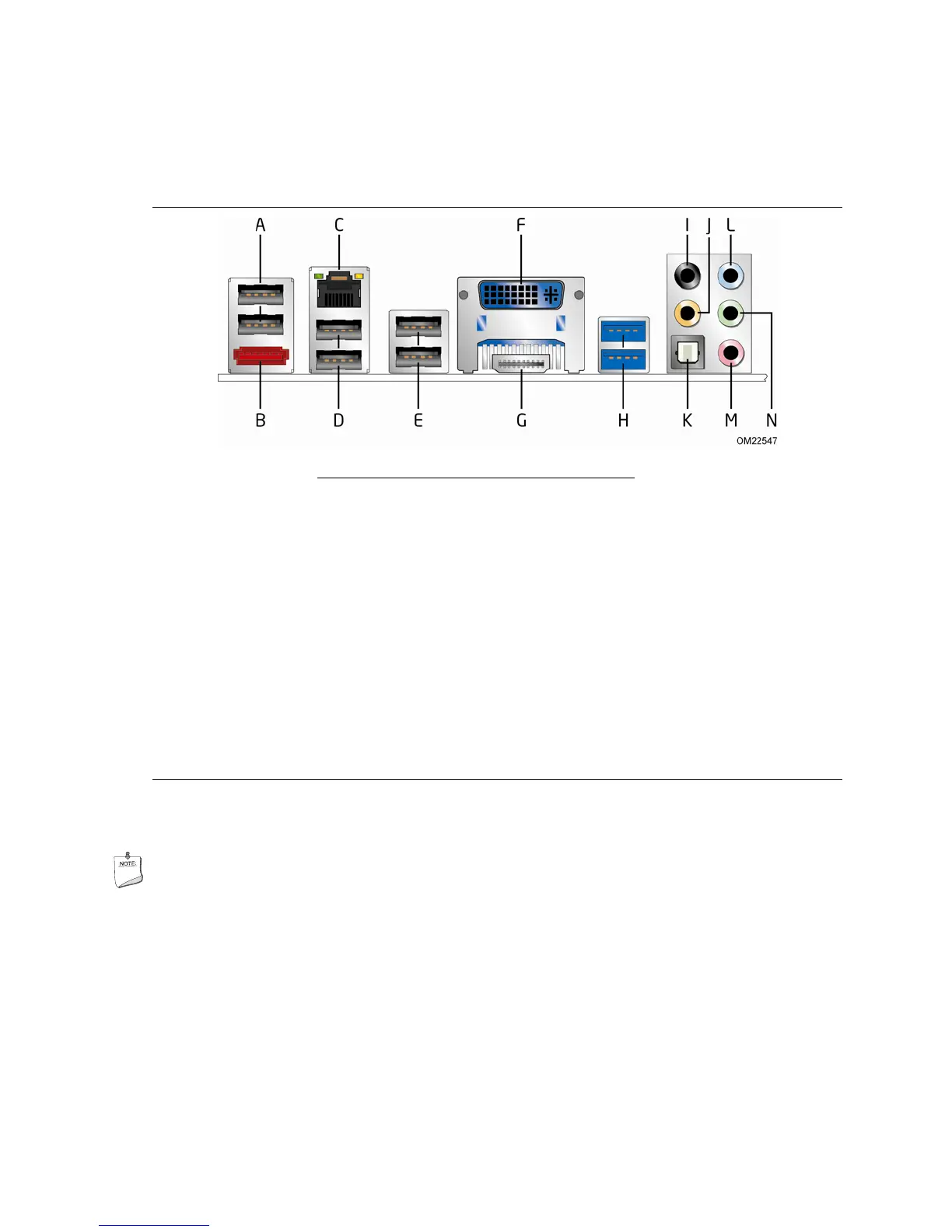

Figure 9 shows the location of the back panel connectors for the board.
Item Description
A USB 2.0 ports
B eSATA connector
C LAN port
D USB 2.0 ports
E USB 2.0 ports
F DVI-I connector
G HDMI connector
H USB 3.0 ports
I Rear surround
J Center channel and LFE
(subwoofer)
K S/PDIF out (optical)
L Line in
M Mic in/side surround
N Line out/front speakers
Figure 9. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
