Intel Desktop Board DG43GT Product Guide
38
Installing DIMMs
To make sure you have
the correct DIMM, place it on the i
llustration of the DDR2
DIMM in
Figure 16.
All the notches shoul
d match with the
DDR2 DIMM.

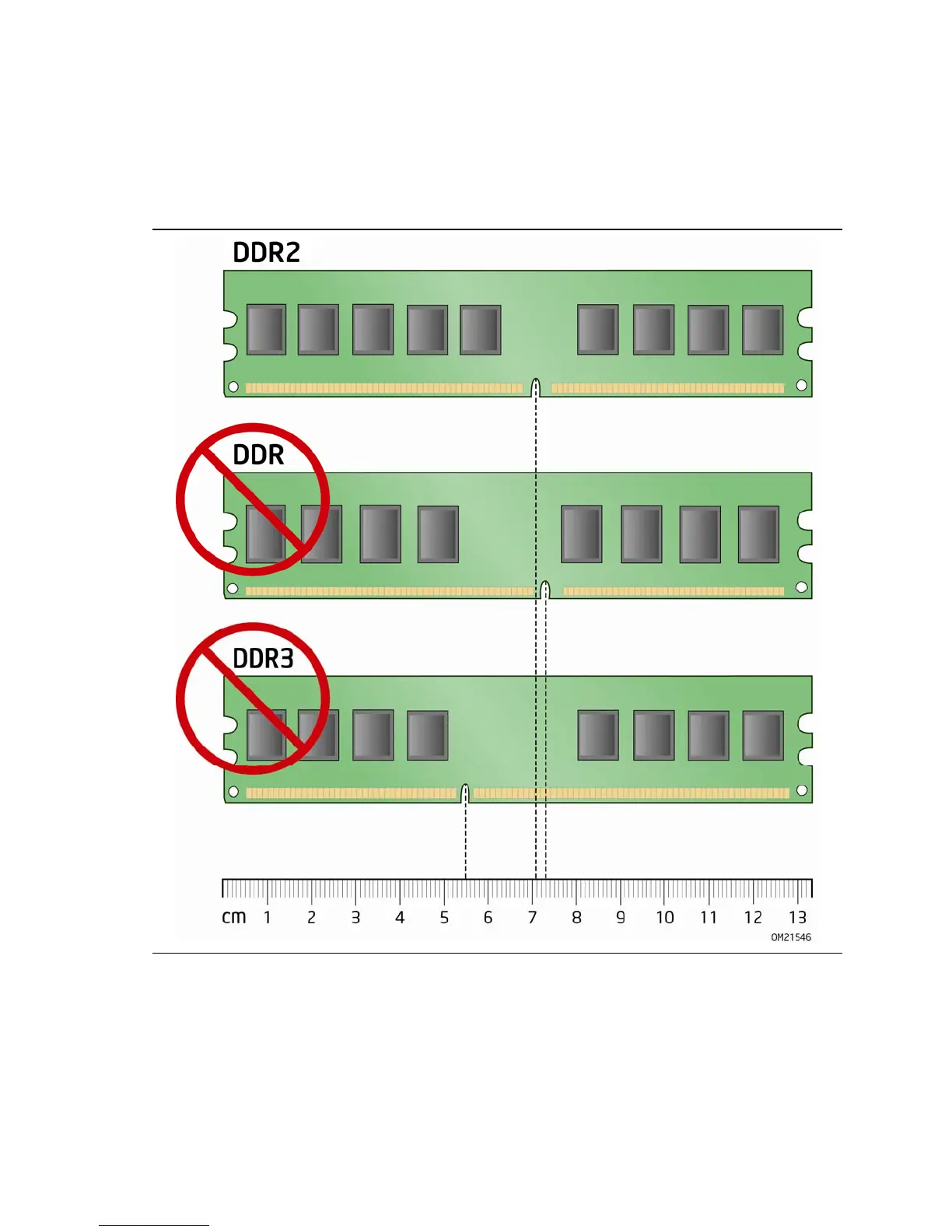

Figure 16. Use DDR
2 DIMMs
37
39
