Installing and Replacing Desktop Board Components
45
Connecting Serial ATA (SATA) Cables
SATA cables support the Serial ATA (SATA) protocol. Each cable can be used to
connect a single SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in "Before You Begin" on page 27.
2. Attach one end the SATA cable to
one of the SATA connectors on the board
(Figure 21, A).
3. Attach the
other end of the SATA
cable to the SATA drive (Figure 21, B).

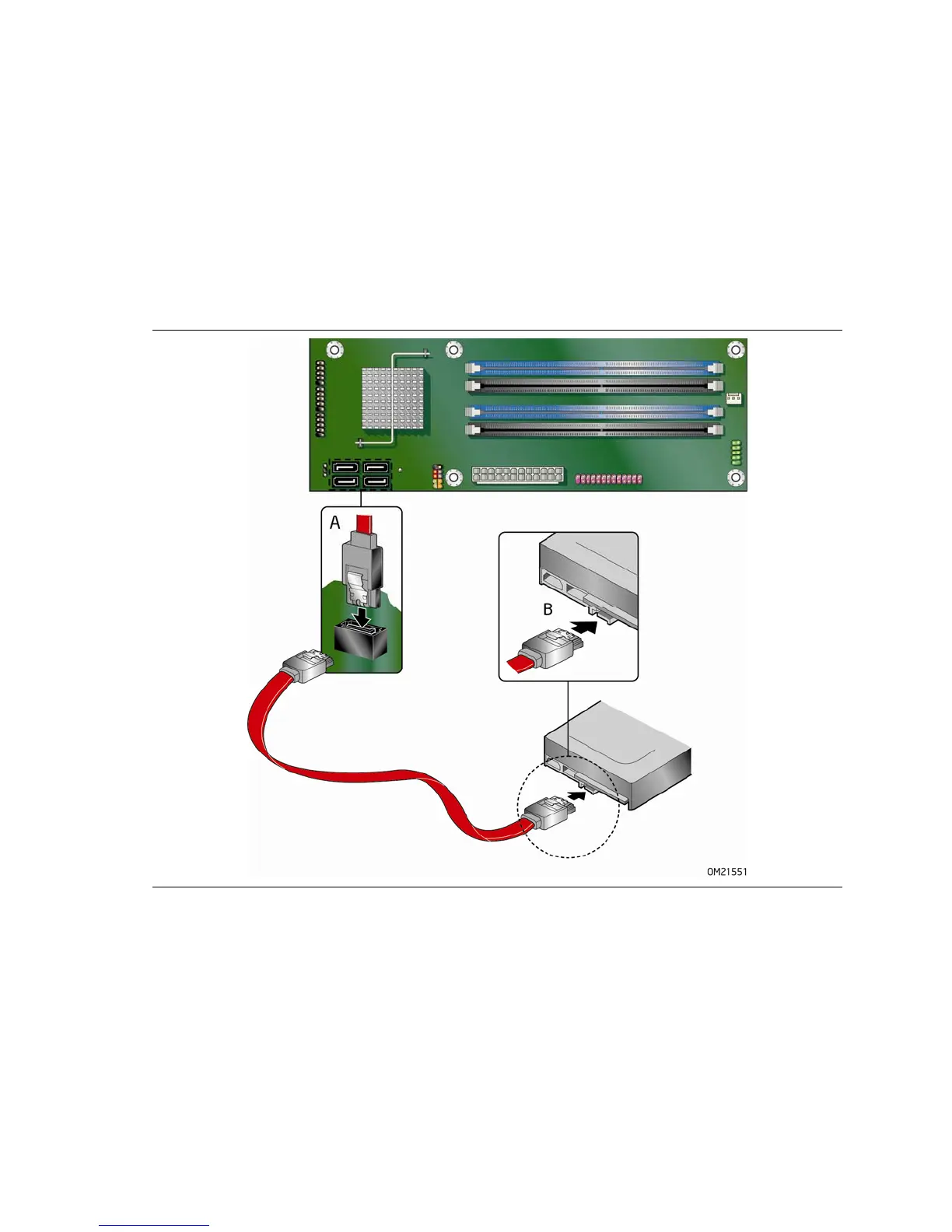

Figure 21. Connecting a Serial ATA Cable
