Installing and Replacing Desktop Board Components
33
5. Remove the processor from the protective processor cover. Hold the processor
only at the edges, being careful not to touch the bottom of the processor (see
Figure 12). Do not discard the
protective processor cover. Always replace the
processor cover if the processor is removed from the socket.

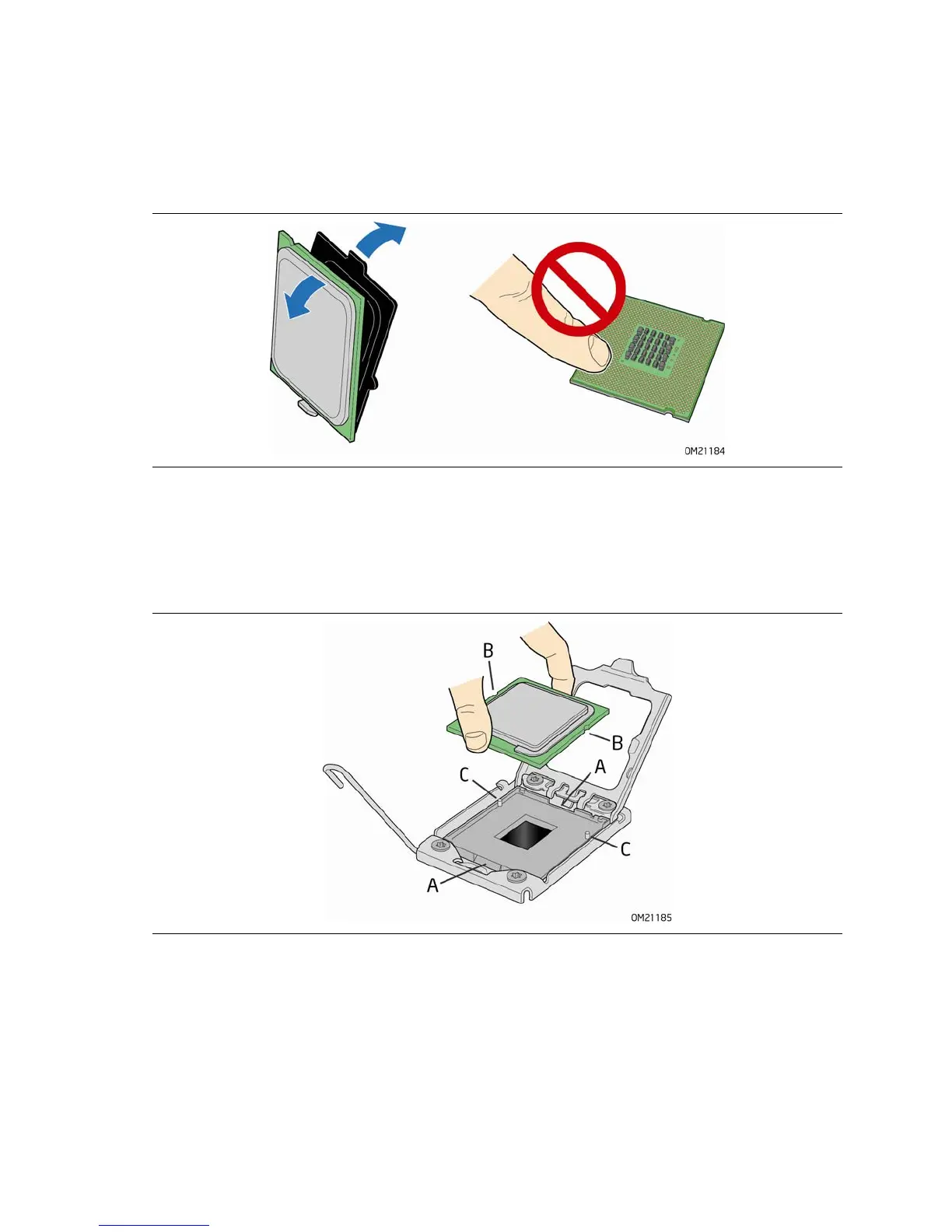

Figure 12. Remove the Processor from the Protective Processor Cover
6. Hold the processor with your thumb and index finger oriented as shown in
Figure 13. Make sure your fingers align to the socket cutouts (Figure 13, A). Align
notches
(Figure 13, B) with the posts on the socket (Figure 13, C). Lower the
processor straigh
t down without tilting or sliding it in the socket.
Figure 13. Install the Processor
