Intel Desktop Board DX58SO Product Guide
52
Connecting to the Audio System
After installing the RealTek audio driver from the Intel
®
Express Installer DVD-ROM,
the multi-channel audio feature can be enabled. Figure 28 shows the back panel audio
connectors
. The default connector assignments are shown in the table.
Item Description
A Surround Left and Right
B Center Channel and LFE (Subwoofer)
C Side Surround Left and Right/Line
In/Retasking Jack
D Line Out
E Mic In
F S/PDIF Digital Audio Out (Optical)

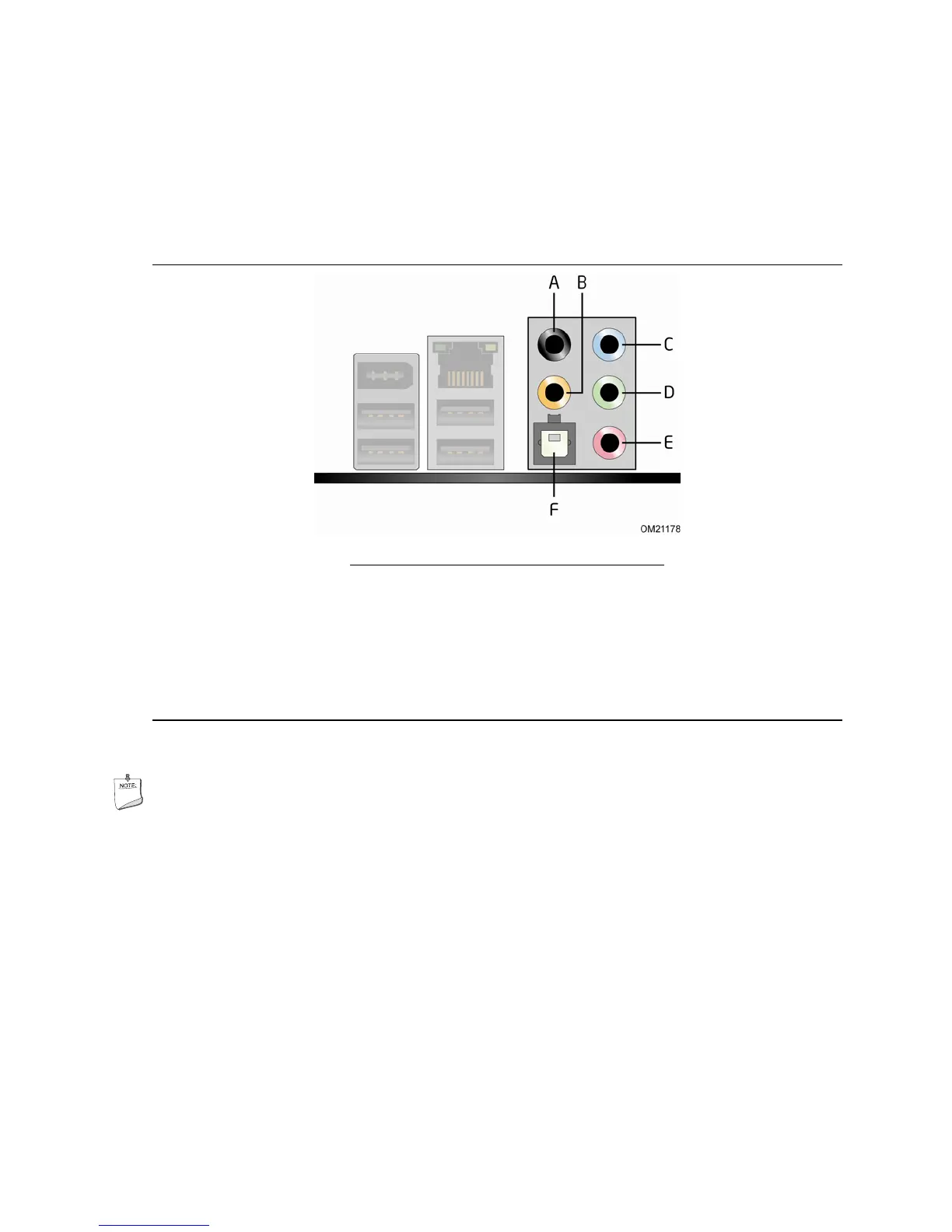

Figure 28. Back Panel Audio Connectors
NOTE
The back panel line out connector is designed to power either headphones or amplified
speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.
