Installing and Replacing Desktop Board Components
53
Connecting Chassis Fan and Power Supply
Cables
Connecting Chassis Fan Cables
Connect chassis fan cables to
the 3-pin and 4-pin chassis fan header
s on the Desktop
Board.
Figure 29 shows the location of
the
chassis fan headers.

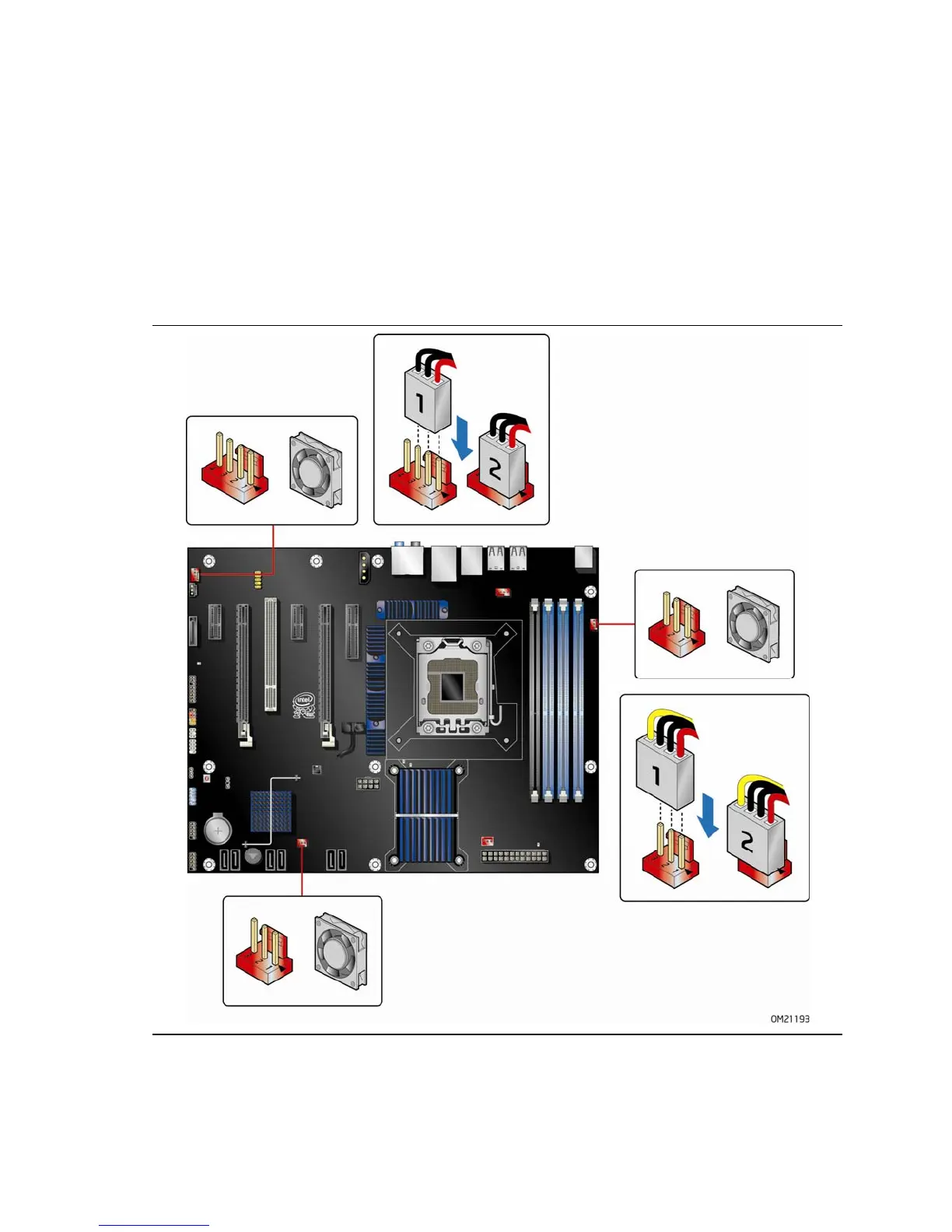

Figure 29. Location of t
he Chassis Fan Headers
52
54
