Development Kit User’s Manual
Hardware Reference
4.2 Back Panel Connectors
Note: Many of the connectors provide operating voltage (+5 V DC and +12 V DC, for example) to
devices inside the computer chassis, such as fans and internal peripherals. Most of these connectors
are not over-current protected. Do not use these connectors for powering devices external to the
computer chassis. A fault in the load presented by the external devices could cause damage to the
computer, the interconnecting cable, and the external devices themselves.
This section describes the Intel
®
945GM Express Chipset panel connectors on the Intel
®
945GM
Express Chipset platform.

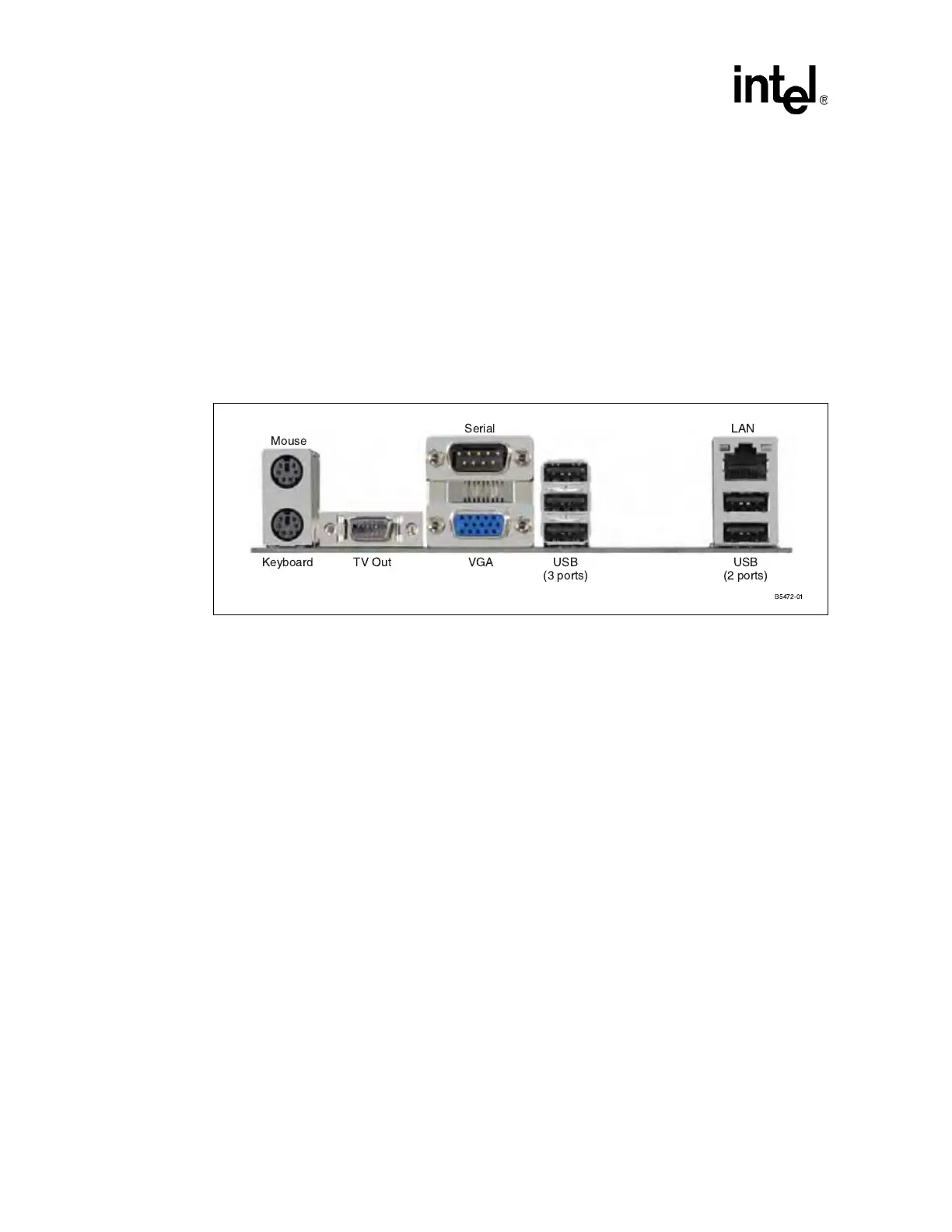

Figure 3 shows the back panel connectors to the Intel
®
945GM Express Chipset platform.
Figure 3. Back Panel Connector Locations




 

 
  !" #

Intel Core Duo Mobile 945GM Specifications

General

Model	Intel Core Duo Mobile 945GM
Code Name	Yonah
Manufacturing Technology	65 nm
Number of Cores	2
FSB Speed	667 MHz
L2 Cache	2 MB shared
Core Stepping	C0
Clock Speed	1.66 GHz
L1 Cache	64 KB (32 KB data + 32 KB instruction) per core
Features	Execute Disable Bit
Family	Core
Instruction Set	x86
Architecture	32-bit
