62 Mobile Intel
®
945GM Express Chipset
Development Kit User’s Manual
Heat Sink Installation Instructions
8. Plug the fan connector for the heatsink onto the CPU fan header (J3C1) on the motherboard.

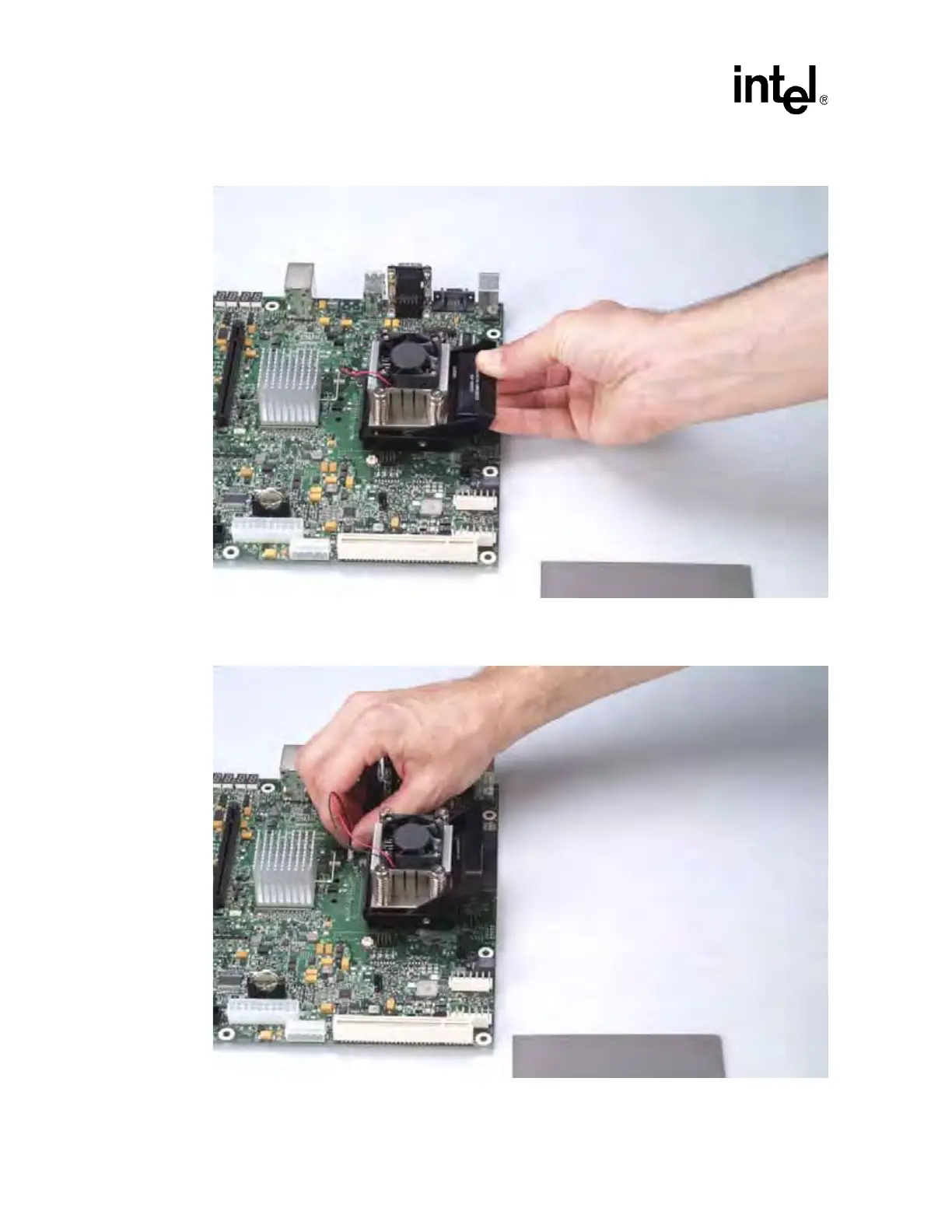

Figure 10. Installing the Heatsink
Figure 11. Plugging in the Fan
