Installing and Replacing Desktop Board Components
27
Installing and Removing Memory
NOTE
To be fully compliant with all applicable Intel SDRAM memory specifications, the
boards require DIMMs that support the Serial Presence Detect (SPD) data structure.
You can access the PC Serial Presence Detect Specification at:
http://www.intel.com/technology/memory/ddr/specs/dda
18c32_64_
128x72ag_a.pdf
The Desktop Board has one 240-pin DDR2 DIMM socket.
Installing DIMMs

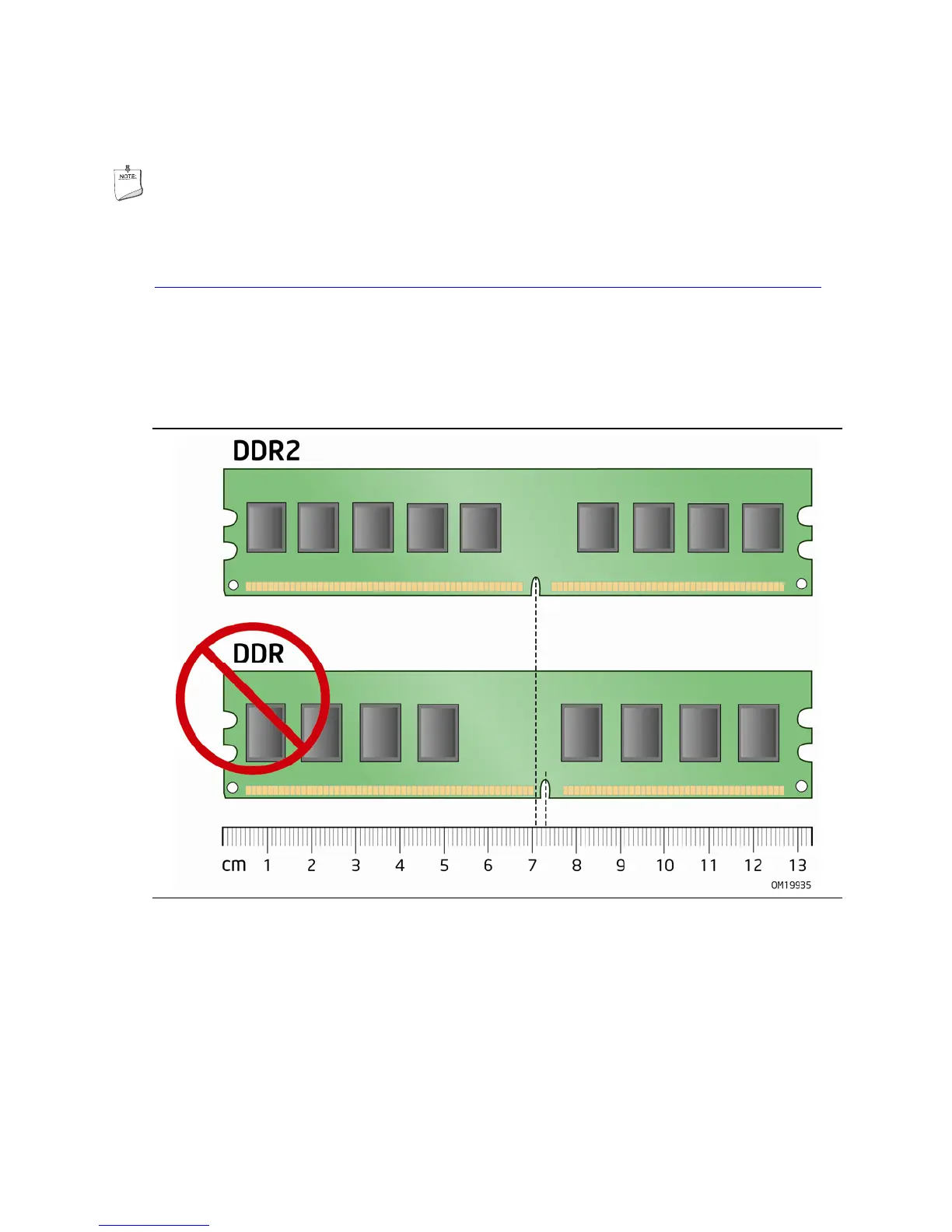

To make sure you have the correct DIMM, place it on the illustration in Figure 7
showing the DDR2 DIMM. All the notches should match the DDR2 DIMM.
Figure 7. Use DDR2 DIMMs
