Installing and Replacing Desktop Board Components
31
Connecting the Serial ATA (SATA) Cable
The SATA cable supports the Serial ATA protocol and connects a single drive to the
desktop board. For correct cable function:
1. Observe the precautions in "Before You Begin" on page 23.
2. Attach the locking cable end to the
connector on the board (Figure 10, A).
3. Attach the cable end without the lock to the
drive (Figure 10, B).

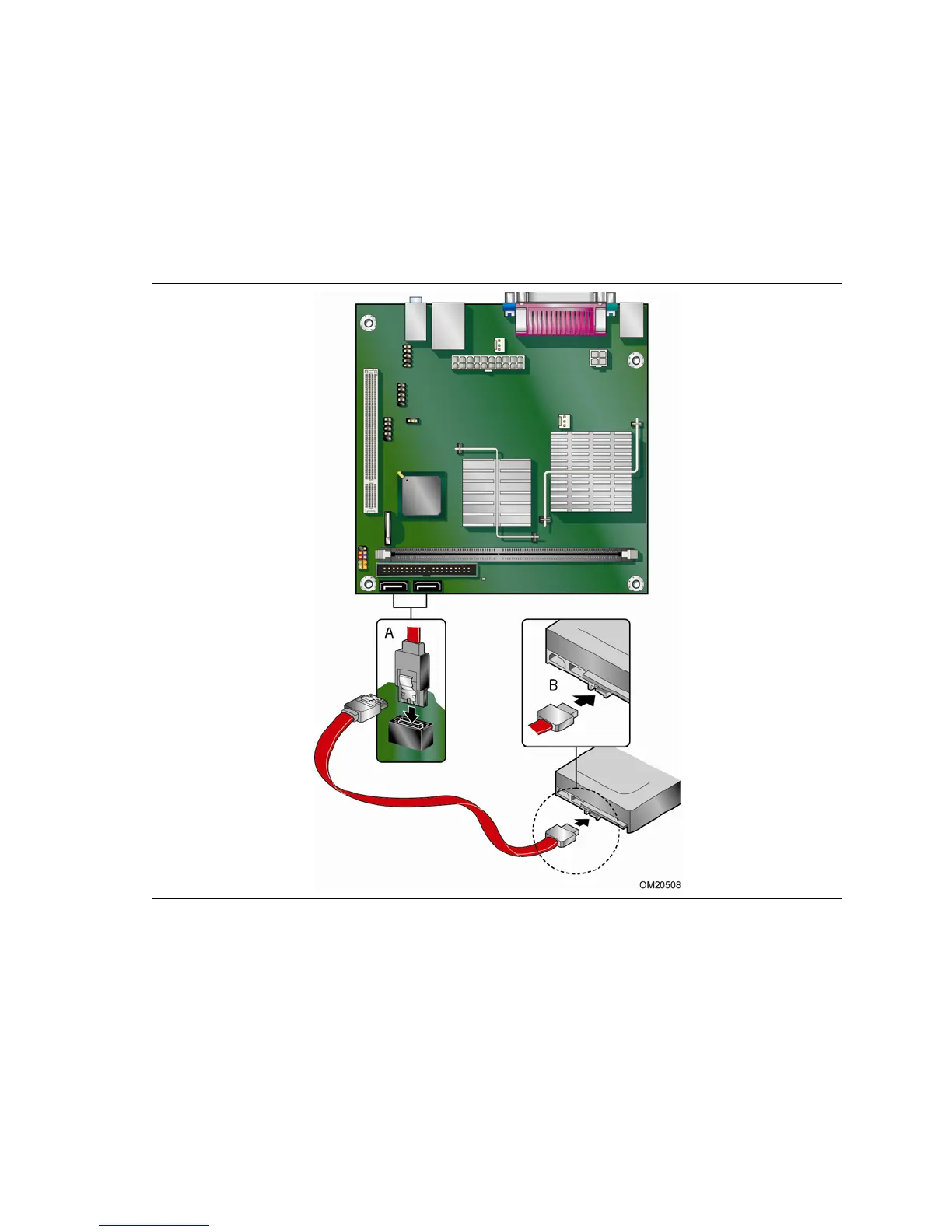

Figure 10. Connecting the Serial ATA Cable
