Intel Desktop Board D201GLY2 Product Guide
36
Connecting Power Supply Cables
CAUTION
Failure to use an appropriate power supply and/or not connecting the 12 V (2 x 2)
power connector to the Desktop Board may result in damage to the board or the
system may not function properly.
Figure 13 shows the location of the power connectors.

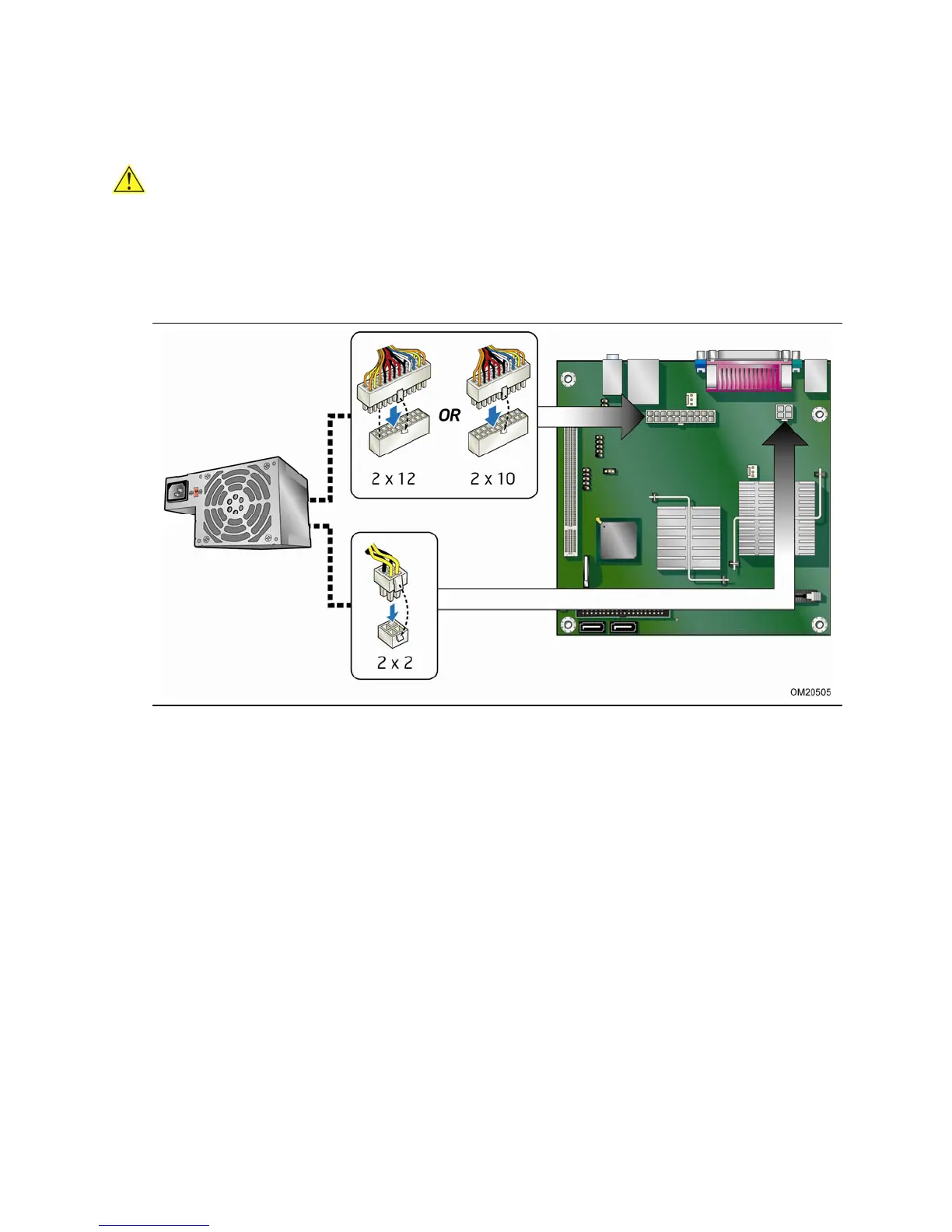

Figure 13. Connecting a 2 x 10 or 2 x 12 Power Supply Cable
1. Observe the precautions in "Before You Begin" on page 23.
2. Connect the 12 V processor core voltage power supply cable to the 2 x 2 connector
(Figure 13).
3. Connect
the
main power supply cable (2 x10 or 2 x 12) to the 2 x 10 connector
(Figure 13).
