Intel Desktop Board D201GLY2 Product Guide
44
To replace the battery, follow these steps:
1. Observe the precautions in "Before You Begin" (see page 23).
2. Turn off all peripheral devices connected to th
e computer. Disconnect the
computer’s power cord from the AC power source (wall outlet or power adapter).
3. Remove the computer cover.
4. Locate the battery on the board (see Figure 15).
5. P
u
sh the battery retention clip aside and remove the battery from the connector as
shown in Figure 15. Note the orientation of the “+” and “-” on the battery.
6. Instal
l
the new battery in the connector, making sure to orient the “+” and “-”
correctly.
7. Replace the computer cover.

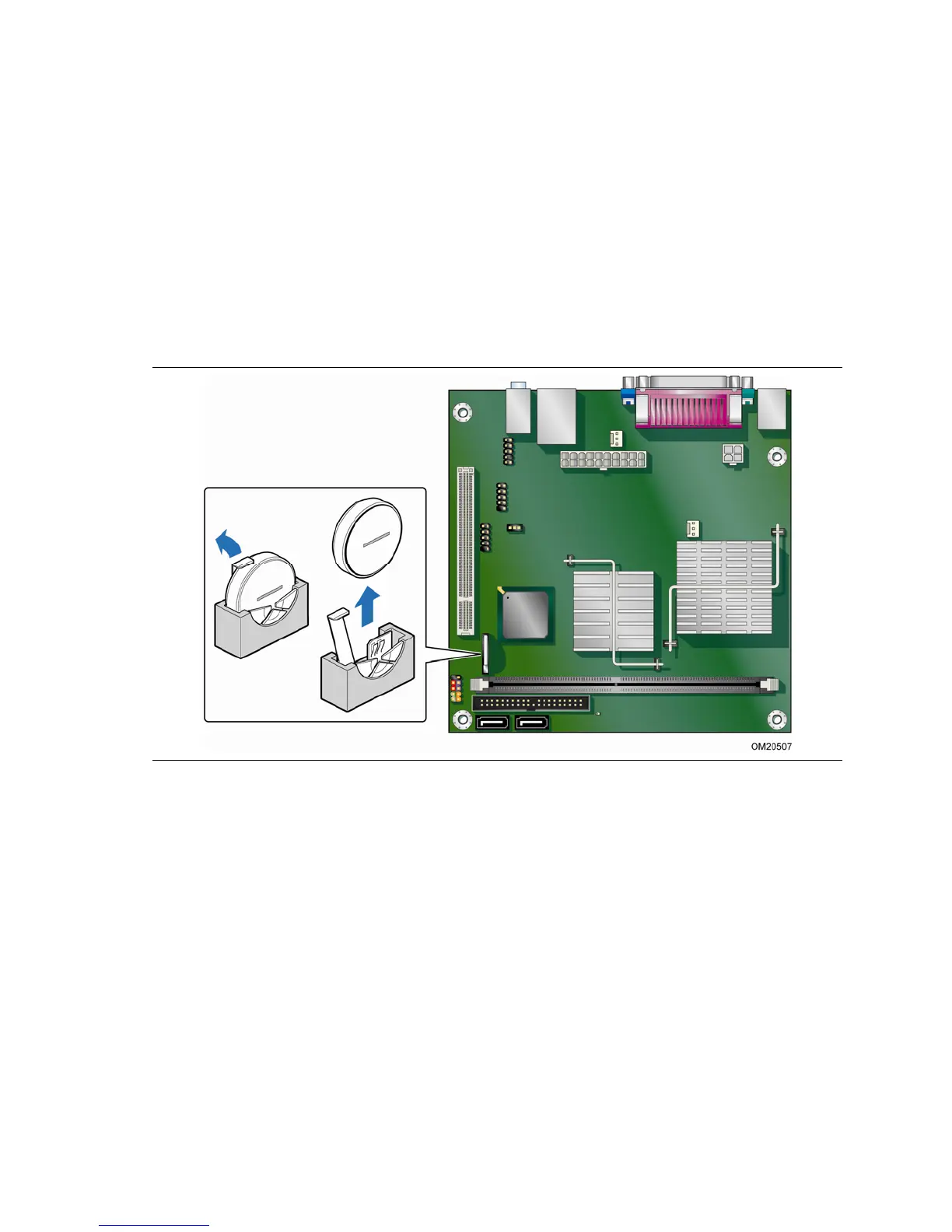

Figure 15. Removing the Battery
