Product Description
13
1.1.2 Board Layout (Top)

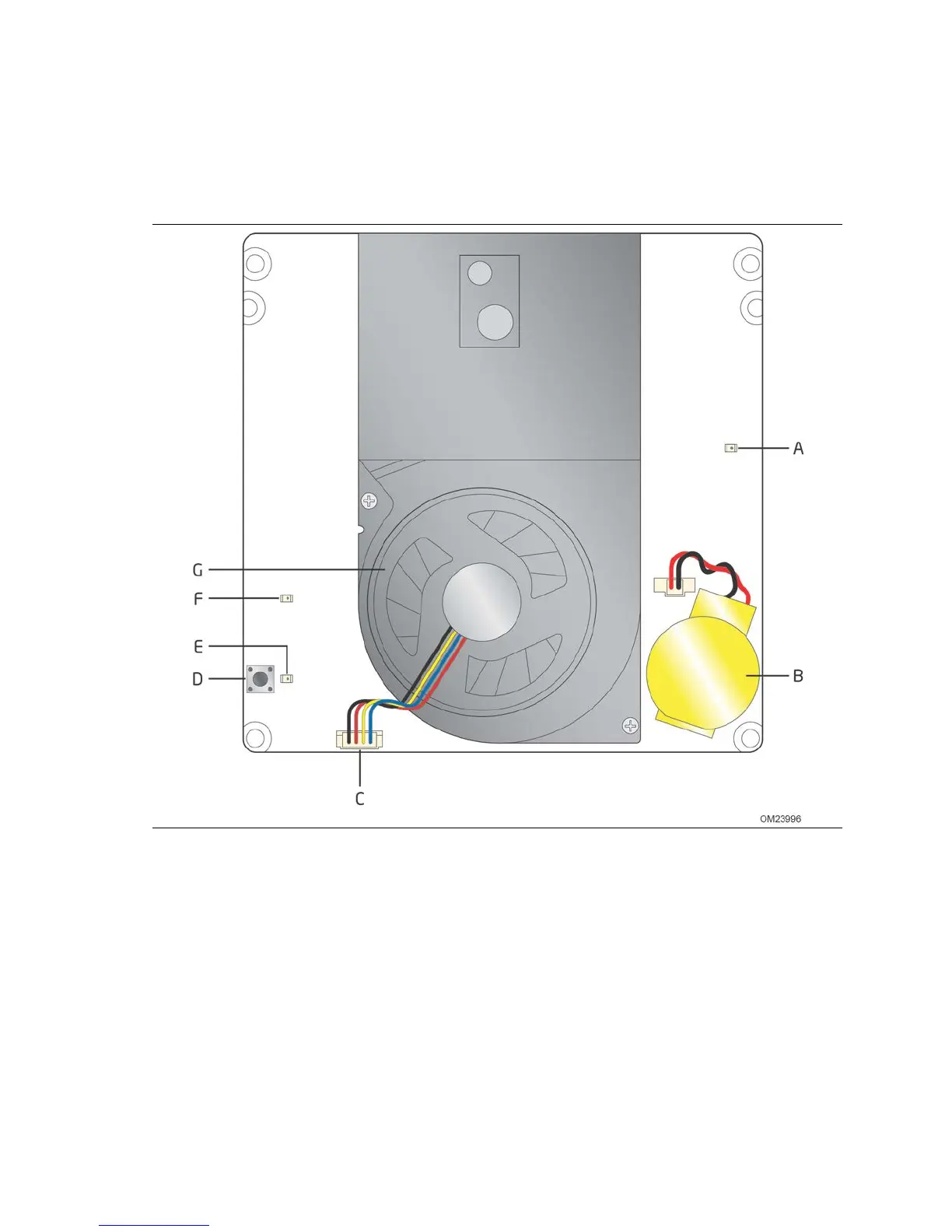

Figure 1 shows the location of the major components on the top-side of Intel NUC
Board D53427RKE.
Figure 1. Major Board Components (Top)
