2.2.2 Connectors and Headers (Bottom)
Figure 10 shows the locations of the connectors and headers on the bottom-side of the
board.

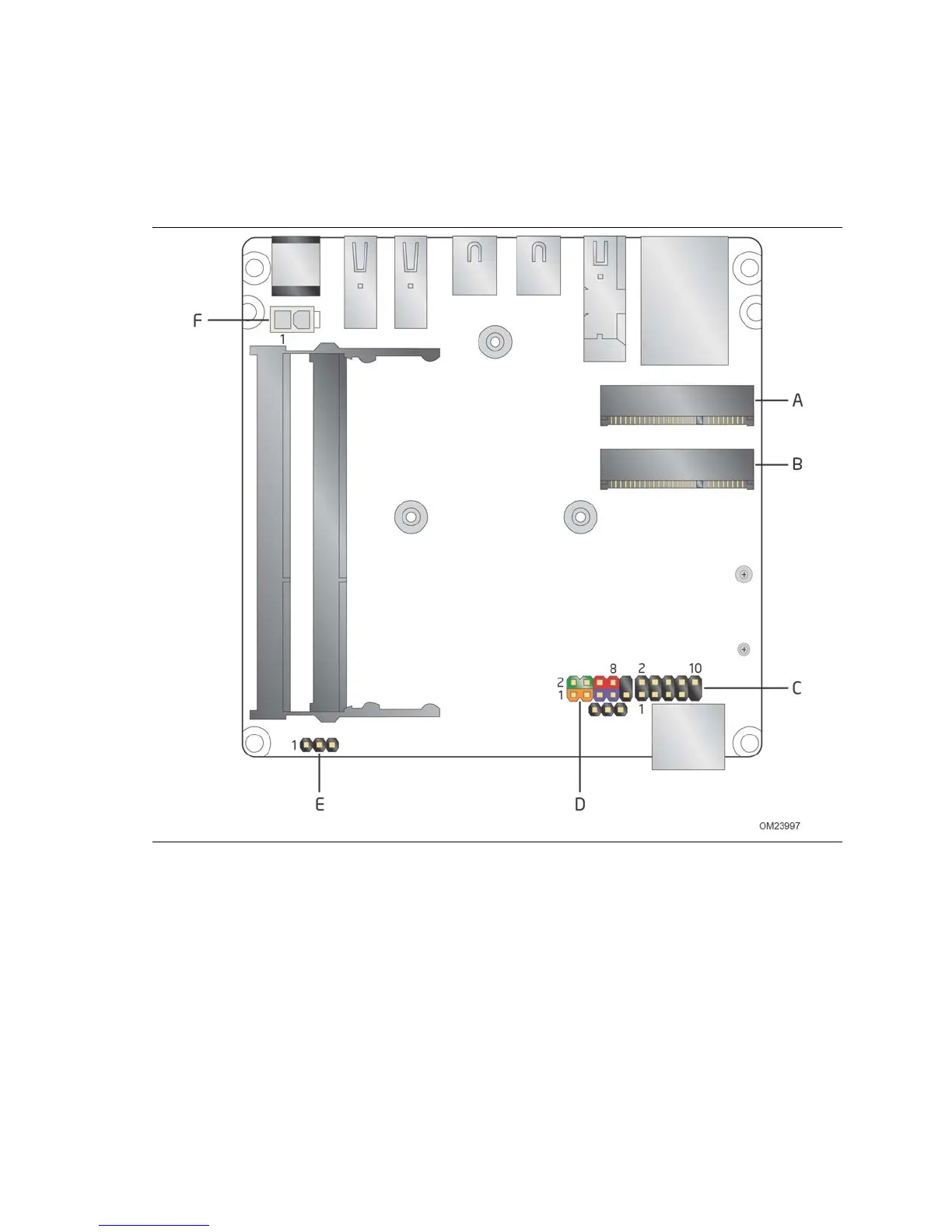

Figure 9. Connectors and Headers (Bottom)
