Removing the AGP Card Retention Mechanism
The removal instructions below are for AGP card retention mechanisms that cannot easily be
snapped off the board.
CAUTION
Once removed using this method, the AGP RM cannot be reused.
Follow these instructions to remove the AGP card retention mechanism (see Figure 7):
1. Using side-cutters (A), cut the loop (B) joining the two sides of the retention mechanism.
2. Spread the sides of the retention mechanism (C) and lift the retention mechanism off of the
AGP universal connector.
OM10113
A
B
c
c

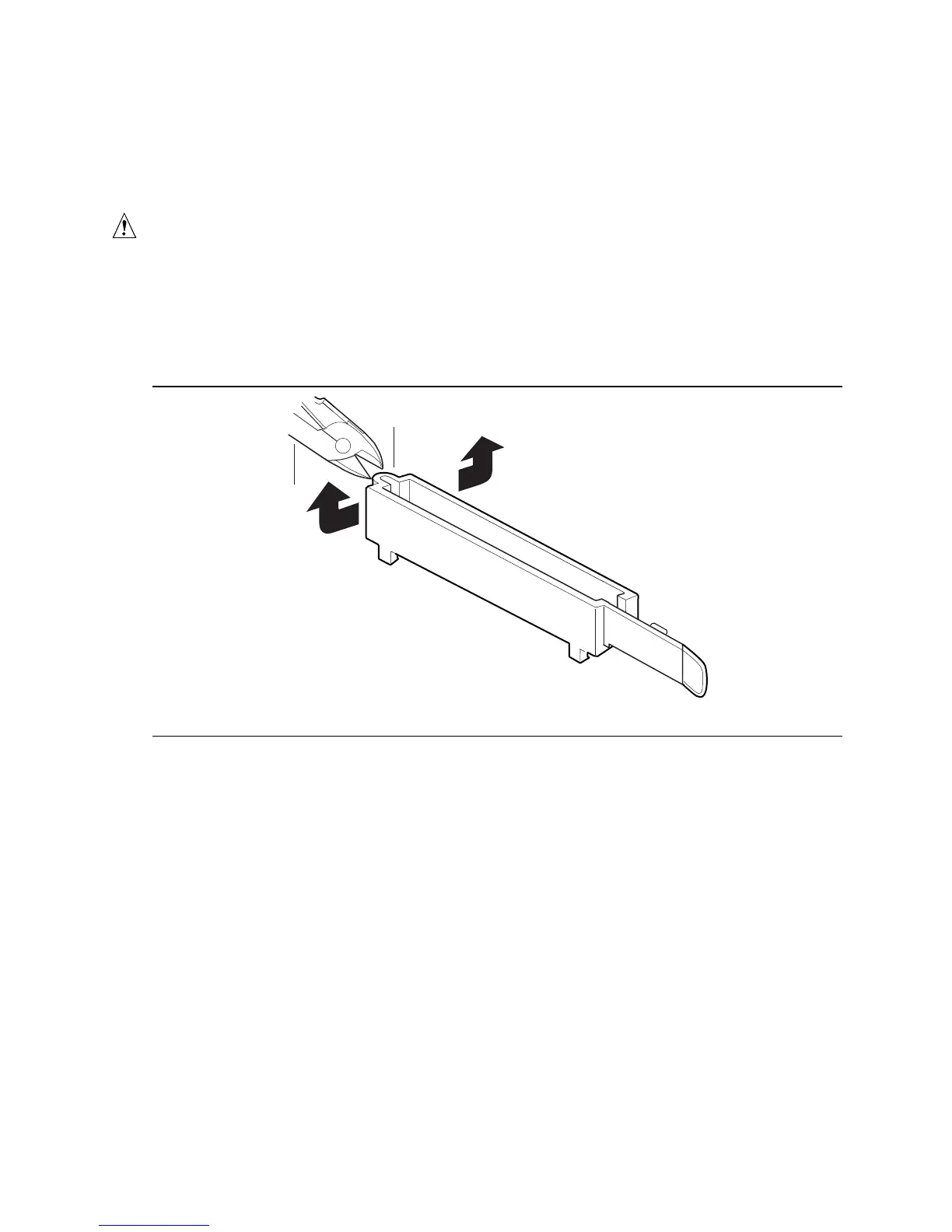

Figure 7. Removing the AGP Card Retention Mechanism
